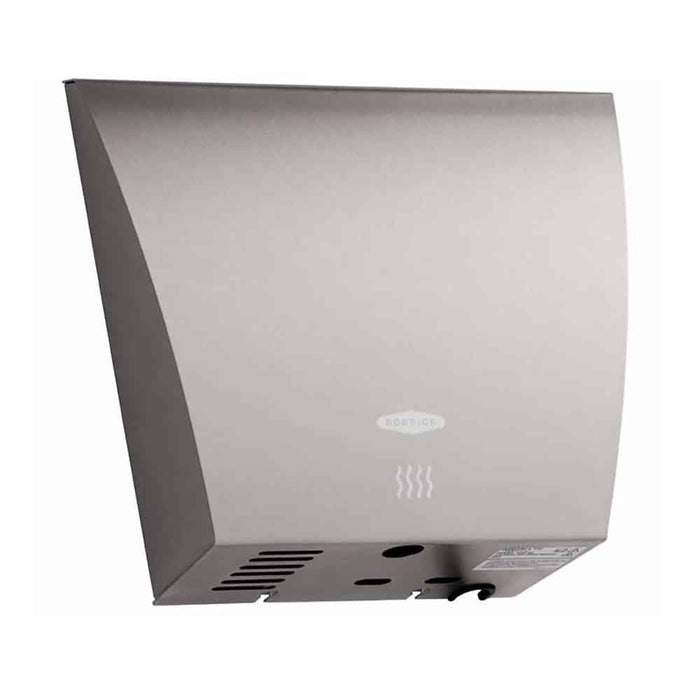

Bobrick (B-7125) | InstaDry™ Surface-Mounted Automatic Hand Dryer, Stainless Steel

by Bobrick
Original price $599.00 - Original price $599.00
Original price
$599.00
$599.00 - $599.00
Current price $599.00
Buy Now

Bobrick B-7125

  • High-speed
  • Save money with annual operating costs as low as $12.60
  • Long lifespan of over 7,500 hours, often lasting more than 10 years in high-traffic
  • Sustainable operation at 200 rated W power allows for multiple units to be installed on one circuit breaker
  • Quick Hand dry time at 12 seconds
  • Universal voltage 110V-240V
  • Satin-finish and stainless steel cover

Wall Preparation

Use the provided template to locate the mounting base on the wall.

For brick, stone, or concrete walls:

  • Drill four 0.315" (8mm) holes to fit wall plugs (0.315" x 1-1/4" or 8mm x 45mm) and screws (#10, 4.8mm x 2" or 50mm long).
  • Refer to the template for wall plug and screw installation details.

For plaster or drywall:

  • Ensure concealed backing complies with local building codes.
  • Secure with four #10 (4.8mm) round-head sheet-metal screws or 3/16" (5mm) toggle bolts (not included).

Provide electrical service from the nearest distribution panel to the mounting base according to local electrical codes.

Wiring Instructions

For 115-Volt Dryers:

  • Connect the ground wire to the terminal marked with a ground symbol.
  • Connect the black (hot) wire to the terminal marked L1.
  • Connect the neutral (white) wire to the terminal marked N.

For 208–240-Volt Dryers:

  • Connect the ground wire to the terminal marked with a ground symbol.
  • Connect the 208–240-volt wires to terminals L1 and L2.

Notes

  • The electronic sensor in automatic dryers detects movement within 6" (150mm) of the air-outlet opening.
  • Avoid installing the dryer in confined areas or close to doorways and high-traffic spaces to prevent accidental activation.
