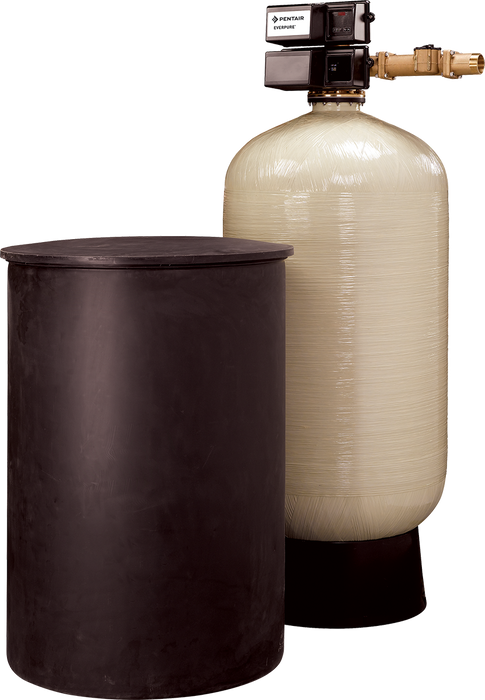

Everpure CES-3900E-300-HWBP (EV998032) Commercial Water Softener System
The Pentair Everpure CES-3900E-300-HWBP delivers high-capacity water softening for commercial and light industrial applications, featuring 3-inch porting, 300,000 grain capacity, meter-initiated regeneration, and continuous flow rates up to 12 GPM to ensure consistent soft water delivery while minimizing salt usage and equipment downtime.
Performance & Specifications
| Feature | Specification |
|---|---|
| Model Number | CES-3900E-300-HWBP |
| Hardness Removal Capacity | 300,000 grains @ 90 lbs salt |
| Resin Volume | 10 cubic feet |
| Continuous Service Flow Rate | 12 GPM minimum @ 15 psi pressure drop |
| Maximum Flow Rate | 96 GPM @ 25 psi pressure drop |
| Inlet/Outlet Connection | 3" MNPT / 3" FNPT |
Key Features
- ✓ High-Capacity Softening: Removes up to 300,000 grains of hardness with efficient salt usage for extended operation between regeneration cycles
- ✓ 3-Inch Commercial Porting: Large inlet and outlet connections support high flow rates up to 96 GPM for demanding commercial applications
- ✓ NXT2 Digital Control System: Advanced electronic meter-initiated regeneration delivers controlled upflow backwash, downflow brining, slow rinse, rapid rinse, and timed brine refill
- ✓ Hard Water Bypass Configuration: Single tank system with optional hard water bypass (HWBP) for uninterrupted service during regeneration cycles
- ✓ Corrosion-Resistant Construction: Fiberglass-wound polyethylene pressure vessel with epoxy resin seal ensures leak-free, long-lasting performance
- ✓ Large Brine Tank Capacity: 1,200 lbs salt storage capacity maximizes time between refills, reducing maintenance requirements
FAQ
Q: What is the difference between the HWBP and NHWB versions of the CES-3900E-300?
A: The HWBP (Hard Water Bypass) version is designed for single tank use and provides uninterrupted service by bypassing untreated water during regeneration. The NHWB (No Hard Water Bypass) version requires multiple units connected in parallel for continuous soft water delivery and uses on-board communication cables to link units via CAT 5 cable.
Q: What operating pressure range is required for the CES-3900E-300-HWBP?
A: The system requires water pressure between 25 and 125 PSI (1.7 - 8.6 bar). If daytime water pressure exceeds 80 PSI, a pressure regulator must be installed to prevent exceeding the 125 PSI maximum rating, or the warranty may be voided.
Q: How often does the system need to regenerate and how much salt does it use?
A: Regeneration frequency depends on water hardness and usage volume. The electronic meter initiates regeneration based on actual water consumption rather than a timer, which minimizes salt and water waste. The system uses 90 lbs of salt per regeneration cycle for optimal 300,000 grain capacity.
What's Included
- CES-3900E-300-HWBP control valve with NXT2 digital controller
- 24" x 72" fiberglass mineral tank
- 30" x 48" polyethylene brine tank with 1,200 lbs salt capacity
- Distributor assembly with upper collector
- 10 resin bags (125 lbs per bag)
- 2 gravel bags for mineral tank base
- Electronic meter and connecting cable
- Installation and operation manual
Note: Only use this system with water that is known to be safe. If the water quality is uncertain, ensure it is disinfected before or after filtration.
