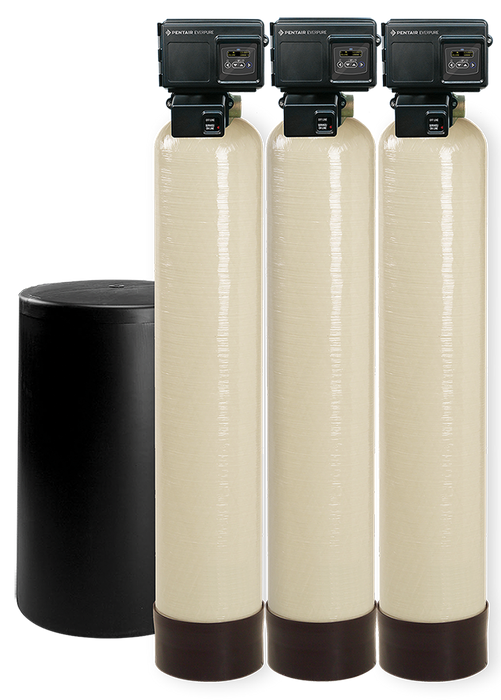

Everpure CES-2900E-150-TP Triplex Parallel Water Softener System
The Pentair Everpure CES-2900E-150-TP is a commercial-grade triplex parallel water softener designed for high-demand foodservice and light industrial applications, delivering continuous soft water at flow rates up to 159 GPM while maximizing efficiency through meter-initiated regeneration that minimizes salt and water consumption.
Performance & Specifications
| Feature | Specification |
|---|---|
| Model Number | CES-2900E-150-TP |
| Hardness Removal Capacity | 150,000 grains per tank (125,000 grains @ 45 lbs salt) |
| Resin Volume | 5 cubic feet per tank (15 cu. ft. total) |
| Flow Rate | 159 GPM continuous service @ 25 psi / 206 GPM @ 25 psi ΔP |
| Inlet/Outlet Connection | 2" MNPT inlet / 2" FNPT outlet |
| Operating Pressure | 25-125 PSI (1.7-8.6 bar) |
| Water Temperature Range | 40-100°F (4.4-37.8°C) |
| Salt Storage Capacity | 1,200 lbs (544 kg) |
Key Features
- ✓ Triplex Parallel Configuration: Three independent softener tanks ensure continuous soft water supply with no interruptions during regeneration cycles
- ✓ High-Capacity Performance: Delivers 150,000 grains of hardness removal per tank with continuous flow rates up to 159 GPM for demanding commercial operations
- ✓ NXT2 Programmable Controllers: Advanced electronic meter-initiated regeneration with on-board communication cables linking multiple valves via CAT 5 cable for optimized salt and water efficiency
- ✓ Corrosion-Resistant Construction: Fiberglass-reinforced polyethylene pressure vessels with NSF-listed liners are continuously wound with fiberglass and sealed with epoxy resin for leak-free, long-lasting durability
- ✓ Large Brine Tank Capacity: 1,200 lb salt storage maximizes time between refills, reducing maintenance requirements and operational downtime
- ✓ Hydraulically Balanced Pistons: Time-tested design independently pilots service flow and regeneration for reliable, efficient operation in commercial environments
FAQ
Q: What is the advantage of a triplex parallel configuration over single or duplex systems?
A: The triplex parallel design ensures uninterrupted soft water delivery by allowing two tanks to remain in service while one regenerates, making it ideal for 24/7 operations requiring continuous high-flow soft water without service interruptions.
Q: How often will the brine tank need to be refilled with salt?
A: The CES-2900E-150-TP features a 1,200 lb capacity brine tank that significantly extends the time between salt refills. Frequency depends on water hardness and usage volume, but the meter-initiated regeneration system optimizes salt consumption by regenerating only when necessary based on actual water usage.
Q: What electrical requirements does this system have?
A: The system requires a standard 115 VAC/60 Hz/1 Phase non-shock electrical connection to power the NXT2 programmable controllers and meter-initiated regeneration system.
What's Included
- Three (3) fiberglass-reinforced mineral tanks (18" x 65")
- Three (3) NXT2 programmable control valves with meter assemblies
- One (1) large capacity brine tank (30" x 48")
- Fifteen (15) bags of high-capacity cation resin (50 lbs per tank)
- Six (6) bags of support gravel media
- Distributor assemblies with laterals or strainers
- Control valve mounting hardware and O-rings
- CAT 5 communication cables for controller linking
- Installation, operation, and maintenance guide
Note: Only use this system with water that is known to be safe. If the water quality is uncertain, ensure it is disinfected before or after filtration.
