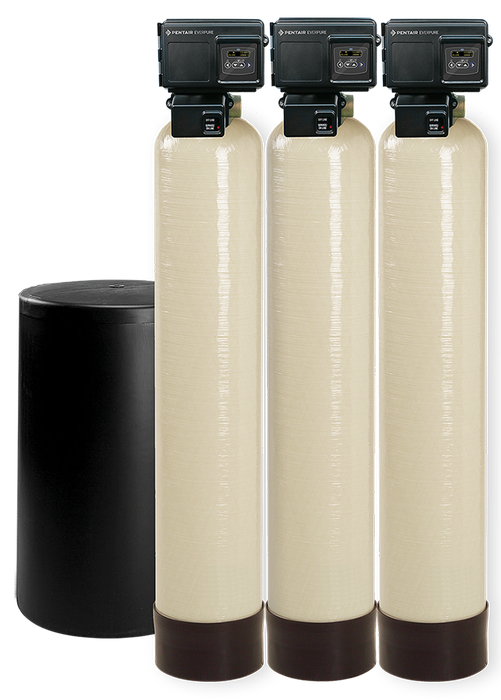

Everpure CES-2900E-210-TP (EV998069) Triplex Parallel Water Softener
The Pentair Everpure CES-2900E-210-TP is a high-capacity triplex parallel water softener designed for commercial and light industrial applications, featuring 2-inch porting, 210,000 grains hardness removal per tank, and continuous flow rates up to 171 GPM with meter-initiated regeneration to minimize salt and water usage while providing uninterrupted soft water supply.
Performance & Specifications
| Feature | Specification |
|---|---|
| Model Number | CES-2900E-210-TP |
| Hardness Removal Capacity | 210,000 grains per tank (175,000 grains @ 63 lbs salt) |
| Flow Rate | 171 GPM continuous @ 15 psi / 222 GPM @ 25 psi |
| Resin Volume | 7 cubic feet per tank (21 cu. ft. total) |
| Configuration | Triplex parallel tank system |
| Inlet/Outlet Connections | 2" MNPT / 2" FNPT |
Key Features
- ✓ Triplex Parallel Configuration: Three independent tanks ensure continuous soft water supply and higher flow rates without interruption during regeneration cycles
- ✓ NXT2 Programmable Controllers: Advanced meter-initiated regeneration with on-board communication cables linking multiple valves via CAT 5 cable for optimized efficiency
- ✓ High-Capacity Brine Tank: 2,200 lbs salt storage capacity maximizes time between refills, reducing maintenance requirements and labor costs
- ✓ Fiberglass-Reinforced Vessels: Corrosion-resistant pressure vessels with polyethylene shells continuously wound with fiberglass and sealed with epoxy resin for leak-free, long-lasting performance
- ✓ Hydraulically Balanced Pistons: Time-tested design independently pilots service flow and regeneration for reliable, consistent operation
- ✓ Commercial-Grade Performance: 2-inch porting handles demanding applications including laundry, boiler systems, foodservice, and hospitality operations
FAQ
Q: How does the triplex parallel configuration ensure continuous soft water supply?
A: The CES-2900E-210-TP features three independent softener tanks that operate in parallel. While one or two tanks regenerate, the remaining tank(s) continue providing soft water, ensuring uninterrupted service for demanding commercial applications that require 24/7 operation.
Q: What pressure requirements are needed for proper operation?
A: The system requires operating water pressure between 25-125 PSI (1.7-8.6 bar). If daytime pressure exceeds 80 PSI, a pressure regulator must be installed to prevent exceeding the 125 PSI maximum rating and voiding the warranty. Water temperature should be maintained between 40-100°F (4-38°C).
Q: How often does the brine tank need to be refilled with salt?
A: With a 2,200 lbs salt storage capacity and 63 lbs salt usage per regeneration cycle, the frequency depends on water hardness and usage volume. The large capacity brine tank significantly extends time between refills compared to smaller systems, reducing maintenance visits and operational costs.
What's Included
- Three (3) fiberglass-reinforced resin tanks (21" x 62" each)
- Three (3) NXT2 programmable control valves with meter bodies
- One (1) high-capacity brine tank (39" x 48", 2,200 lbs capacity)
- Twenty-one (21) bags of premium water softening resin
- Twelve (12) bags of gravel support media (80 lbs per tank)
- Three (3) distributor assemblies with tubes
- Control valve accessories and communication cables
- Installation, operation, and maintenance guide
Note: Only use this system with water that is known to be safe. If the water quality is uncertain, ensure it is disinfected before or after filtration.
