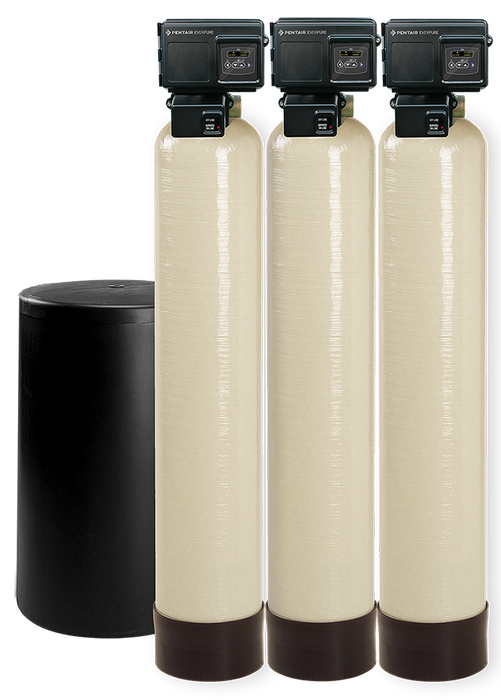

Everpure CES-2900E-300-TP (EV998070) Triplex Parallel Water Softener
The Pentair Everpure CES-2900E-300-TP delivers continuous soft water for large commercial and light industrial applications, featuring a triplex parallel tank configuration with 300,000 grain capacity per tank, 2-inch porting, and meter-initiated regeneration that ensures uninterrupted service while minimizing salt and water consumption.
Performance & Specifications
| Feature | Specification |
|---|---|
| Model Number | CES-2900E-300-TP |
| Hardness Removal Capacity | 300,000 grains per tank @ 90 lbs salt |
| Resin Volume | 10 cubic feet per tank (30 cu. ft. total) |
| Continuous Service Flow Rate | 185 GPM at 15 psi pressure drop |
| Maximum Intermittent Flow Rate | 239 GPM at 25 psi pressure drop |
| Inlet/Outlet Connection | 2" MNPT / 2" FNPT |
| Operating Pressure | 25-125 PSI (1.7-8.6 bar) |
| Water Temperature Range | 40-100°F (4.4-37.8°C) |
Key Features
- ✓ Triplex Parallel Configuration: Three independent tanks ensure continuous soft water supply with no service interruption during regeneration cycles
- ✓ High-Capacity Performance: Removes up to 250,000 grains of hardness at rated capacity with 185 GPM continuous flow for demanding commercial applications
- ✓ NXT2 Programmable Controllers: Advanced electronic meter-initiated regeneration minimizes salt and water usage while linking multiple valves via CAT 5 communication cables
- ✓ Corrosion-Resistant Construction: Fiberglass-reinforced polyethylene pressure vessels with continuous filament winding and epoxy resin sealing ensure leak-free, long-lasting durability
- ✓ Large Capacity Brine Storage: 2,200 lb salt capacity maximizes time between refills, reducing maintenance requirements for busy operations
- ✓ Commercial-Grade Porting: 2-inch connections support high flow rates ideal for laundry facilities, foodservice operations, boiler systems, and hospitality applications
FAQ
Q: How does the triplex parallel configuration ensure continuous soft water availability?
A: The CES-2900E-300-TP features three independent softening tanks that operate in parallel. When one tank enters regeneration mode, the other two continue providing soft water, ensuring uninterrupted service for critical commercial operations that require 24/7 soft water availability.
Q: What maintenance is required for this system?
A: Primary maintenance involves regularly refilling the brine tank with salt (2,200 lb capacity) and routine inspections of the control valves. The meter-initiated regeneration system automatically manages regeneration cycles based on actual water usage, optimizing efficiency and minimizing manual intervention.
Q: Is this system suitable for commercial foodservice and hospitality applications?
A: Yes, the CES-2900E-300-TP is specifically designed for commercial and light industrial applications including foodservice, hospitality, laundry operations, water heater protection, and boiler scale control. Its high flow capacity and continuous operation make it ideal for high-demand environments.
What's Included
- Three (3) fiberglass-reinforced resin tanks (24" x 72" each)
- Three (3) NXT2 programmable control valves with meter initiation
- One (1) 30" x 48" brine tank with 2,200 lb salt capacity
- Three (3) distributor assemblies with appropriate laterals/strainers
- Resin media bags (30 bags total, 125 lbs per tank)
- Gravel media bags (15 bags total)
- CAT 5 communication cables for controller linking
- Installation, operation, and maintenance guide
- Programming guide for NXT2 controllers
Note: Only use this system with water that is known to be safe. If the water quality is uncertain, ensure it is disinfected before or after filtration.
