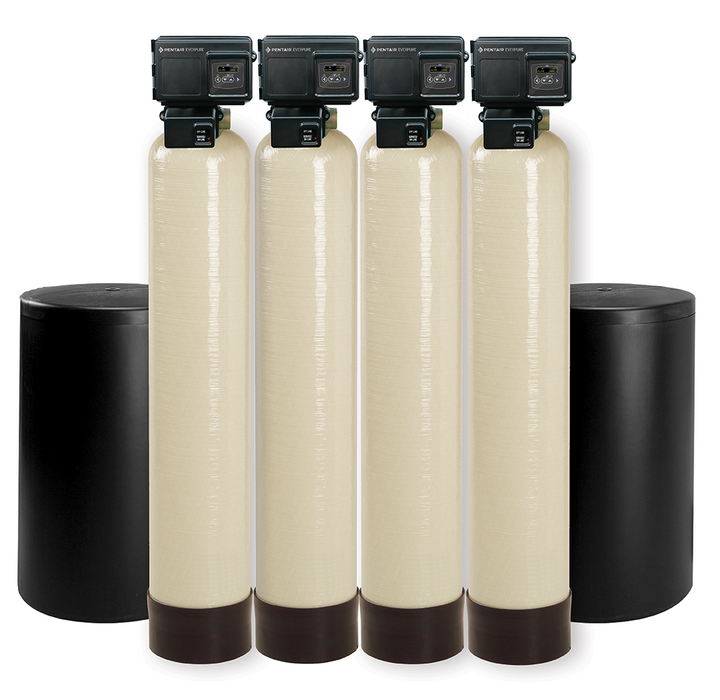

Everpure CES-2900E-210-QP (EV998073) Quadplex Parallel Water Softener System
The Pentair Everpure CES-2900E-210-QP is a commercial-grade quadplex parallel water softening system designed for high-demand commercial and light industrial applications, delivering continuous soft water at flow rates up to 228 GPM with a capacity of 210,000 grains per tank to minimize equipment downtime and protect valuable machinery from scale buildup.
Performance & Specifications
| Feature | Specification |
|---|---|
| Model Number | CES-2900E-210-QP |
| Hardness Removal Capacity | 210,000 grains per tank (175,000 @ 63 lbs salt) |
| Resin Volume | 7 cubic feet per tank |
| Continuous Service Flow Rate | 228 GPM @ 15 psi / 296 GPM @ 25 psi |
| Minimum Flow Rate | 5 GPM |
| Inlet/Outlet Connection | 2" MNPT / 2" FNPT |
| Operating Pressure | 25-125 PSI (1.7-8.6 bar) |
| Water Temperature Range | 40-100°F (4.4-37.8°C) |
| Salt Storage Capacity | 2,200 lbs (998 kg) |
| System Configuration | Quadplex (4 tanks) parallel |
Key Features
- ✓ Quadplex Parallel Configuration: Four-tank system ensures continuous soft water supply with no interruption during regeneration cycles, ideal for high-demand commercial operations
- ✓ High-Capacity Flow Rate: Delivers up to 228 GPM continuous service flow to support multiple equipment connections and large-scale commercial applications
- ✓ NXT2 Programmable Controllers: Advanced electronic meter-initiated regeneration with on-board communication cables linking multiple valves via CAT 5, minimizing salt and water usage
- ✓ Corrosion-Resistant Pressure Vessels: Fiberglass-reinforced polyethylene shell with continuous fiberglass weaving and epoxy resin seal ensures leak-free, long-lasting performance
- ✓ Large Capacity Brine Tanks: 2,200-pound salt storage capacity maximizes time between refills, reducing maintenance requirements and operational costs
- ✓ 2-Inch Porting System: Large connection sizes accommodate high flow demands for commercial laundry, boiler protection, cooling towers, hospitality, and light industrial applications
FAQ
Q: What type of applications is the CES-2900E-210-QP best suited for?
A: The CES-2900E-210-QP is designed for commercial and light industrial applications including laundry facilities, water heater scale prevention, boiler systems, cooling towers, hospitality operations, grocery stores, and general housekeeping where continuous high-volume soft water is required.
Q: How does the quadplex parallel configuration ensure continuous soft water supply?
A: The quadplex system uses four independent resin tanks that operate in parallel. When one tank enters regeneration mode, the other three tanks continue to provide soft water, ensuring uninterrupted service 24/7 for high-demand commercial operations.
Q: What maintenance is required for this water softening system?
A: Primary maintenance involves regularly refilling the brine tanks with salt (2,200 lbs capacity per system allows extended time between refills). The NXT2 controllers use meter-initiated regeneration to optimize salt and water usage, and the system should be installed with proper drain connections and periodic inspection of control valves and resin tanks.
What's Included
- Four (4) fiberglass-reinforced mineral tanks (21" x 62")
- Four (4) NXT2 programmable control valves with CAT 5 communication cables
- Two (2) large capacity brine tanks (30" x 48")
- Distributor assemblies with hub and lateral design
- 28 bags of premium ion exchange resin (80 lbs per tank)
- 16 bags of gravel support media
- Control valve accessories and installation hardware
Note: Only use this system with water that is known to be safe. If the water quality is uncertain, ensure it is disinfected before or after filtration.
