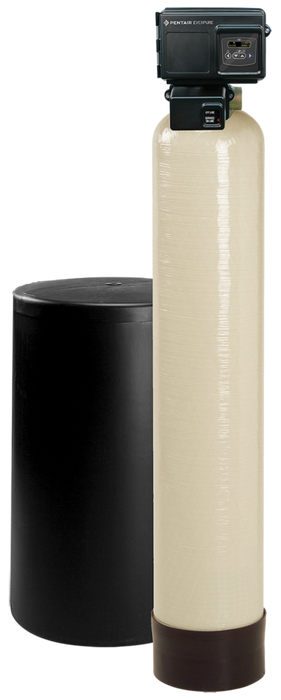

Everpure CES-2900E-300 (EV998425) Commercial Water Softener System
The Pentair Everpure CES-2900E-300 delivers exceptional hardness removal capacity of up to 300,000 grains at continuous flow rates reaching 62 gallons per minute, making it the ideal solution for demanding commercial and light industrial applications where equipment protection and consistent water quality are paramount.
Performance & Specifications
| Feature | Specification |
|---|---|
| Model Number | CES-2900E-300 |
| Hardness Removal Capacity | 300,000 grains (Maximum), 250,000 grains @ 90 lbs salt (Rated) |
| Resin Volume | 10 cubic feet |
| Flow Rate | 62 GPM continuous @ 25 psi, 80 GPM intermittent maximum |
| Inlet/Outlet Connection | 2" FNPT |
| Operating Pressure | 25-125 PSI (1.7-8.6 bar) |
| Water Temperature Range | 40-100°F (4.4-37.8°C) |
| Salt Storage Capacity | 1,200 lbs (544 kg) |
Key Features
- ✓ High-Capacity Performance: Removes up to 300,000 grains of hardness with 10 cubic feet of resin volume for extended operation between regeneration cycles
- ✓ 2-Inch Porting Design: Delivers exceptional flow rates up to 62 GPM continuous service, ideal for high-demand commercial warewashing, laundry, and boiler applications
- ✓ Meter-Initiated Regeneration: Advanced NXT2 programmable controller monitors actual water usage to minimize salt and water consumption while maximizing efficiency
- ✓ Large Capacity Brine Tank: 1,200-pound salt storage capacity maximizes time between refills, reducing maintenance requirements and labor costs
- ✓ Durable Fiberglass Construction: Pressure vessels feature polyethylene shells wound continuously with fiberglass weaving and sealed with epoxy resin for corrosion-resistant, leak-free performance
- ✓ Advanced 5-Cycle Control: Fully adjustable regeneration process includes controlled upflow backwash, downflow brining and slow rinse, rapid rinse, timed brine refill, and downflow service for optimal performance
FAQ
Q: What regeneration cycle does the CES-2900E-300 use, and how does it minimize water and salt consumption?
A: The system utilizes meter-initiated regeneration with an NXT2 programmable controller that monitors actual water usage rather than operating on a fixed timer schedule. This ensures regeneration occurs only when needed based on hardness removal capacity, significantly reducing salt and water consumption while maintaining optimal softening performance.
Q: What size mineral tank and dimensions should I plan for when installing this system?
A: The CES-2900E-300 features a 24" x 72" mineral tank with overall system dimensions of 89"H x 64"W x 30"D. The operating weight is approximately 3,290 lbs when fully loaded with salt and water, so ensure your installation location can support this weight on a smooth, level surface.
Q: What applications is the CES-2900E-300 best suited for in commercial environments?
A: This high-capacity system excels in demanding commercial and light industrial applications including cold water-fed warewashing equipment, commercial laundry operations (linen and uniform services), boiler scale control, water heater protection, and general housekeeping where consistent soft water delivery at high flow rates is essential for equipment longevity and performance.
What's Included
- CES-2900E-300 control valve with NXT2 programmable controller
- 24" x 72" fiberglass-reinforced mineral tank with NSF-listed liner
- 30" x 48" brine tank with 1,200 lb salt storage capacity
- Distributor assembly (hub and lateral design)
- 10 bags of softening resin (125 lbs per tank)
- 5 bags of gravel support media
- Installation hardware and accessories
Note: Only use this system with water that is known to be safe. If the water quality is uncertain, ensure it is disinfected before or after filtration.
