T&S EC-3102-VF05 | ChekPoint Elec Faucet, Deck Mount, Single Hole Spout, AC/DC Module, 0.5 GPM VR Outlet

T&S EC-3102-VF05 | ChekPoint Elec Faucet, Deck Mount, Single Hole Spout, AC/DC Module, 0.5 GPM VR Outlet

by Plumbers Paradise
$497.47 - $497.47
$497.47
$497.47 - $497.47
$497.47

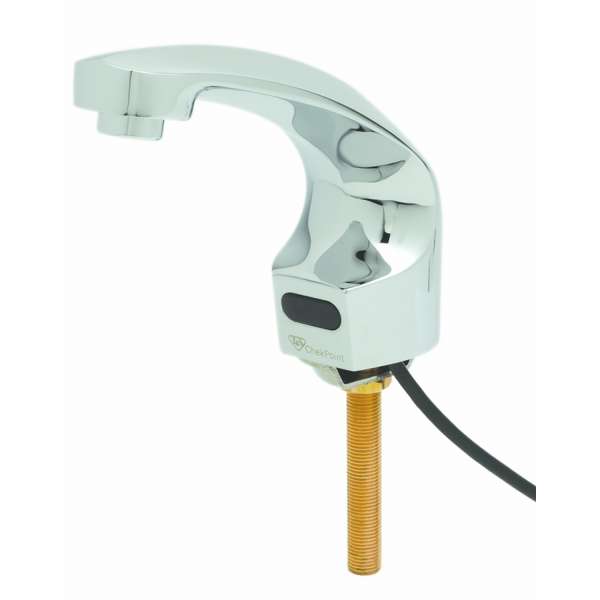

Single hole deck mount electronic sensor faucet with polished chrome plated brass body with integral spout, 0.5 GPM vandal resistant non- aerated spray device, AC/DC control module with internal flow control setting switches, temperature control mixing valve with check valves and 18" flexible stainless steel supply hoses with 3/8" compression connections. Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9,NSF 372 and UL 1951. Meets ADA ANSI/ICC A117.1 requirements.
Buy Now
  • Body: Single Hole
  • Body Mount: Deck
  • Brand: ChekPoint
  • Feature: Check Valve
  • Finish: Polished Chrome
  • Inlet: 3/8 Compression
  • Material: Brass Construction
  • Nozzle: Cast Spout
  • Nozzle Flow: 0.5 GPM (1.89 L/min)
  • Nozzle Outlet Type: Non-Aerated Spray Device
  • Nozzle Outlet Type: Vandal Resistant
  • Pressure Max: 125 psi (8.62 bar)
  • Pressure Min: 20 psi (1.38 bar)
  • Temperature Max: 140 F (60℃)
  • Temperature Min: 40 F (4.44℃)
  • Nozzle Flow: 0.5 GPM (1.89 L/min)
  • Pressure Max: 125 psi (8.62 bar)
  • Pressure Min: 20 psi (1.38 bar)
  • Temperature Max: 140 F (60℃)
  • Temperature Min: 40 F (4.44℃)
  • California Prop #65 Warning
  • Country Of Origin: China

Resources:

Spec Drawings/Parts Explosion

Submittal

Revit (BIM)

Warranty: Three Year (Limited)

Installation Instructions:

ChekPoint BDE Sensor Faucets (Current Design)

ChekPoint BDE Sensor Faucets (Prior Design)
