Elkay EZS8L Wall Mount ADA Compliant Water Cooler

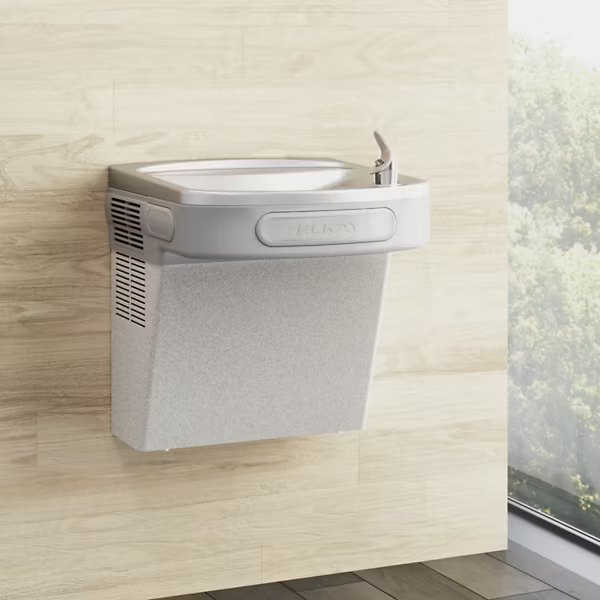

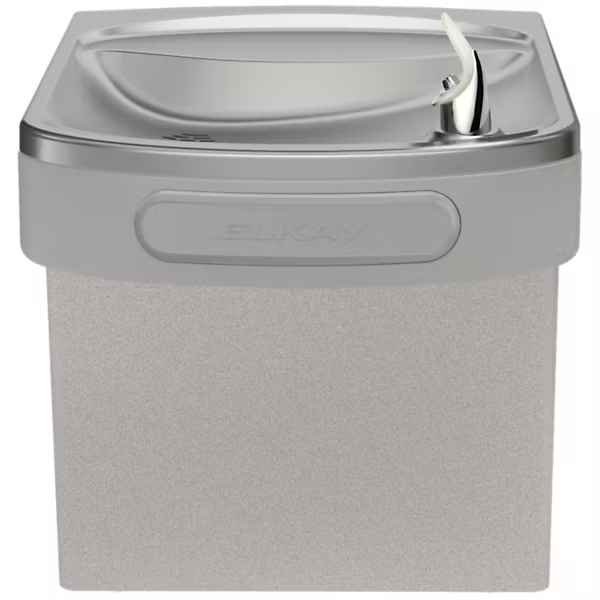

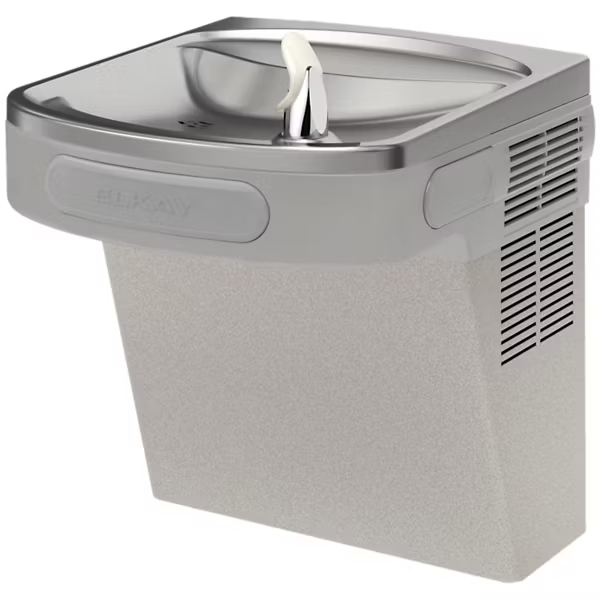

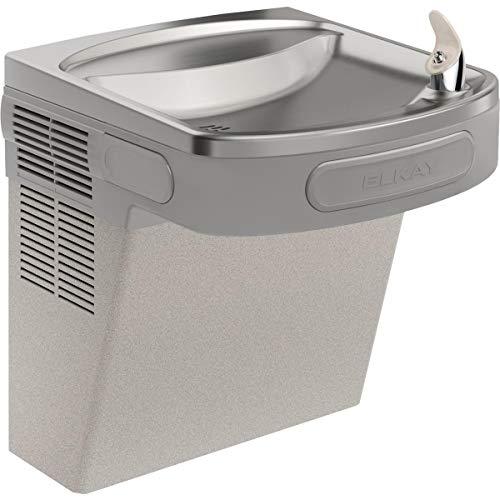

The Elkay EZS8L is a premium wall-mounted water cooler designed for accessibility and reliable performance in commercial and institutional settings. This ADA compliant unit features a durable light gray granite finish that complements any interior design while providing excellent chilling capacity of 8.0 gallons per hour. With its electronic front pushbar activation and Flexi-Guard® Safety Bubbler, the EZS8L offers safe, convenient access to refreshing cold water for all users.
Performance & Specifications
| Feature | Specification | Benefit |
|---|---|---|
| Chilling Capacity | 8.0 GPH (gallons per hour) | ✓ Delivers consistently cold 50°F water even during peak usage periods |
| Activation Method | Electronic Front Bubbler Pushbar | ✓ Easy-to-use operation that meets accessibility requirements |
| Dimensions | 18-3/8" x 19" x 19-13/16" | ✓ Compact design that conserves wall space |
How It Works: Refrigerated Cooling System
Stage 1: Water Intake
Function: Incoming water enters the cooling system
Benefit: Provides consistent water flow for immediate cooling
Stage 2: Cooling Process
Function: Hermetically-sealed reciprocating compressor with copper tube and aluminum fin condenser
Benefit: Efficiently cools water to refreshing 50°F temperature
Stage 3: Dispensing
Function: Electronic pushbar activates water flow through the Flexi-Guard® Safety Bubbler
Benefit: Provides safe, sanitary drinking experience with splash-resistant stream
Key Features
- ✓ ADA Compliant Design: Meets accessibility requirements when properly installed
- ✓ Flexi-Guard® Safety Bubbler: Sanitary, flexible guard to prevent mouth contact with bubbler
- ✓ Premium Cooling System: Combination tube-tank type with continuous copper tubing and EPS foam insulation
- ✓ Light Gray Granite Finish: Durable, attractive exterior that resists fingerprints and smudges
- ✓ Adjustable Temperature Control: Factory preset thermostat that can be adjusted for altitude requirements
Certifications & Compliance
| Certification | Benefit |
|---|---|
| ADA & ICC A117.1 | Ensures accessibility for all users when properly installed |
| ASME A112.19.3/CSA B45.4 | Meets stringent plumbing fixture standards |
| NSF/ANSI 61 & 372 | Certified lead-free for safe drinking water |
| UL 399 | Listed to UL standards for drinking water coolers |
What's Included
- 1 × Elkay EZS8L Water Cooler
- Installation hardware
- Installation and operation manual
Note: The Elkay EZS8L comes with a 5-year limited warranty on the refrigeration system of the unit. Electrical components and water system are warranted for 12 months from date of installation. Warranty pertains to drinking water applications only.
