Elkay LZS8WSSK | Wall Mount Drinking Fountain with Bottle Filling Station, Refrigerated

by Elkay
Original price $1,593.99 - Original price $1,593.99
Original price
$1,593.99
$1,593.99 - $1,593.99
Current price $1,593.99

Hands-free refrigerated bottle filler and ADA cooler with lead-reducing filtration.

Buy Now

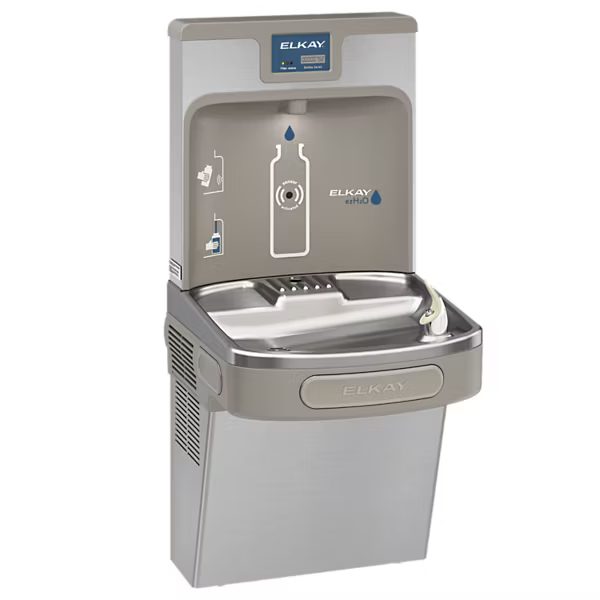

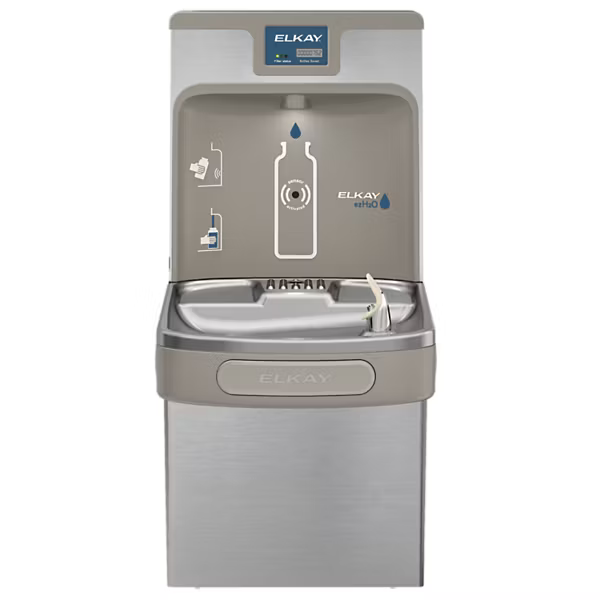

Elkay LZS8WSSK ezH2O® Bottle Filling Station & Single ADA Cooler with Quick Filter Change

The Elkay LZS8WSSK ezH2O® Bottle Filling Station combines a refrigerated ADA-compliant water cooler with a state-of-the-art bottle filling station. This innovative system delivers filtered, chilled water for both traditional drinking fountain use and rapid bottle filling, helping reduce plastic bottle waste while providing clean, great-tasting water. With its stainless steel construction, hands-free operation, and advanced filtration, the LZS8WSSK represents the perfect blend of functionality, sustainability, and modern design.

Performance

Feature Specification Benefit
Chilling Capacity 8.0 GPH at 50°F ✓ Consistent cold water even in high-use environments
Filtration System WaterSentry® Plus (3,000 gallons) ✓ Reduces lead, cysts, and other contaminants
Fill Rate 1.1 GPM ✓ Fast bottle filling with minimal splash

How It Works: Advanced Hydration Technology

Stage 1: Superior Filtration

Function: WaterSentry® Plus filter reduces lead, cysts, and other contaminants

Benefit: Provides cleaner, better-tasting water that's healthier for users

Stage 2: Efficient Cooling

Function: Hermetically-sealed compressor and fan-cooled condenser chill water to 50°F

Benefit: Delivers refreshing cold water even during periods of heavy use

Stage 3: Intuitive Dispensing

Function: Electronic sensor for hands-free bottle filling; front and side pushbars for bubbler

Benefit: Multiple dispensing options provide versatility for different user preferences

Key Features

  • Green Ticker™: Displays count of plastic bottles saved from waste, encouraging sustainability
  • Visual Filter Monitor: LED indicator changes from green to yellow to red, signaling when filter replacement is needed

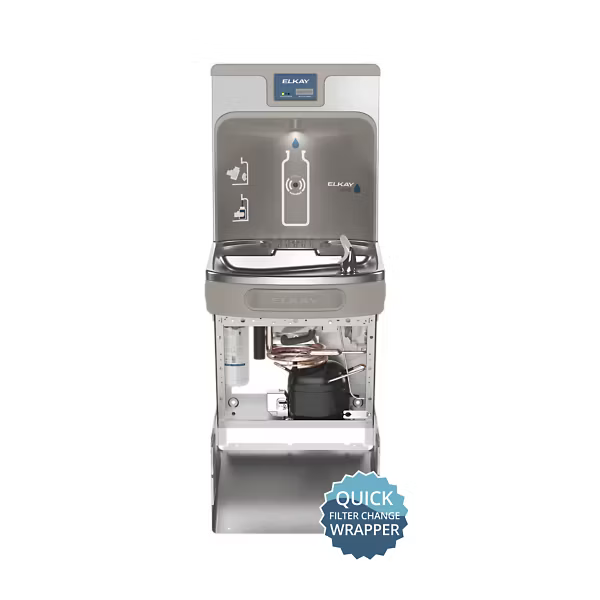

  • Quick Filter Change: Innovative wrapper design allows filter changes in under a minute without tools
  • Automatic Filter Status Reset: FillSafe™ technology recognizes new filter installation and resets indicator
  • Antimicrobial Protection: Key components manufactured with antimicrobial materials to inhibit bacteria growth
  • Laminar Flow: Provides clean fill with minimal splash and reduces water waste
  • Real Drain: Eliminates standing water in the basin for improved hygiene
  • LED Lighting: Low-energy light illuminates the fill area, making it easier to use in dimly lit environments
  • ADA Compliant: Designed to meet accessibility requirements when properly installed
  • Flexi-Guard® Safety Bubbler: Flexible antimicrobial mouthpiece guard protects from impact

Comparison to Standard Water Coolers

Feature Elkay LZS8WSSK Standard Water Cooler
Bottle Filling Dedicated hands-free station with 1.1 GPM fill rate Not available or requires manual positioning
Filtration Advanced lead & cyst reduction with status indicator Basic or no filtration; no status monitoring
Sustainability Impact Green Ticker™ tracks plastic bottles saved No tracking of environmental impact
User Experience LED-lit fill area with visual cues and bottle counter Basic functionality with no visual feedback
Maintenance Quick filter change technology with automatic reset Often requires tools and manual reset procedures

Certification & Standards

  • ADA & ICC A117.1: Complies with accessibility requirements when properly installed
  • ASME A112.19.3/CSA B45.4: Meets stainless steel plumbing fixture standards
  • NSF/ANSI 42, 53, 61 & 401: Certified for contaminant reduction including lead
  • NSF/ANSI 372: Certified lead-free for drinking water system components
  • UL 399: Listed for safety as a drinking water cooler
  • CAN/CSA C22.2 No. 120: Meets Canadian electrical safety standards

What's Included

  • Elkay LZS8WSSK ezH2O® Bottle Filling Station & Water Cooler
  • WaterSentry® Plus 3000-gallon filter (pre-installed)
  • Installation hardware and instructions
  • 5-year limited warranty on refrigeration system
  • 1-year limited warranty on electrical components and water system

Note: This product includes a 5-year limited warranty on the refrigeration system of the unit. Electrical components and water system are warranted for 12 months from date of installation. Warranty pertains to drinking water applications only. Non-drinking water applications are not covered under warranty.

Flow Rate: 1.1 GPM laminar flow

Type: ezH2O Bottle Filling Station & Single ADA Cooler

Features: Refrigerated, Lead Reduction, Quick Filter Change

Chilling Capacity: 8.0 GPH (gallons per hour)

Dimensions: 18-3/8" x 19" x 39-7/16"

Power: 115V/60Hz, 5 Full Load Amps, 370 Rated Watts

Finish: Stainless Steel

Bubbler Style: Flexi-Guard Safety Bubbler

Activation: Electronic Bottle Filler Sensor with Electronic Front and Side Bubbler Pushbar

Filter Type: WaterSentry Lead + Microplastics Filter

Special Features: Antimicrobial, Green Ticker, Hands Free, Laminar Flow, Real Drain, Visual Filter Monitor

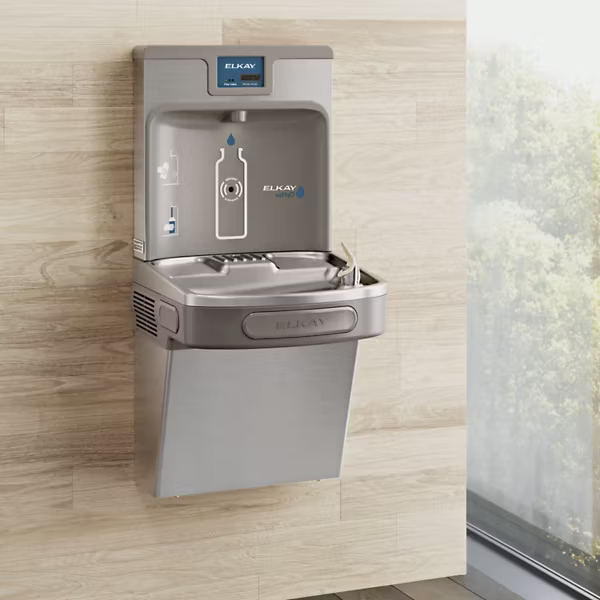

Installation: Wall Mount (On Wall), Indoor applications

Number of Stations: 1

Cooling System: Hermetically-sealed reciprocating compressor, R-134a refrigerant

Compliance: ADA & ICC A117.1, ASME A112.19.3/CSA B45.4, NSF/ANSI 42, 53, 61, 372, 401, UL 399

Warranty: 5 Year Limited on refrigeration system, 12 months on electrical components and water system

INSTALLATION

Mount bracket to wall. Hang cooler on bracket. Connect water supply to filter inlet. Attach bottle filler to wall with mounting plate. Connect water line and wiring. Insert filter and turn clockwise. Turn on water and check for leaks. Plug into GFCI outlet. Keep 6" space around cooler vents. Maximum water pressure: 105 PSI.

MAINTENANCE

Replace filter yearly or when light indicates. To replace: turn off water, unplug unit, twist old filter out, twist new filter in. Clean with mild soap and soft cloth. Never use steel pads or harsh cleaners on stainless steel. Check drain regularly. Temperature preset to 50°F. For problems, see manual troubleshooting guide or contact professional.
