A. O. Smith 100109295

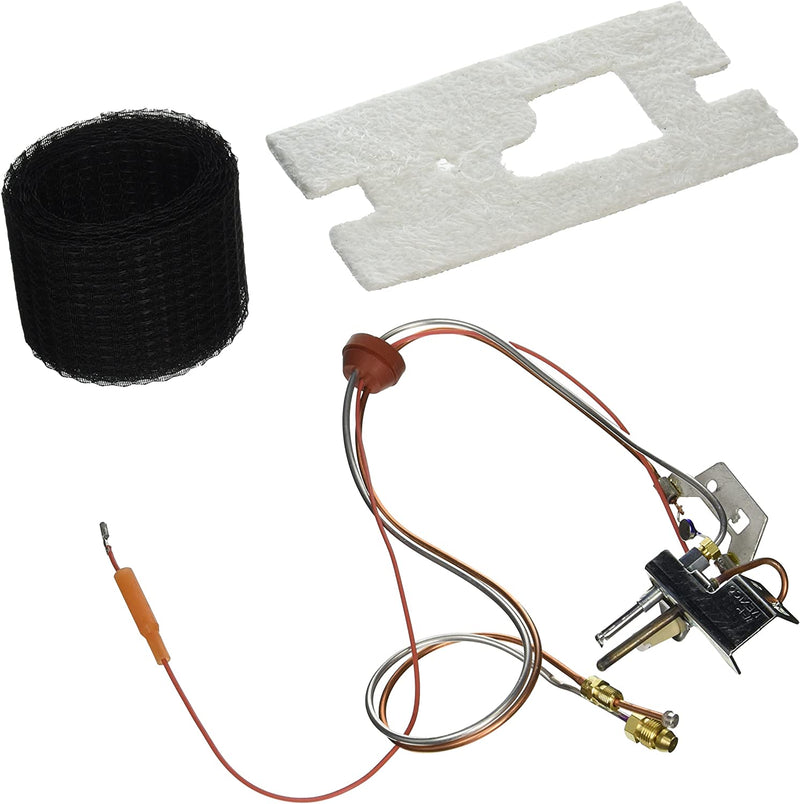

A.O. Smith (100109295) | NG Natural Gas Pilot Assembly

by A. O. Smith
$135.00 - $135.00
$135.00
$135.00 - $135.00
$135.00

The A.O. Smith NG Natural Gas Pilot Assembly is an OEM repair part. It is included in the original A.O. Smith manufacturer packaging and is designed to fit and function properly.
Buy Now

The A.O. Smith 100109295 NG Natural Gas Pilot Assembly is a high-quality replacement part designed to ensure the efficient operation of natural gas water heaters. Its durable construction and precise engineering make it a dependable choice for maintaining water heater performance.

Benefits:

  • Efficient Operation: Ensures consistent ignition and reliable performance for natural gas water heaters.

  • Durable Construction: Made from premium materials for long-lasting use and stability.

  • Easy Compatibility: Designed to fit a wide range of A.O. Smith natural gas water heater models.

  • Simple Installation: Includes all necessary components for straightforward replacement.

  • Enhanced Safety: Provides stable and secure ignition to maintain safe water heater operation.

This pilot assembly is ideal for homeowners and professionals looking for a reliable solution to keep their water heaters running smoothly.

Can I Install a Natural Gas Pilot Assembly Myself?

Material: Made from durable alloy steel, aluminum, and copper for long-lasting performance.

Components Included: Features a 22" gas pilot tube, 22.5" thermocouple, and 21.5" ignitor for efficient operation.

Compatibility: Designed to fit a wide range of A.O. Smith natural gas water heater models.

Temperature Setting: Operates at a temperature setting of 190°F for optimal performance.

Weight: Lightweight design, approximately 0.17 kilograms, for easy handling and installation.

Turn Off Power and Gas Supply: Ensure the water heater is powered off and the gas supply is shut off for safety.

Remove the Old Pilot Assembly: Carefully disconnect the existing pilot assembly, including the thermocouple and ignitor.

Install the New Pilot Assembly: Position the new pilot assembly and connect the gas pilot tube, thermocouple, and ignitor securely.

Reconnect Gas Supply: Restore the gas supply and check for leaks using a soap solution or gas leak detector.

Test the Pilot Assembly: Light the pilot and verify proper operation before turning the water heater back on.

For detailed instructions, refer to the manufacturer's installation guide or consult a professional technician for assistance.
