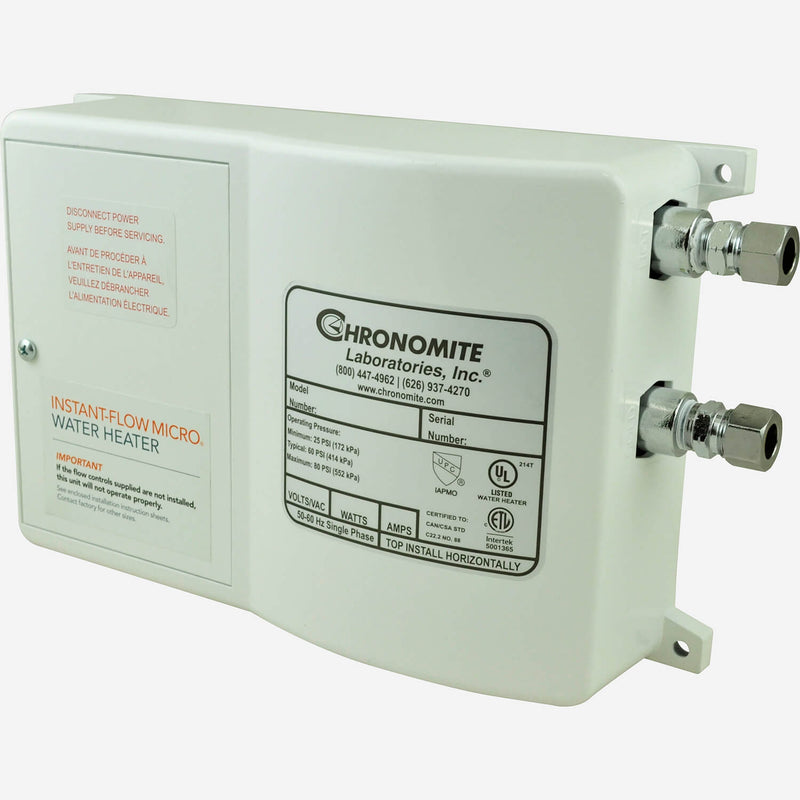

Chronomite M Series Front

Chronomite M-40/277 | Instant-Flow® Micro® Point-of-Use Thermostatic Tankless Water Heater – Standard Flow

by Chronomite
$329.47 - $329.47
$329.47
$329.47 - $329.47
$329.47

The Chronomite M-40/277 is a compact, energy-efficient point-of-use tankless water heater that delivers instant hot water with reliable thermostatic control.

Ships with standard adjustable (ADJ) option. To request a preset factory temperature between 104°F and 160°F, please email us after placing your order.
Buy Now

Model: M-40/277

  • Volts: 277

  • KW: 11.08

  • Amps/Ø: 40

  • 90°C Wire: 8 AWG

  • Temp Rise at 0.65 GPM: 90°F+

  • Temp Rise at 1.00 GPM: 76°F

  • Temp Rise at 1.50 GPM: 50°F

  • Temp Rise at 2.00 GPM: 38°F

Ideal Applications

  • Manual, metering, or sensor hand washing faucets
  • Bar and utility sink

Features and Benefits

  • 0.35 gallon (1.3 liter) per minute low activation
  • 0.65 gallon (2.5 liter) per minute standard activation
  • Unlimited hot water
  • 99% energy efficient
  • Maintains consistent water temperature with digital microprocessor technology
  • Meets ADA, UL, UPC and IAPMO, ETL, CSA
  • Eliminates scalding
  • Preset factory temperature of 104° to 160°F (40° to 71°C) with no mixing valve required
  • Optional field adjustment temperature 104° to 125°F (40° to 52°C) - Ships with standard (ADJ) option. To request a preset factory temperature between 104°F and 160°F, please email us immediately after placing your order.
  • Compact 6-1/4 height  x 9-5/8 x 2-3/4” (159 x 244 x 70 mm) size
  • Made in America

Activation Flow Rate

0.65 GPM

Kilowatt Output

2.40 to 11.08

Dimensions

6-1/4"H x 9-5/8" x 2-3/4”

Installation:
A licensed plumber is required for installation per your local regulatory requirements.

  • Before beginning, turn off the breaker and disconnect the electrical supply to the area.
  • Shut off the water supply to the fixture.
  • Double-check that everything has been turned off prior to proceeding.

For optimal performance, Chronomite electric tankless water heaters should always be installed within 18 inches of the point of use.

Maintenance:
Periodically inspect the supply lines, connections, and heater for any moisture, corrosion, or other preventable problems.

Installation

Submittal

Warranty
