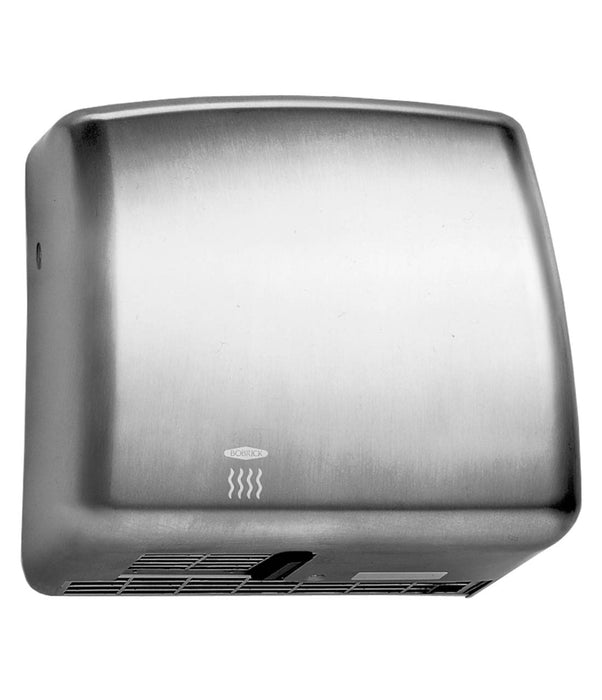

Bobrick (B-715) | Elan™, Surface-Mounted Hand Dryer (International Only)

Specs for

Color Finish: Stainless Steel

Voltage: B-715 115V AC, 15 Amp, 60 Hz, 1/25 Watts, cULus Listed.

Activation: Automatic

Mounting: Surface

Cover: One-piece, deep drawn, 20-gauge (0.9mm), type-304 stainless steel with satin finish. Cover is secured to mounting base with three flat-head stainless steel screws.

Mounting Base and Fan Housing:  5/64″ (2mm) thick fire-retardant molded plastic with high-gloss finish. Plastic air-inlet grille fits into bottom of mounting base. Plastic air-outlet grille is secured between fan housing and mounting base.

Motor: Maintenance-free capacitor run, external rotor motor with sealed ball bearings at both ends of drive shaft. Equipped with an automatic thermal-overload switch.

Fan: Dynamically balanced 5-15/64″ (133mm) diameter rotor centrifugal fan with multiple metallic vanes. Directs air flow from heating element at 100 cfm, mixes air to provide uniform temperature.

Heating Element: Coiled nickel-chrome heating element is protected by an automatic thermal-overload switch and thermal fuse. Heating element, which is located on inlet side of fan, heats air without hot spots — inaccessible to vandals.

Electronic Control: Infrared sensor automatically turns dryer on when hands are held under air-outlet opening and across path of sensor. Remove hands from path of sensor and dryer stops. Electronic sensor has automatic shutoff approximately two minutes after dryer turns on if an inanimate object, such as tape or chewing gum, is placed across sensor lens. After inanimate object is removed,
electronic sensor automatically resets itself and dryer operates normally.

Wall Preparation: Secure mounting base on wall using template provided. For masonry walls, provide four #10 expansion shields or anchors and secure with four #10 (M4.8) sheet-metal screws (not furnished). For plaster or dry wall construction, provide concealed backing to comply with local building codes, then secure unit with four #10 (M4.8) round-head sheet-metal screws or 3/16″ (5mm)
toggle bolts (not furnished). Provide electrical service from nearest distribution panel to dryer mounting base in compliance with local electrical codes.

Wiring Instructions: Connect ground wire to ground terminal marked , the black or hot wire to terminal marked L1, and neutral or white wire to terminal marked N. A Dedicated line is required for each 115‑volt installation.

Notes: Electronic sensor in Elan Dryer will pick up movement within 4″ (100mm) of air-outlet nozzle. Use caution when choosing location for Elan Dryer in confined areas. Consider proximity to doorways and other traffic areas. Bobrick automatic hand dryers should be installed 15″ (380mm) above any projection or horizontal surface which may interfere with the operation of the automatic sensor.
