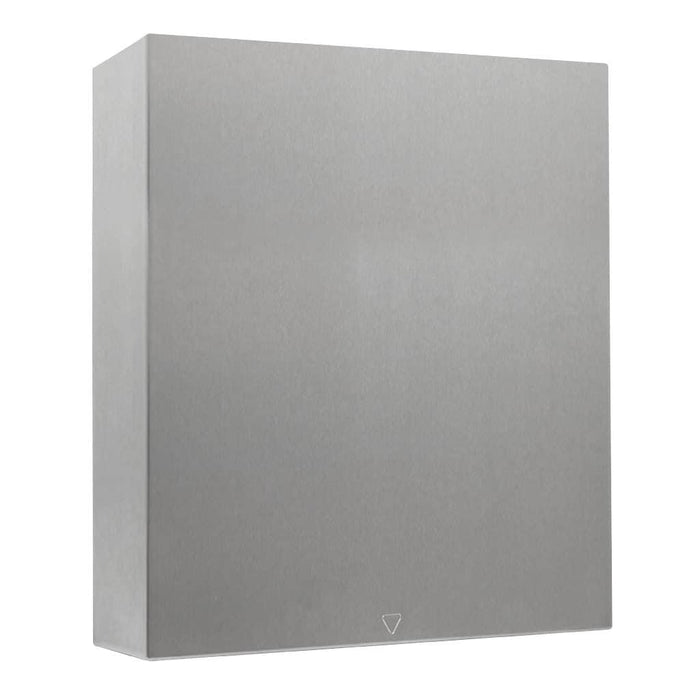

Bobrick (B-7179) | Fino Collection, Surface-Mounted Automatic Hand Dryer, Stainless Steel
Purchase the Bobrick B-7179 with the lowest price and fastest shipping.
- High speed hand dryer
- Power Consumption of 200 Watts
- ADA Compliant with less than 4" protrusion from wall
- Fast Drying Speed of 10-12 seconds
- Automatic, hands-free operation
Specs for Bobrick B-7179
Color Finish: Stainless Steel
Voltage: 110V–240V, 0.8–1.9 AMP, 50/60 Hz, 202–213 Watts, cULus Listed and CE marked.
Rated Power: 0.2 kW
Compliance: ADA compliant.
Cover: 18-8, Type-304 stainless steel 18-gauge, 1.2mm thick with #4 satin-finish vertical grain. Air-inlet is vandalresistant. Cover projects no more than 4″ (100mm) from wall and is secured to mounting base with two recessed socket button head cap screws.
Mounting Base: 1.5mm SECC punched and formed.
Motor: Brushless 24Vdc with built in thermal protection. Ball bearings. Operates at 40,000 RPM.
Blower: Backward curved radial bladed impeller in polycarbonate housing.
Electronic Control: Infrared sensor automatically turns dryer on when hands are held under air-outlet opening and across path of sensor. Remove hands from path of sensor and dryer stops. Electronic sensor has automatic shutoff approximately 85 seconds after dryer turns on if an inanimate object is placed across air-outlet opening. After inanimate object is removed, electronic sensor automatically resets itself and dryer operates normally.
Wall preparation: Locate mounting base on wall using template provided. For brick, stone, and concrete walls drill four 0.315″ (8mm) holes to suit provided wall plugs 0.315″ x 1-1/4″ (8 x 45mm) and screws # 10 x 2″ (4.8 x 50mm) long. See template for wall plug and screw installation details. For plaster or dry wall construction, provide concealed backing to comply with local building codes and secure with four #10 (4.8) round-head sheet-metal screws or 3/16″ (5mm) toggle bolts (not furnished). Provide electrical service from nearest distribution panel to dryer mounting base in conformance with local electrical codes.
Dryer Wiring Instructions: For 115-Volt Dryers — Connect ground wire to ground terminal marked , the black or hot wire to terminal marked L1, and neutral or white wire to terminal marked N. For 208–240-Volt Dryers — Connect ground wire to ground terminal marked and the 208- or 240-volt wires to terminal marked L1 and L2. This is a class 1 product and requires grounding.
Notes: Electronic sensor in Automatic dryers will pick up movement within 6″ (150mm) of the air-outlet opening. Use caution when choosing location for Automatic dryers in confined areas. Consider proximity to doorways and other traffic areas. Bobrick automatic hand dryers should be installed at least 19-3/4″ (500mm) above any projection or horizontal surface which may interfere with the operation of the automatic sensor.
