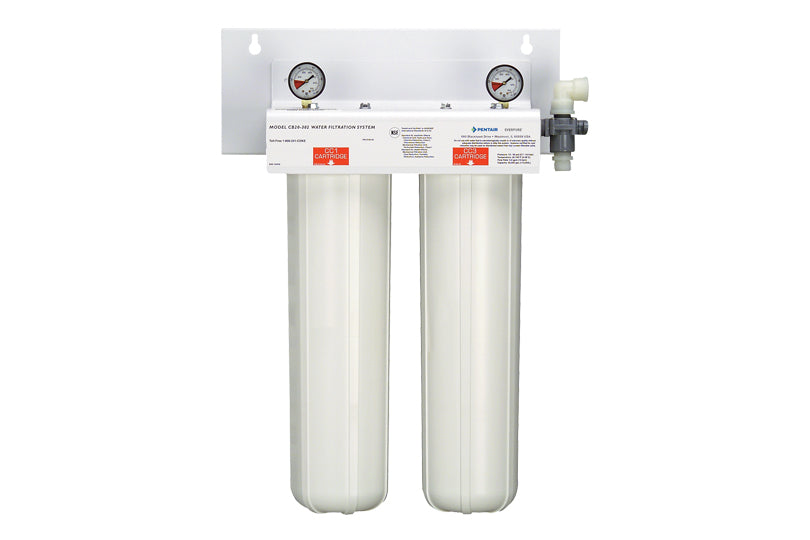

Everpure CB20-302E (EV910032) Water Filtration System
The Everpure CB20-302E is a high-flow, high-capacity dual-cartridge water filtration system designed specifically for demanding foodservice applications requiring chloramine reduction, delivering 20,000 gallons of filtered water at up to 5 GPM while reducing sediment, chlorine, chloramines, cysts, and off-tastes to protect equipment and ensure beverage quality.
Performance & Specifications
| Feature | Specification |
|---|---|
| Model Number | CB20-302E (EV910032) |
| Filtration Capacity | 20,000 gallons (75,700 L) |
| Number of Filters | 2 (CC1E and CC3E cartridges) |
| Flow Rate | Maximum 5 GPM (19 LPM) |
| Contaminants Filtered | Chloramine, chlorine, sediment (0.5 micron), Cryptosporidium, Giardia cysts, off-tastes and odors |
Key Features
- ā Dual Cartridge System: CC1E radial flow GAC cartridge and CC3E cyst reduction cartridge work together for comprehensive water treatment
- ā Chloramine Reduction: Specifically designed to reduce chloramines in addition to chlorine for improved taste and equipment protection
- ā Precoat Filtration Technology: Exclusive precoat filtration provides superior chlorine taste and odor reduction while mechanically filtering particles as small as 0.5 micron
- ā Dual Pressure Gauge Monitoring: Integral inlet and outlet pressure gauges monitor system performance and indicate when cartridge replacement is needed
- ā Cyst Reduction: CC3E cartridge reduces Cryptosporidium and Giardia cysts by mechanical means for enhanced water safety
- ā NSF Certified: Certified under NSF/ANSI Standards 42 and 53 for contaminant reduction performance and material safety
FAQ
Q: How often should the cartridges be replaced in the CB20-302E system?
A: Cartridges should be changed on a regular six-month preventative maintenance program, when capacity reaches 20,000 gallons, when flow becomes too slow, or when the pressure difference between inlet and outlet gauges is greater than or equal to 20 psi.
Q: What is the proper installation sequence for the two cartridges?
A: First install the CC1E cartridge and flush at full flow for five minutes, then install the CC3E cartridge and flush the complete system for an additional 10 minutes before placing into service.
Q: Can this system be used for coffee and ice machine applications?
A: Yes, the CB20-302E is specifically designed for high-flow fountain and ice machine applications. For coffee and ice applications, it's recommended to add a scale reduction feeder at the outlet of the system to protect equipment from mineral buildup.
What's Included
- High pressure housing with head and pressure relief valve
- CC1E extended service cartridge (radial flow GAC)
- CC3E cyst reduction cartridge
- Mounting bracket and bowl
- Integral inlet and outlet pressure gauges
Note: Only use this system with water that is known to be safe. If the water quality is uncertain, ensure it is disinfected before or after filtration.
