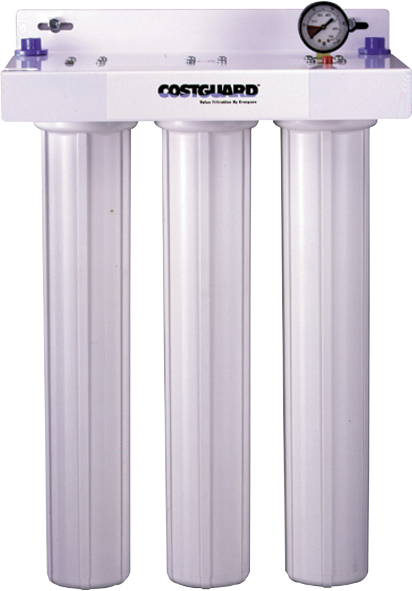

Everpure CGS-55 (EV910050) Triple Series-Parallel Housing System
The Everpure CGS-55 (EV910050) is a professional-grade triple bowl housing system designed for foodservice applications, featuring a series-parallel configuration that combines prefiltration with dual parallel carbon filtration for enhanced water quality and extended cartridge life.
Performance & Specifications
| Feature | Specification |
|---|---|
| Model Number | CGS-55 (EV910050) |
| Number of Filters | 3 (20" drop-in cartridges) |
| Flow Rate | Maximum 4 GPM (15.1 LPM) |
| Filtration Capacity | Varies by cartridge used |
Key Features
- ✓ Series-Parallel Configuration: First bowl provides prefiltration in series with two parallel carbon cartridges of the same type for optimized performance
- ✓ Durable Polypropylene Construction: Built with excellent chemical resistance for long-lasting reliability in demanding foodservice environments
- ✓ Pressure Relief Button: Safely relieves water pressure during cartridge changes, making maintenance quick and convenient
- ✓ Low Profile Design: 20" Slim Line triple bowl housing saves valuable space while accommodating standard drop-in cartridges
- ✓ Built-In Pressure Gauge: Integrated water pressure gauge allows for easy monitoring of system performance and filter status
- ✓ Complete Installation Package: Ships fully assembled with wall mounting bracket and hardware for fast, hassle-free setup
FAQ
Q: What type of cartridges are compatible with the CGS-55 housing system?
A: The CGS-55 accepts any standard 20" drop-in filter cartridges. The system is designed to use one prefiltration cartridge in the first bowl, followed by two identical carbon cartridges in parallel configuration in the second and third bowls. Cartridges are sold separately.
Q: How often should I replace the filter cartridges in the EV910050?
A: Everpure recommends changing cartridges on a regular six-month preventative maintenance program or when the rated capacity is reached, whichever comes first. You should also replace cartridges when you notice a significant decrease in water pressure.
Q: What are the operating requirements for this housing system?
A: The CGS-55 operates at water pressures between 30-125 psi (2.1-8.6 bar, non-shock) and water temperatures from 40-100°F (4.4-38°C). It features 1/2" inlet and outlet connections and requires no electrical connection.
What's Included
- EV910050 CGS-55 Triple bowl housing system (fully assembled)
- Integrated water pressure gauge
- Wall mounting bracket and installation hardware
- O-rings for bowl sealing
Note: Only use this system with water that is known to be safe. If the water quality is uncertain, ensure it is disinfected before or after filtration.
