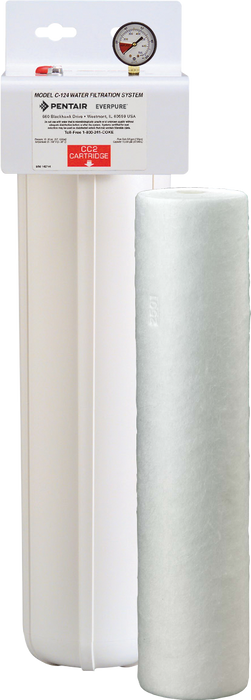

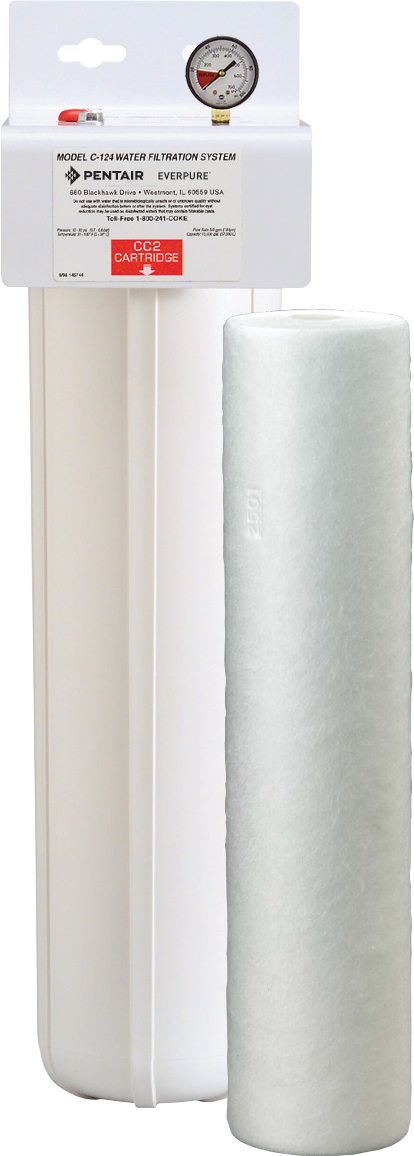

Everpure CB20-124 W/EC204 (EV910056) Water Filtration System
The Pentair Everpure CB20-124 W/EC204 (EV910056) is a high-performance water filtration system designed specifically for foodservice applications, combining granular activated carbon filtration with scale inhibition technology to deliver consistent, quality water while protecting valuable equipment from sediment, chlorine, chloramines, and scale buildup.
Performance & Specifications
| Feature | Specification |
|---|---|
| Model Number | CB20-124 W/EC204 |
| Flow Rate | Maximum 5 GPM (19 LPM) |
| Contaminants Filtered | Chloramines, Chlorine, Sediment, Taste & Odor, Scale |
| Pressure Requirements | 20-100 PSI (1.4-6.9 bar), non-shock |
| Temperature Range | 35-100°F (2-38°C) |
Key Features
- ✓ High-Flow Filtration: Delivers up to 5 GPM to meet demanding foodservice applications including ice machines and beverage dispensers
- ✓ Chloramine Reduction: Advanced granular activated carbon effectively reduces chloramines, chlorine taste and odor for improved beverage quality
- ✓ Scale Inhibition Technology: Integrated EC204 scale inhibitor protects equipment from harmful mineral buildup and extends service life
- ✓ Pressure Monitoring: Built-in outlet pressure gauge provides visual monitoring of system performance and filter status
- ✓ Quick-Change Design: Easy cartridge replacement with modular construction minimizes downtime and maintenance effort
- ✓ NSF Certified: Meets NSF/ANSI Standards 42 & 53 for material safety and contaminant reduction performance
FAQ
Q: What applications is the CB20-124 W/EC204 system best suited for?
A: This system is ideal for fountain beverage dispensers, ice machines, and low-volume coffee brewers where both filtration and scale control are needed. The 5 GPM flow rate and scale inhibition make it particularly effective for protecting ice-making equipment.
Q: How often should the filter cartridges be replaced?
A: Replace cartridges every six months as part of a preventative maintenance program, or when the pressure differential between inlet and outlet exceeds 20 PSI. Always flush the new cartridge for 15 minutes after installation.
Q: Can this system be installed on hot water lines?
A: No, the CB20-124 W/EC204 must only be installed on cold water lines with temperatures between 35-100°F (2-38°C). Installation on hot water lines will damage the system and void the warranty.
What's Included
- CB20-124 high-pressure housing with head, mounting bracket and bowl
- EC204 scale inhibitor cartridge
- Integral outlet pressure gauge
- Mounting hardware and bracket
Note: Only use this system with water that is known to be safe. If the water quality is uncertain, ensure it is disinfected before or after filtration.
