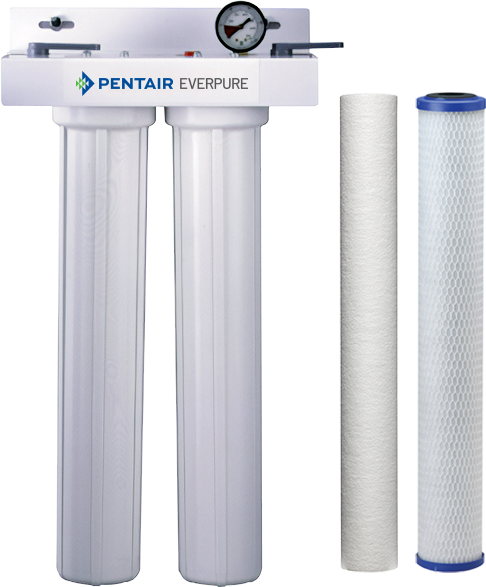

Everpure CGSYS-22C5S (EV910124) Dual Series Filter System
The Everpure CGSYS-22C5S is a full-featured dual series filtration system engineered for foodservice applications, combining sediment and carbon block filtration to deliver consistent water quality by reducing chlorine, taste and odor, scale, and particulates down to 5 microns for coffee machines, fountain beverages, and ice equipment.
Performance & Specifications
| Feature | Specification |
|---|---|
| Model Number | CGSYS-22C5S |
| Filtration Capacity | 12,000 gallons (45,400 L) |
| Number of Filters | 2 (Dual Series Configuration) |
| Flow Rate | 3.34 GPM (7.6 Lpm) Maximum |
| Contaminants Filtered | Sediment, Chlorine, Scale, Taste & Odor, Dirt, Rust Particles |
Key Features
- ✓ Dual Series Configuration: Features both a 5-micron carbon block cartridge (EC210) and a 10-micron sediment cartridge (CG5-20S) working in series for comprehensive water treatment
- ✓ 20" Low Profile Design: Compact Slim Line dual housing manufactured from durable polypropylene with excellent chemical resistance for long-lasting performance
- ✓ High Porosity Cartridge Design: Prevents filter plugging before absorption capacity is reached, maximizing the lifespan of each cartridge and reducing maintenance costs
- ✓ Ready to Install: System arrives fully assembled with wall mounting bracket, hardware, and integrated pressure gauge for fast installation and easy monitoring
- ✓ Pressure Relief Button: Equipped with a convenient pressure relief feature that safely releases water pressure during cartridge changes, making maintenance quick and hassle-free
- ✓ Extended Equipment Life: The sediment pre-filter captures larger dirt and rust particles, protecting the carbon block cartridge and extending both filter life and downstream equipment longevity
FAQ
Q: How often should I replace the cartridges in the CGSYS-22C5S system?
A: Cartridges should be replaced on a regular six-month preventative maintenance schedule or when the rated capacity of 12,000 gallons is reached, whichever comes first. Additionally, replace cartridges if you notice a significant decrease in water pressure.
Q: What is the difference between the two cartridges included in this dual system?
A: The system includes an EC210 carbon block cartridge (5 micron) that reduces scale, chlorine, taste, and odor while filtering fine particles, and a CG5-20S sediment cartridge (10 micron) that captures larger dirt and rust particles first, extending the life of the carbon block filter.
Q: What are the pressure requirements for proper operation of this system?
A: The CGSYS-22C5S requires water pressure between 30-125 psi (2.1-8.6 bar) non-shock and operates optimally at temperatures between 40-100°F (4.4-38°C). The integrated pressure gauge allows for easy monitoring of system pressure.
What's Included
- CGS-22 20" Dual Series Housing (EV9100-22)
- EC210 Carbon Block Cartridge (EV9534-26)
- CG5-20S Sediment Cartridge (EV9108-27)
- Wall mounting bracket and hardware
- Integrated water pressure gauge
Note: Only use this system with water that is known to be safe. If the water quality is uncertain, ensure it is disinfected before or after filtration.
