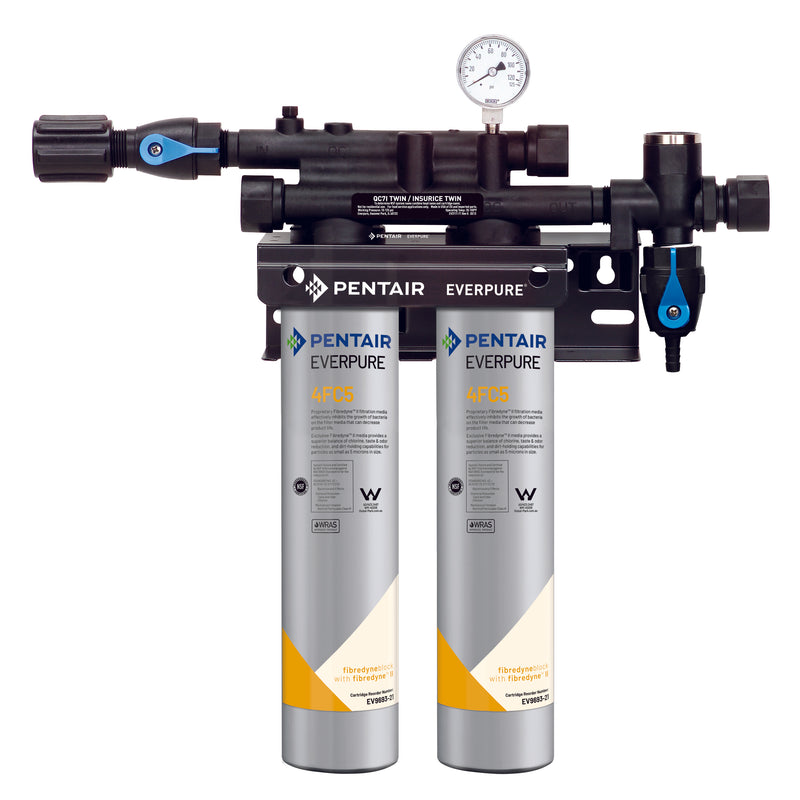

Everpure QC7I Twin 4FC5 (EV920222) Water Filtration System
The Everpure QC7I Twin 4FC5 (EV920222) is a high-performance dual-cartridge water filtration system designed specifically for fountain beverage applications, delivering 30,000 gallons of filtered water at 5 GPM while reducing chlorine taste and odor, and filtering particulates down to 5 microns with NSF/ANSI Standard 42 certification.
Performance & Specifications
| Feature | Specification |
|---|---|
| Model Number | QC7I Twin 4FC5 (EV920222) |
| Filtration Capacity | 30,000 gallons (113,562 liters) |
| Number of Filters | 2 (Twin Configuration) |
| Flow Rate | 5 GPM (18.93 LPM) |
| Micron Rating | 5 microns |
| Contaminants Filtered | Chlorine taste & odor, sediment, particulates (Class III) |
Key Features
- ā Fibredyne II Bacteriostatic Media: Inhibits bacteria growth within the filter to prevent media fouling and maintain optimal performance throughout the cartridge life
- ā Quick-Change Cartridge Design: Simple and sanitary cartridge replacement system allows for fast servicing without the need for tools or extensive downtime
- ā Built-In Monitoring System: Integrated inlet shutoff valve, flush valve, and pressure gauges simplify maintenance and allow for real-time performance monitoring
- ā NSF/ANSI Standard 42 Certified: Independently certified for bacteriostatic effects, chlorine taste and odor reduction, and nominal particulate Class III filtration
- ā High-Capacity Dual Filtration: Twin cartridge configuration delivers balanced 5 GPM flow rate for high-demand fountain beverage applications
- ā Equipment Protection: 5-micron mechanical filtration protects beverage equipment from sediment and particulates, reducing maintenance costs and extending equipment lifespan
FAQ
Q: How often should the filter cartridges in the QC7I Twin 4FC5 be replaced?
A: It is recommended that filter cartridges be replaced every six months on a regular scheduled program, or when the 30,000-gallon capacity is reached, or if water pressure or flow becomes inadequate. Cartridges should always be replaced at least once per year regardless of usage.
Q: What is the maximum water pressure the EV920222 system can handle?
A: The system operates within a pressure range of 10-125 psi (0.7-8.6 bar). When feed water pressure exceeds 85 psi, a pressure reducing valve is recommended. The system should not be exposed to shock pressure exceeding 125 psi.
Q: Can this system be used for applications other than fountain beverages?
A: While the QC7I Twin 4FC5 is specifically designed and optimized for fountain beverage applications, it can also be used for cold beverage applications where chlorine taste and odor reduction along with particulate filtration is required at a 5 GPM flow rate.
What's Included
- QC7I Twin 4FC5 system head with inlet shutoff valve and flush valve
- Two (2) 4FC5 replacement cartridges (EV9693-21)
- Integrated pressure gauges for inlet and outlet monitoring
- Mounting bracket and hardware
- Installation, operation, and maintenance guide
Note: Only use this system with water that is known to be safe. If the water quality is uncertain, ensure it is disinfected before or after filtration.
