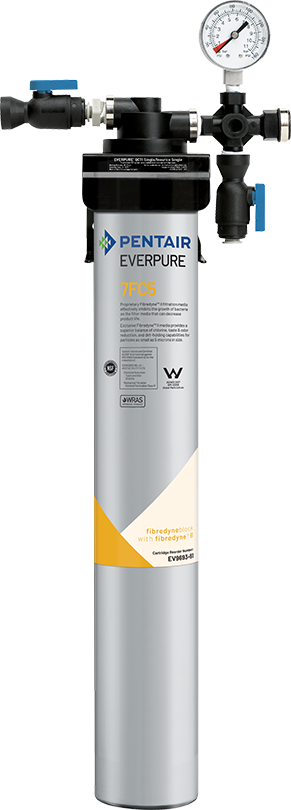

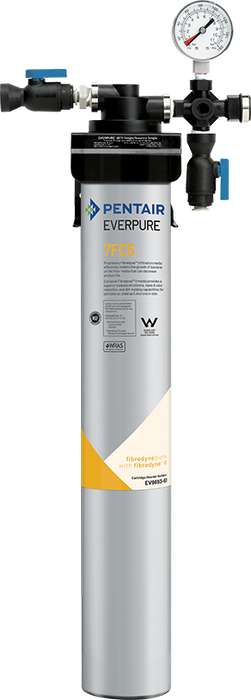

Everpure QC7I Single 7FC5 (EV920231) Water Filtration System
The Everpure QC7I Single 7FC5 (EV920231) is a high-performance water filtration system designed specifically for fountain beverage applications, featuring proprietary Fibredyne™ II bacteriostatic media that reduces chlorine taste and odors while filtering sediment down to 5 microns, delivering 25,000 gallons of consistently great-tasting water at 2.5 gpm flow rate.
Performance & Specifications
| Feature | Specification |
|---|---|
| Model Number | QC7I Single 7FC5 (EV920231) |
| Filtration Capacity | 25,000 gallons (94,635 liters) |
| Number of Filters | Single cartridge system |
| Flow Rate | 2.5 gpm (9.46 lpm) |
| Micron Rating | 5 microns |
| Contaminants Filtered | Chlorine taste & odor, sediment particles (Class III), bacteriostatic protection |
Key Features
- ✓ Fibredyne™ II Bacteriostatic Media: Proprietary filter media inhibits bacterial growth within the filter to prevent media fouling and maintain optimal performance throughout the cartridge life
- ✓ NSF/ANSI Standard 42 Certified: Independently certified for Bacteriostatic Effects, Chlorine Taste & Odor reduction, and Particulate Class III filtration
- ✓ Quick-Change Cartridge System: Sanitary cartridge replacement design allows for fast, tool-free filter changes without contact with filtered or unfiltered water
- ✓ Built-In Service Features: Integrated inlet shutoff valve, flush valve, and pressure gauges simplify maintenance and allow for real-time monitoring of system performance
- ✓ 5 Micron Mechanical Filtration: Effectively removes sediment and particulates to protect equipment from damage and ensure clear, quality water even with high turbidity supplies
- ✓ Compact Wall-Mount Design: Space-saving dimensions of 24" H x 8" W x 5.25" D make installation convenient for under-counter or wall-mount applications
FAQ
Q: How often should the 7FC5 filter cartridge be replaced in the EV920231 system?
A: Filter cartridges should be replaced every six months as part of a regular maintenance program, when the 25,000-gallon capacity is reached, or if water pressure or flow becomes inadequate. At a minimum, cartridges must be replaced at least once per year regardless of usage.
Q: What applications is the QC7I Single 7FC5 system best suited for?
A: The EV920231 is specifically designed for fountain beverage and cold beverage applications, providing consistent water quality that ensures great-tasting drinks while protecting dispensing equipment from sediment damage and performance issues.
Q: What are the water supply requirements for proper operation of this system?
A: The system requires water pressure between 10-125 psi (non-shock), with a pressure reducing valve recommended when pressure exceeds 85 psi. Water temperature must be between 35-100°F (2-38°C), and the system should not be installed where it could be exposed to freezing temperatures.
What's Included
- QC7I Single 7FC5 filter head with mounting bracket
- 7FC5 replacement cartridge (EV9693-61)
- Inlet shutoff valve and flush valve
- Dual pressure gauges for monitoring
- Installation, operation, and maintenance guide
Note: Only use this system with water that is known to be safe. If the water quality is uncertain, ensure it is disinfected before or after filtration.
