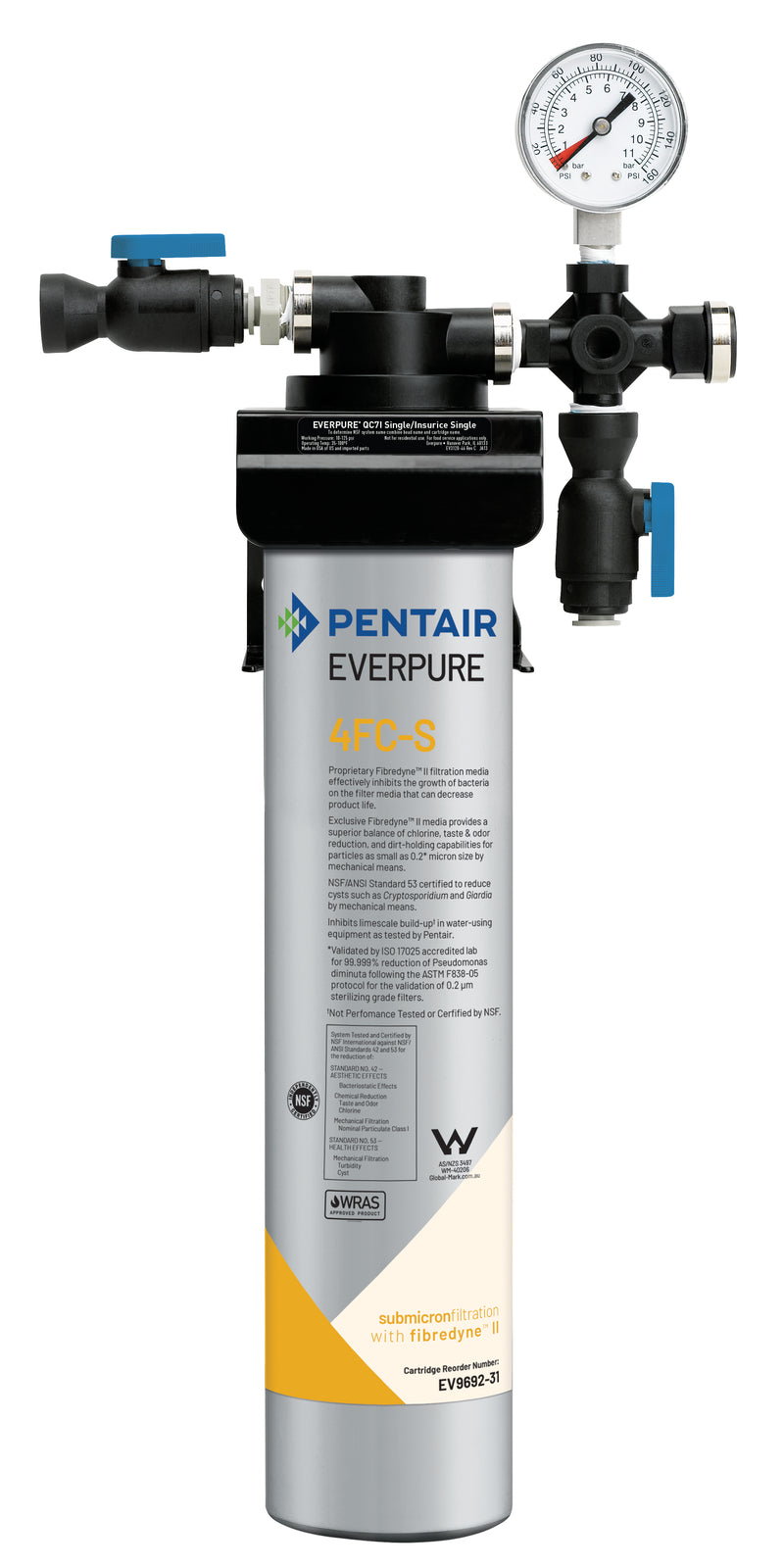

Everpure QC7I Single 4FC-S (EV920281) Water Filtration System
The Everpure QC7I Single 4FC-S (EV920281) is a high-performance water filtration system featuring exclusive Fibredyne II bacteriostatic media that delivers 0.2 micron particulate reduction, chlorine taste and odor removal, integrated scale inhibition, and NSF/ANSI Standards 42 and 53 certification for coffee brewers and ice machines requiring consistently clean, great-tasting water at 2.5 gpm flow rate and 15,000-gallon capacity.
Performance & Specifications
| Feature | Specification |
|---|---|
| Model Number | QC7I Single 4FC-S (EV920281) |
| Filtration Capacity | 15,000 gallons (56,781 liters) |
| Number of Filter/s | Single Cartridge (4FC-S) |
| Flow Rate/s | 2.5 GPM (9.46 LPM) |
| Contaminants Filtered | Chlorine taste & odor, particulates (0.2 micron), turbidity, cysts (Cryptosporidium & Giardia) |
Key Features
- ā Fibredyne II Bacteriostatic Media: Proprietary filtration technology reduces particulates down to 0.2 micron while inhibiting bacterial growth within the filter to prevent media fouling and maintain optimal performance
- ā Integrated Scale Inhibitor: Built-in scale inhibitor media minimizes scale formation on equipment surfaces to protect coffee brewers and ice machines, extending equipment life and reducing maintenance costs
- ā NSF/ANSI Certified: Certified under NSF/ANSI Standards 42 and 53 for chlorine taste and odor reduction, particulate Class I reduction, bacteriostatic effects, cyst reduction, and turbidity reduction
- ā Quick-Change Cartridge System: Sanitary quick-change (QC) cartridges allow for simple, tool-free replacement in seconds without shutting off water supply, minimizing downtime
- ā Built-In Service Features: Includes inlet shutoff valve, flush valve, and dual pressure gauges to simplify maintenance, monitor filter performance, and extend cartridge life
- ā Compact Wall-Mount Design: Space-saving dimensions of 18" H x 8" W x 5.25" D with vertical mounting design requiring only 2.5" clearance below for easy cartridge access
FAQ
Q: How often should the 4FC-S replacement cartridge be changed?
A: The cartridge should be replaced every six months on a regular schedule, when the 15,000-gallon capacity is reached, or when water pressure or flow becomes inadequate. Always replace the cartridge at least once per year regardless of usage.
Q: What is the difference between the 4FC-S and 4FC5-S cartridge models?
A: The 4FC-S features 0.2 micron particulate reduction with validated 99.999% reduction of Pseudomonas diminuta, while the 4FC5-S offers 5 micron filtration. Both provide the same 15,000-gallon capacity and 2.5 GPM flow rate with scale inhibition.
Q: What water pressure range is required for the QC7I Single 4FC-S system?
A: The system operates at water pressures between 10-125 psi (0.7-8.6 bar) non-shock. When feed water pressure exceeds 85 psi, a pressure reducing valve is recommended for optimal performance and equipment protection.
What's Included
- QC7I Single 4FC-S water filtration system with mounting bracket
- 4FC-S replacement cartridge (EV9692-31) pre-installed
- Inlet shutoff valve and flush valve assembly
- Dual pressure gauges (inlet and outlet)
- Installation, operation, and maintenance guide
Note: Only use this system with water that is known to be safe. If the water quality is uncertain, ensure it is disinfected before or after filtration.
