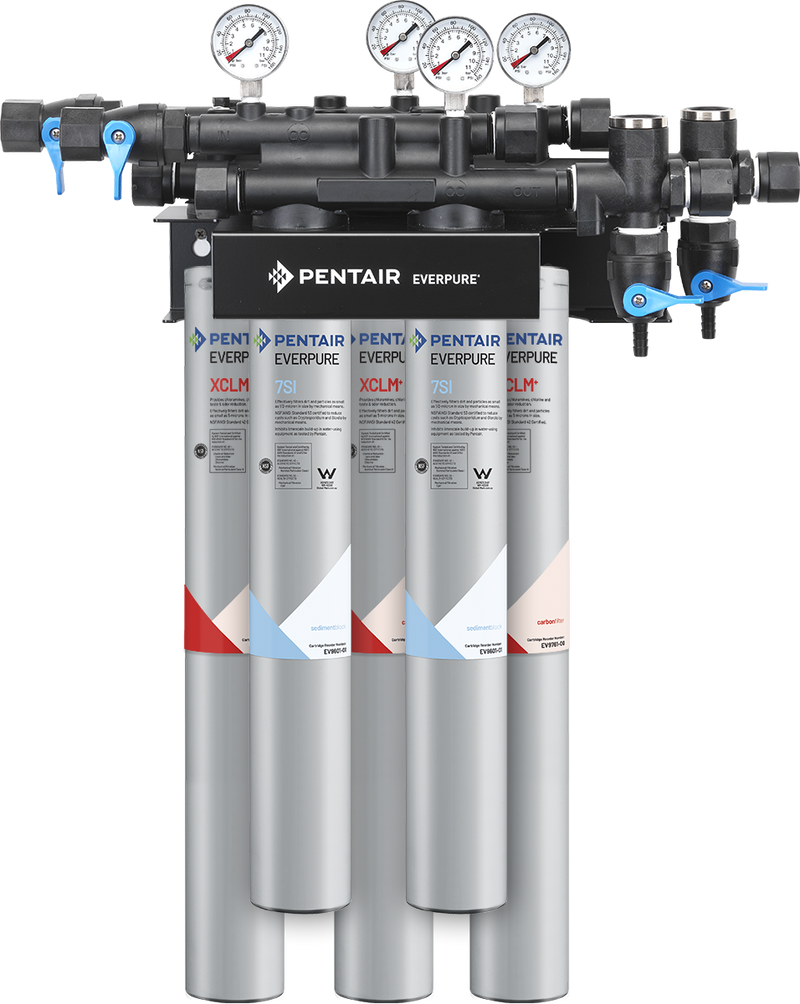

Everpure QC7I XCLM+/7SI DIO (EV927842) Water Filtration System
The Everpure QC7I XCLM+/7SI DIO (EV927842) is a dual inlet/outlet filtration system that integrates fountain and ice machine treatment applications into a single manifold configuration, delivering two distinct water qualities with a combined capacity of up to 27,900 gallons for fountain beverages and 50,000 gallons for ice machine applications while reducing chloramines, chlorine taste, odors, and particles as small as 0.5 microns.
Performance & Specifications
| Feature | Specification |
|---|---|
| Model Number | QC7I XCLM+/7SI DIO |
| Filtration Capacity | Primary: 27,900 gal (fountain) | Secondary: 50,000 gal (ice) |
| Number of Filters | 2 Independent Systems (XCLM+ and 7SI) |
| Flow Rates | Primary: 6.0 GPM (22.71 LPM) | Secondary: 7.0 GPM (26.5 LPM) |
| Contaminants Filtered | Chloramines, chlorine taste & odor, cysts, sediment, scale minerals |
| Micron Rating | XCLM+: 5 microns | 7SI: 0.5 microns |
| NSF Certification | Standards 42 & 53 |
Key Features
- ✓ Dual Independent Systems: Integrates two separate water treatment systems into one compact manifold for fountain and ice applications with distinct water quality outputs
- ✓ Superior Chloramine Reduction: XCLM+ system effectively reduces chloramines and chlorine taste & odor to improve beverage quality and protect drink system components from damage
- ✓ Advanced Ice Machine Protection: 7SI system with Fibredyne media filters particles down to 0.5 microns and includes scale inhibitor to prevent mineral buildup and equipment malfunction
- ✓ NSF/ANSI Certified: Both systems certified under Standards 42 and 53 for reduction of cysts (Cryptosporidium and Giardia), aesthetic effects, and mechanical filtration
- ✓ High-Capacity Performance: Delivers up to 27,900 gallons for fountain applications at 6.0 GPM and 50,000 gallons for ice machines at 7.0 GPM
- ✓ Easy Maintenance Design: Built-in water shut-off and flushing valves on both outlets enable quick cartridge change-outs and simplified service with minimal downtime
FAQ
Q: What's the difference between the XCLM+ and 7SI systems in this configuration?
A: The XCLM+ primary system is designed specifically for fountain beverage applications, filtering particles down to 5 microns while reducing chloramines and chlorine taste. The 7SI secondary system is optimized for ice machines with 0.5-micron filtration, Fibredyne media, and scale inhibitor to prevent mineral buildup and extend equipment life.
Q: How often should I replace the cartridges in the EV927842 system?
A: Everpure recommends changing cartridges on a regular six-month preventative maintenance program or when capacity is reached. You should also replace cartridges when water pressure falls below 10 psi or flow rate decreases noticeably, ensuring optimal filtration performance.
Q: Can this system handle both fountain and ice machine applications simultaneously?
A: Yes, the QC7I XCLM+/7SI DIO is specifically designed as a dual inlet/outlet system that provides two independent water streams with different filtration qualities—one optimized for fountain beverages and another for ice machines—all in a single manifold configuration.
What's Included
- QC7I DIO Integrated Manifold with Mounting Hardware
- XCLM+ Replacement Cartridge (EV9761-00) for Fountain System
- 7SI Replacement Cartridge (EV9606-01) for Ice Machine System
- Built-in Water Shut-off and Flushing Valves
- Installation and Operation Instructions
Note: Only use this system with water that is known to be safe. If the water quality is uncertain, ensure it is disinfected before or after filtration.
