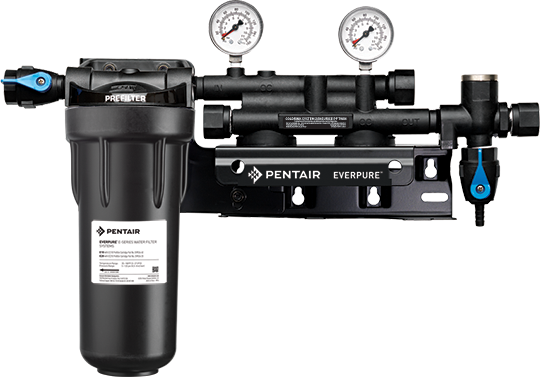

Everpure Coldrink/Insurice Twin Manifold with 10" Prefilter (EV929302)
The Everpure EV929302 is a commercial-grade twin manifold system designed to deliver consistent, high-quality filtered water for fountain beverages, ice machines, and coffee/tea brewing applications through its integrated 10" prefilter and triple filter cartridge configuration.
Performance & Specifications
| Feature | Specification |
|---|---|
| Model Number | EV929302 |
| Number of Filters | 3 (1 Prefilter + 2 Main Cartridges) |
| Prefilter Cartridge | Everpure EC110 (10") |
| Operating Pressure | 10 - 125 psi (0.7 - 8.6 bar), non-shock |
| Water Temperature Range | 35 - 100°F (2 - 38°C) |
Key Features
- ✓ Commercial-Grade Construction: Engineered for durability, strength, and longevity in demanding foodservice environments
- ✓ Built-In Pressure Gauge: Monitors water pressure to help maintain proper flow and system performance
- ✓ Easy Installation: Includes mounting box bracket and screws for fast setup without requiring extra mounting plates
- ✓ Convenient Maintenance: Optional built-in water shut-off and flushing valves simplify cartridge change-outs
- ✓ Secure Cartridge Design: Cartridge nesting feature provides more secure, durable fit for reliable operation
- ✓ NSF Certified Components: All wetted parts have successfully passed NSF extraction tests as part of listed systems
FAQ
Q: What is the recommended replacement schedule for the filter cartridges?
A: Replace cartridges annually, or when capacity is reached or flow slows down. The EC110 prefilter cartridge should be replaced regularly to maintain optimal performance and protect downstream filters.
Q: What clearance is needed for installation and maintenance?
A: Install the EV929302 vertically and allow at least 2.5 inches (6.35 cm) of clearance below the cartridge for easy removal and replacement during routine maintenance.
Q: What applications is this manifold system suitable for?
A: The EV929302 is ideal for fountain beverages, ice machines, and coffee/tea brewers in commercial settings, providing filtered water that enhances taste and protects equipment from sediment damage.
What's Included
- Twin manifold filter head system
- Everpure EC110 10" prefilter cartridge
- Mounting box bracket and screws
- Built-in water pressure gauge
- Installation, operation, and maintenance guide
Note: Only use this system with water that is known to be safe. If the water quality is uncertain, ensure it is disinfected before or after filtration.
