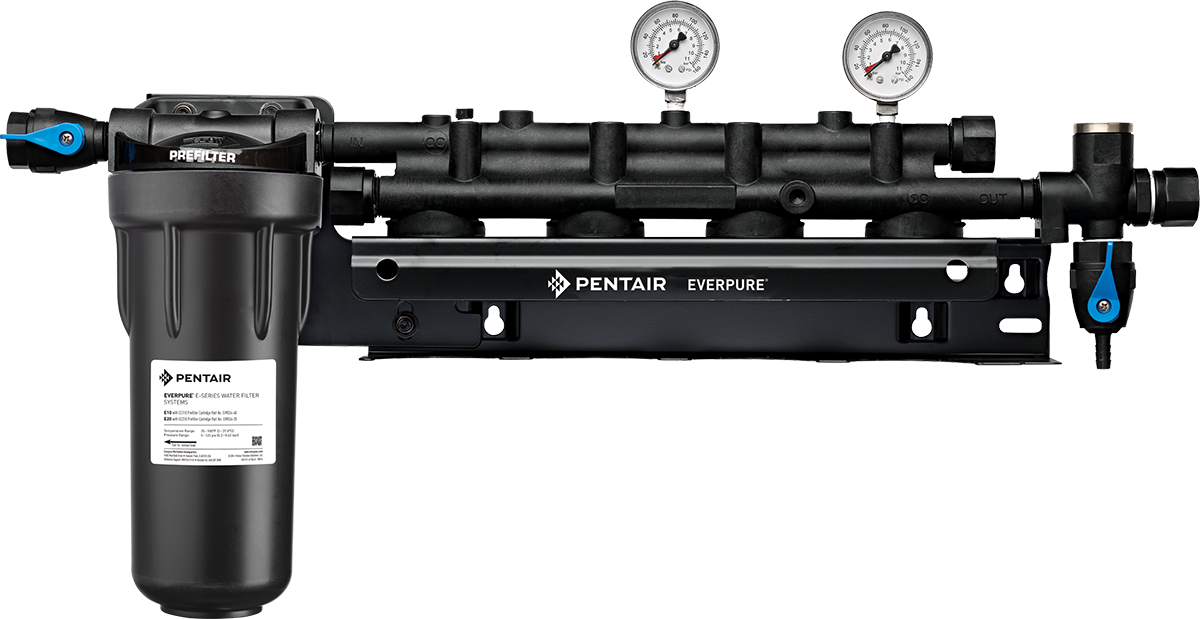

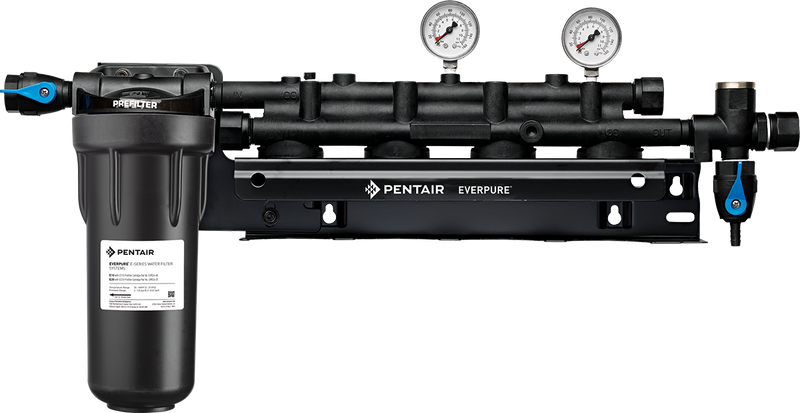

Everpure Coldrink/Insurice Quad Manifold with 10" Prefilter (EV929304)
The Everpure EV929304 Coldrink/Insurice Quad Manifold with 10" Prefilter is a commercial-grade filtration system designed for high-volume foodservice applications, featuring five filter positions including an EC110 prefilter cartridge to deliver crystal-clear ice, great-tasting fountain beverages, and protect coffee and tea brewing equipment with built-in pressure monitoring and easy cartridge change-out capabilities.
Performance & Specifications
| Feature | Specification |
|---|---|
| Model Number | EV929304 (EV9293-04) |
| Number of Filters | 5 (1 Prefilter + 4 Main Filters) |
| Prefilter Cartridge | Everpure EC110 (10") |
| Operating Pressure | 10-125 psi (0.7-8.6 bar), non-shock |
| Water Temperature Range | 35-100°F (2-38°C) |
Key Features
- ✓ Commercial-Grade Filter Head: Engineered for durability, strength, and longevity in demanding foodservice environments
- ✓ Built-In Pressure Gauge: Monitor water flow and pressure in real-time to ensure optimal filtration performance
- ✓ Integrated Shut-Off & Flushing Valve: Optional valves enable easy, mess-free cartridge replacement without system shutdown
- ✓ Modular Mounting System: Includes box bracket and screws for fast installation with no extra mounting plate required
- ✓ EC110 Prefilter Included: Filters larger dirt particles before main filtration to extend cartridge life and protect equipment
- ✓ NSF-Tested Components: All wetted parts have successfully passed NSF extraction tests as part of listed systems
FAQ
Q: What applications is the EV929304 Quad Manifold best suited for?
A: The EV929304 is ideal for high-volume commercial foodservice operations including fountain beverage dispensers, ice machines, and coffee and tea brewing equipment. The quad manifold configuration with prefilter allows simultaneous filtration for multiple pieces of equipment.
Q: How often should the filter cartridges be replaced?
A: Replace cartridges annually, or when rated capacity is reached or when water flow slows down noticeably. The EC110 prefilter cartridge (EV9534-12) should be replaced regularly to maintain optimal system performance.
Q: What clearance is needed for installation and cartridge replacement?
A: Install the EV929304 vertically and allow at least 2.5 inches (6.35 cm) of clearance below the cartridges for easy removal and replacement. Choose a mounting location that can support the system's 18 lbs shipping weight plus water.
What's Included
- Coldrink/Insurice Quad Manifold filter head with 5 cartridge positions
- Everpure EC110 10" prefilter cartridge
- Mounting box bracket and installation screws
- Built-in water pressure gauge
- Installation, operation, and maintenance guide
Note: Only use this system with water that is known to be safe. If the water quality is uncertain, ensure it is disinfected before or after filtration.
