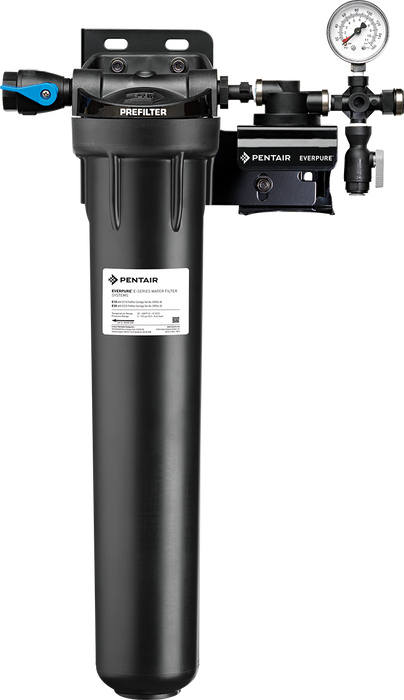

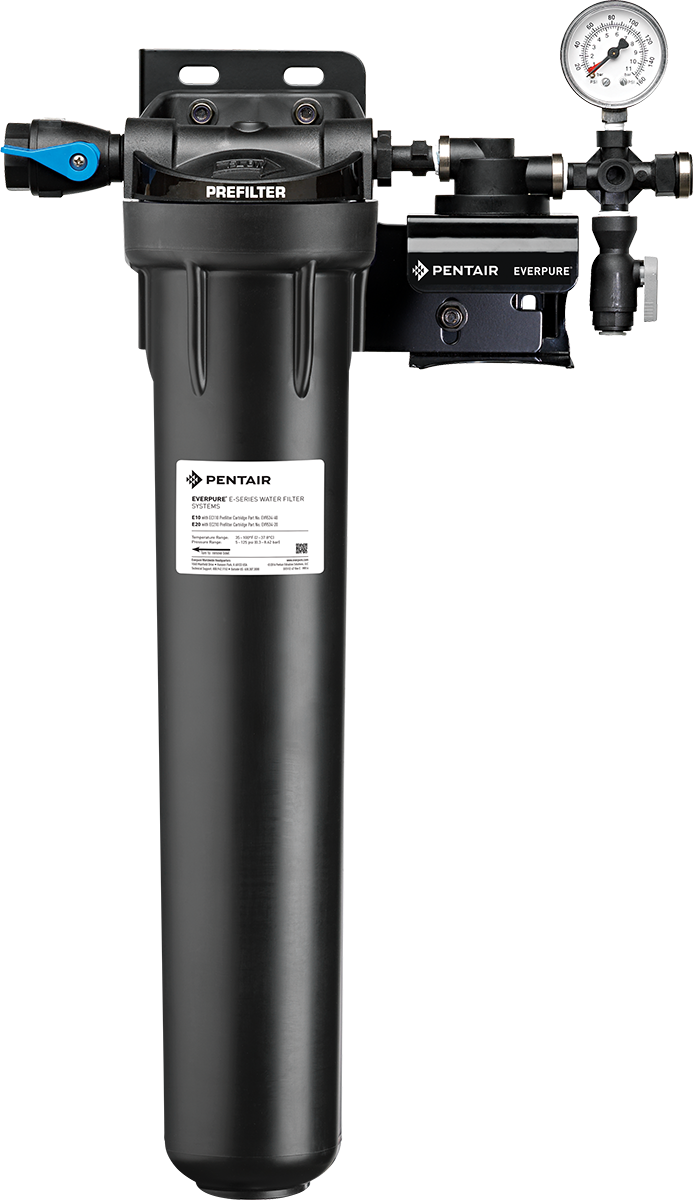

Everpure Coldrink/Insurice Manifold with 20" Prefilter (EV929321)
The Everpure EV929321 is a commercial-grade manifold filtration system featuring a 20" prefilter designed for fountain beverages, ice machines, and coffee/tea brewers, delivering consistent quality water with built-in pressure monitoring and durable construction for reliable foodservice operation.
Performance & Specifications
| Feature | Specification |
|---|---|
| Model Number | EV929321 |
| Number of Filters | 2 (includes EC110 prefilter cartridge) |
| Operating Pressure | 10-125 psi (0.7-8.6 bar), non-shock |
| Water Temperature Range | 35-100°F (2-38°C) |
Key Features
- ✓ Commercial-Grade Filter Head: Engineered for durability, strength, and longevity in demanding foodservice environments
- ✓ Built-In Water Pressure Gauge: Monitors proper flow to help ensure optimal system performance and filter efficiency
- ✓ Optional Shut-Off and Flushing Valve: Simplifies cartridge change-outs without system disassembly for faster maintenance
- ✓ Easy Installation Design: Includes mounting box bracket and screws for fast setup without requiring extra mounting plates
- ✓ Modular Box Bracket: Allows future retrofitting of add-on components without disassembling the entire system
- ✓ NSF-Tested Components: All wetted parts have successfully passed NSF extraction tests as part of listed systems
FAQ
Q: What type of applications is the EV929321 manifold system best suited for?
A: The EV929321 is ideal for fountain beverage dispensers, ice machines, and coffee/tea brewing equipment in commercial foodservice settings, providing consistent water quality for great-tasting beverages and crystal-clear ice.
Q: How often do the filter cartridges need to be replaced?
A: Replace cartridges annually, or when capacity is reached or flow rate slows down. The system includes an EC110 prefilter cartridge, with replacement cartridge model EC210 (part number EV9534-26) available for ongoing maintenance.
Q: What are the installation clearance requirements for this manifold system?
A: Install the system vertically and allow 2.5 inches (6.35 cm) clearance below the cartridge for easy removal and replacement. Choose a mounting location that can support the system's 18 lbs operating weight, and avoid areas exposed to freezing temperatures.
What's Included
- Coldrink/Insurice manifold with commercial-grade filter head
- Everpure EC110 prefilter cartridge (20" size)
- Mounting box bracket and screws
- Built-in water pressure gauge
- 3/4" to 3/8" reducer for inlet connection
- Installation, operation, and maintenance guide
Note: Only use this system with water that is known to be safe. If the water quality is uncertain, ensure it is disinfected before or after filtration.
