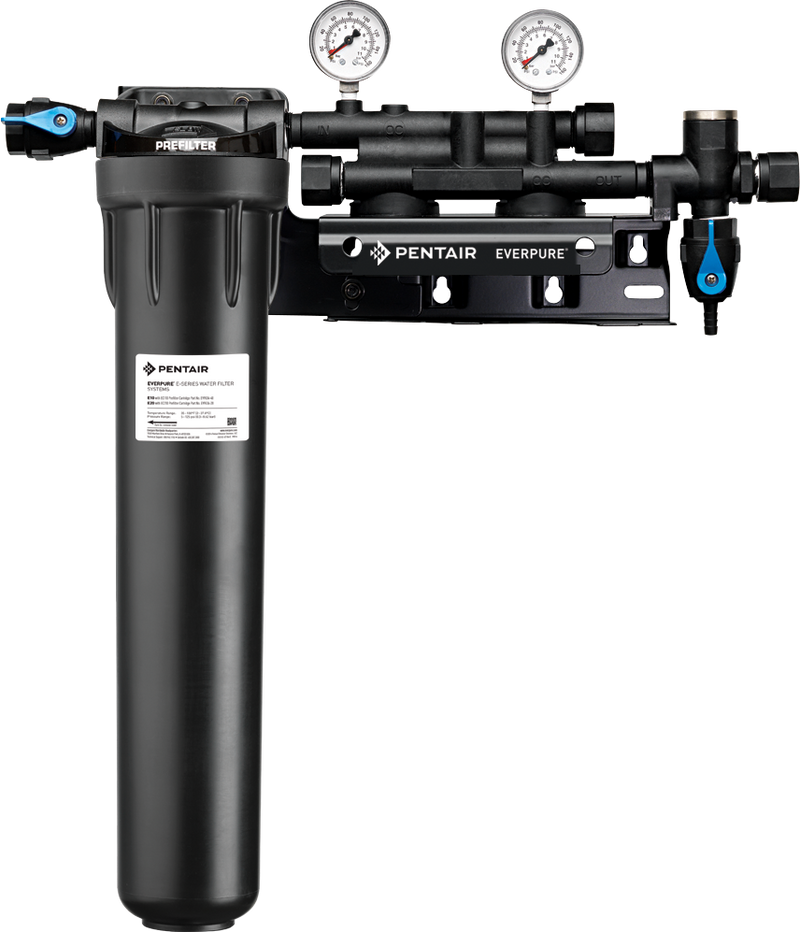

Everpure Coldrink/Insurice Twin Manifold with 20" Prefilter (EV929322)
The Everpure EV929322 Coldrink/Insurice Twin Manifold with 20" prefilter delivers commercial-grade water filtration for fountain beverages, ice machines, and coffee equipment, featuring a three-cartridge system with built-in pressure gauge and durable construction designed for consistent quality and reliable foodservice operation.
Performance & Specifications
| Feature | Specification |
|---|---|
| Model Number | EV929322 |
| Number of Filters | 3 (1 x 20" EC210 Prefilter + 2 Filter Positions) |
| Operating Pressure | 10-125 psi (0.7-8.6 bar), non-shock |
| Water Temperature Range | 35-100°F (2-38°C) |
Key Features
- ✓ Commercial-Grade Filter Head: Engineered for durability, strength, and longevity with all wetted parts passing NSF extraction tests
- ✓ Built-In Water Pressure Gauge: Monitors proper flow to help maintain optimal system performance and identify maintenance needs
- ✓ Integrated Shut-Off and Flushing Valve: Makes cartridge change-outs quick and easy without system disassembly
- ✓ 20" EC210 Prefilter Included: Filters larger dirt particles to protect equipment and extend the life of downstream cartridges
- ✓ Easy Installation System: Includes mounting box bracket and screws for fast installation with no extra mounting plate required
- ✓ Modular Design: Allows for future retrofitting of add-on components without disassembly of the system
FAQ
Q: What replacement cartridge does the EV929322 prefilter position use?
A: The prefilter position uses the Everpure EC210 replacement cartridge (Part No. EV9534-26), which should be replaced annually or when capacity is reached or flow slows down.
Q: What are the inlet and outlet connection sizes for this manifold?
A: The EV929322 features a 3/4" FNPT inlet connection and 3/4" FNPT outlet connection, suitable for commercial foodservice applications.
Q: How much clearance is needed below the manifold for cartridge replacement?
A: Install the system vertically and allow at least 2.5 inches (6.35 cm) of clearance below the cartridge for easy removal and replacement.
What's Included
- Coldrink/Insurice Twin Manifold with 20" prefilter system
- Everpure EC210 prefilter cartridge (pre-installed)
- Mounting box bracket and screws
- Built-in water pressure gauge
- Installation, operation, and maintenance guide
Note: Only use this system with water that is known to be safe. If the water quality is uncertain, ensure it is disinfected before or after filtration.
