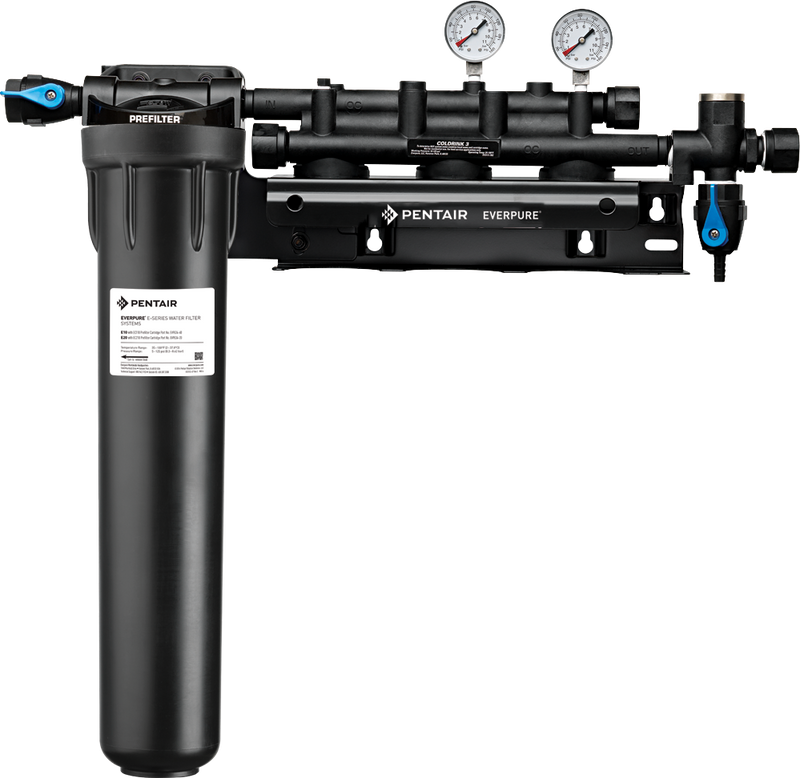

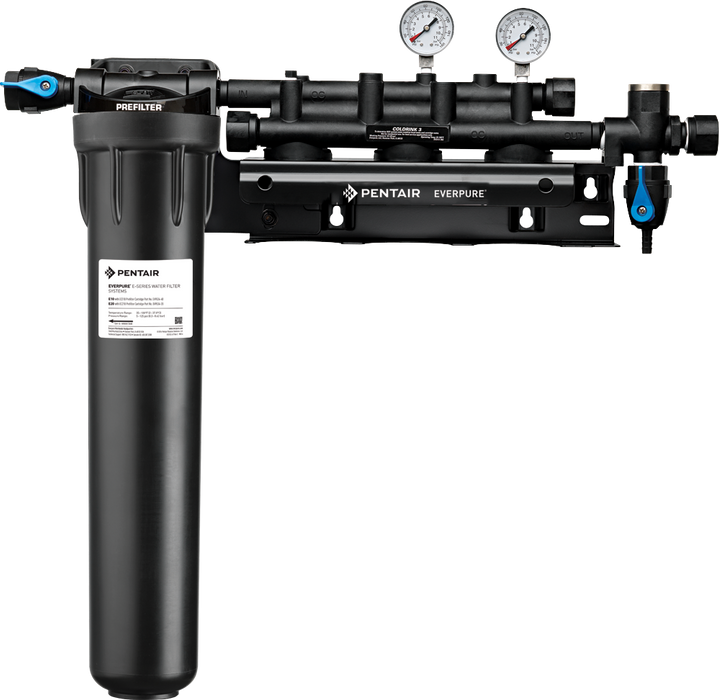

Everpure Coldrink/Insurice Triple Manifold with 20" Prefilter (EV929323)
The Pentair Everpure EV929323 is a commercial-grade triple manifold filtration system featuring a 20" prefilter cartridge designed for fountain beverages, ice machines, and coffee/tea brewers, delivering consistent water quality and crystal-clear ice while protecting valuable foodservice equipment.
Performance & Specifications
| Feature | Specification |
|---|---|
| Model Number | EV929323 |
| Number of Filters | 4 (3 standard + 1 prefilter) |
| Prefilter Size | 20 inches |
| Operating Pressure | 10-125 psi (non-shock) |
| Water Temperature Range | 35-100°F (2-38°C) |
Key Features
- ✓ Commercial-Grade Construction: Durable filter head designed for high-demand foodservice environments with NSF-tested wetted parts
- ✓ Built-In Pressure Gauge: Monitors water pressure to ensure optimal flow and system performance throughout operation
- ✓ Easy Cartridge Change-Out: Optional built-in water shut-off valve and flushing valve simplify maintenance and filter replacement
- ✓ Secure Mounting System: Includes mounting box bracket and screws for fast installation without requiring additional mounting plates
- ✓ Modular Design: Box bracket allows for future retrofitting of add-on components without complete system disassembly
- ✓ 20" Prefilter Protection: Includes Everpure EC210 prefilter cartridge to remove larger dirt particles and extend downstream filter life
FAQ
Q: What are the dimensions and clearance requirements for installing the EV929323?
A: The system measures 25.31" W x 25.38" H x 6.13" D and should be installed vertically with at least 2.5 inches of clearance below the cartridge for easy removal and replacement.
Q: How often should I replace the filter cartridges?
A: Replace cartridges annually, or when the rated capacity is reached, or when flow rate noticeably slows down, whichever comes first.
Q: What applications is the EV929323 best suited for?
A: This triple manifold system is ideal for fountain beverage dispensers, ice machines, and coffee or tea brewing equipment in commercial foodservice operations requiring multiple filtration points.
What's Included
- Triple manifold filter head with commercial-grade construction
- Everpure EC210 20" prefilter cartridge (6-pack replacement available as EV9534-26)
- Mounting box bracket and installation screws
- Built-in water pressure gauge
- Installation, operation, and maintenance guide
Note: Only use this system with water that is known to be safe. If the water quality is uncertain, ensure it is disinfected before or after filtration.
