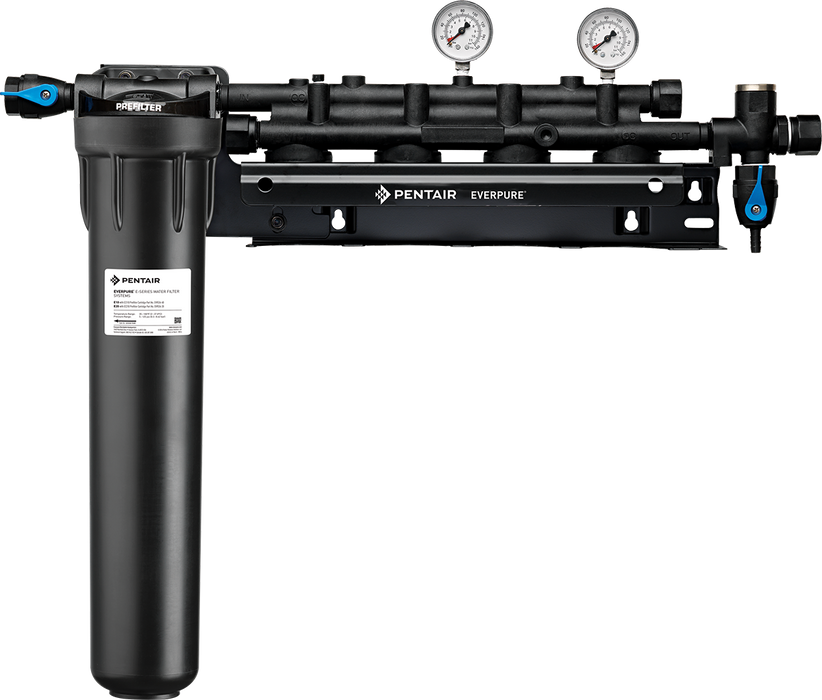

Everpure Coldrink/Insurice Quad Manifold with 20" Prefilter (EV929324)
The Everpure EV929324 is a commercial-grade quad manifold filtration system designed for high-volume foodservice applications, featuring five filter positions with an integrated 20" prefilter to deliver consistent, quality water for fountain beverages, ice machines, and coffee brewing equipment.
Performance & Specifications
| Feature | Specification |
|---|---|
| Model Number | EV929324 |
| Number of Filters | 5 (1 Prefilter + 4 Main Cartridges) |
| Prefilter Cartridge | Everpure EC210 (20" Length) |
| Inlet Connection | 3/4" FNPT |
| Outlet Connection | 3/4" FNPT |
Key Features
- ā Commercial-Grade Construction: Engineered with durable, long-lasting components designed to withstand demanding foodservice environments
- ā 20" Prefilter System: Includes Everpure EC210 prefilter cartridge to capture larger dirt particles and protect downstream equipment
- ā Built-In Pressure Gauge: Monitor water pressure and system performance at a glance to ensure optimal flow rates
- ā Easy Installation: Includes mounting box bracket and screws for quick setup without requiring additional mounting plates
- ā Optional Shut-Off & Flushing Valves: Built-in water shut-off and flushing valve make cartridge replacements simple and mess-free
- ā NSF Compliant Materials: All wetted parts have successfully passed NSF extraction tests as part of Listed systems for safety assurance
FAQ
Q: What applications is the EV929324 manifold system best suited for?
A: This quad manifold system is ideal for high-volume commercial applications including fountain beverage dispensers, ice machines, and coffee or tea brewing equipment where multiple points of filtration are required.
Q: How often should the filter cartridges be replaced?
A: Replace cartridges annually, or when rated capacity is reached or when flow rate noticeably decreases. The EC210 prefilter cartridge should be monitored regularly as it protects the downstream filters.
Q: What clearance is needed for installation and cartridge replacement?
A: Install the system vertically and allow at least 2.5 inches (6.35 cm) of clearance below the cartridge for easy removal and replacement during maintenance.
What's Included
- EV929324 Quad Manifold System
- Everpure EC210 20" Prefilter Cartridge
- Mounting Box Bracket and Screws
- Built-in Water Pressure Gauge
- Installation, Operation, and Maintenance Guide
Note: Only use this system with water that is known to be safe. If the water quality is uncertain, ensure it is disinfected before or after filtration.
