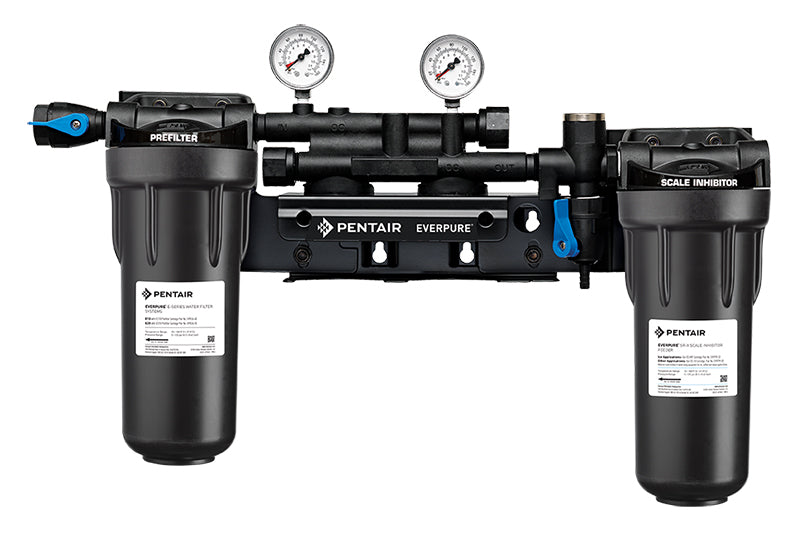

Everpure High Flow CSR Twin Manifold with 10" Prefilter (EV929402)
The Everpure High Flow CSR Twin Manifold (EV929402) is a commercial-grade filtration system designed for combination foodservice applications, featuring a built-in pressure gauge, integrated shut-off and flushing valves, and includes an EC110 pre-filter cartridge with ScaleStick for reliable water quality in fountain, coffee, tea, and ice machine operations.
Performance & Specifications
| Feature | Specification |
|---|---|
| Model Number | EV929402 |
| Number of Filters | 4 (includes 10" prefilter) |
| Inlet Connection | 3/4" FNPT |
| Outlet Connection | 3/4" FNPT |
| Pressure Range | 10 - 125 psi (0.7 - 8.6 bar) |
| Temperature Range | 35 - 100°F (2 - 38°C) |
Key Features
- ✓ Commercial-Grade Construction: Engineered with corrosion-resistant materials for durability, strength, and longevity in demanding foodservice environments
- ✓ Built-In Pressure Gauge: Integrated water pressure gauge allows for real-time monitoring of proper flow and system performance
- ✓ Quick-Change System: Optional built-in water shut-off valve and flushing valve enable easy, mess-free cartridge replacements without system shutdown
- ✓ Complete Installation Package: Includes mounting box bracket and screws for fast installation directly onto flat surfaces without additional mounting plates
- ✓ Scale Prevention Technology: Comes with Everpure EC110 pre-filter cartridge and ScaleStick to minimize scale formation and protect equipment
- ✓ NSF Certified Components: All wetted parts have successfully passed NSF extraction tests, ensuring safe water contact materials for foodservice use
FAQ
Q: What types of foodservice equipment can the EV929402 manifold support?
A: The EV929402 is designed for combination applications including fountain beverage dispensers, coffee brewers, tea machines, and ice makers, making it ideal for whole store filtration needs.
Q: How do I know when to change the filter cartridges?
A: Replace cartridges when the rated capacity is reached or when water flow becomes noticeably slow. The built-in pressure gauge helps monitor system performance and indicates when service may be needed.
Q: Can the EV929402 be installed in any orientation?
A: No, the manifold must be installed vertically with cartridges hanging downward. Allow at least 2.5 inches of clearance below the cartridges for easy replacement access.
What's Included
- High Flow CSR Twin Manifold with 10" prefilter housing
- Everpure EC110 pre-filter cartridge
- ScaleStick scale inhibitor
- Mounting box bracket and installation screws
- Built-in water pressure gauge
Note: Only use this system with water that is known to be safe. If the water quality is uncertain, ensure it is disinfected before or after filtration.
