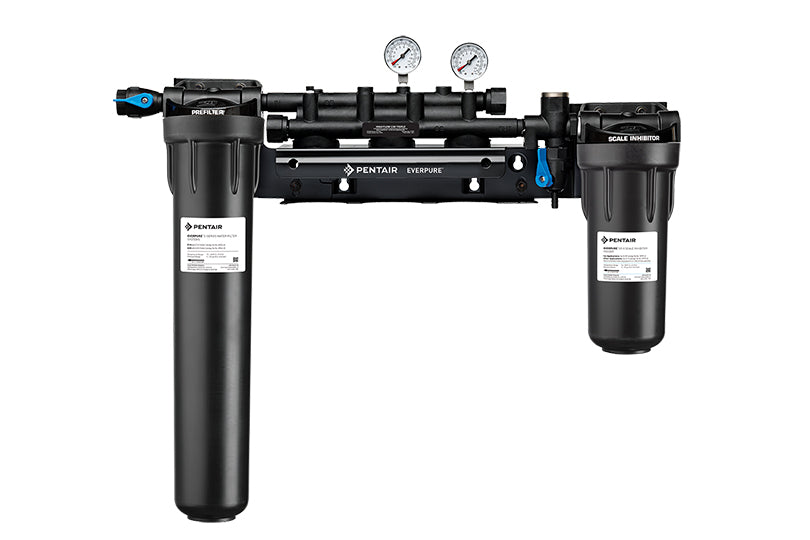

Everpure High Flow CSR Triple Manifold with 20" Prefilter (EV929423)
The Everpure EV929423 High Flow CSR Triple Manifold delivers commercial-grade water filtration for foodservice applications including fountain beverages, coffee, tea, and ice machines, featuring a 20" particulate prefilter, built-in pressure gauge, and quick-change cartridge system with integrated ScaleStick technology to minimize scale formation and ensure reliable equipment operation.
Performance & Specifications
| Feature | Specification |
|---|---|
| Model Number | EV929423 |
| Number of Filters | 5 (includes 20" prefilter) |
| Inlet Connection | 3/4" FNPT |
| Outlet Connection | 3/4" FNPT |
| Pressure Range | 10 - 125 psi (0.7 - 8.6 bar) |
| Temperature Range | 35 - 100°F (2 - 38°C) |
Key Features
- ✓ Commercial-Grade Construction: Engineered for durability, strength, and longevity with corrosion-resistant hardware that will not corrode over time
- ✓ Quick-Change System: Optional built-in water shut-off and flushing valve makes cartridge replacements easy and mess-free without system shutdown
- ✓ Built-In Pressure Monitoring: Integrated water pressure gauge helps monitor proper flow rates and system performance for optimal operation
- ✓ Modular Design: Box bracket mounting system allows for future retrofitting of add-on components without complete system disassembly
- ✓ Complete Filtration Solution: Includes Everpure EC210 pre-filter cartridge and ScaleStick for comprehensive scale reduction and particulate removal
- ✓ NSF Certified Materials: All wetted parts have successfully passed NSF extraction tests for safe contact with potable water
FAQ
Q: What applications is the EV929423 High Flow CSR Triple Manifold designed for?
A: The EV929423 is specifically designed for high-volume commercial foodservice applications including fountain beverage dispensers, coffee and tea brewing equipment, ice machines, and whole store filtration systems. It's ideal for establishments requiring multiple points of filtered water delivery.
Q: How many filter cartridges can this manifold hold and what size is the prefilter?
A: The EV929423 accommodates a total of 5 filters: one 20-inch prefilter cartridge for particulate removal, plus four Everpure quick-change cartridge positions for various filtration needs. The system includes an Everpure EC210 prefilter cartridge and ScaleStick upon purchase.
Q: Can I install this manifold myself or does it require professional installation?
A: While the EV929423 includes a mounting box bracket and screws for straightforward installation, professional installation by a licensed plumber is recommended to ensure proper connection to your water supply, compliance with local plumbing codes, and optimal system performance. The unit must be mounted vertically with at least 2.5 inches of clearance below for cartridge replacement.
What's Included
- High Flow CSR Triple Manifold assembly
- Everpure EC210 20" prefilter cartridge
- Everpure ScaleStick
- Mounting box bracket and screws
- Built-in water pressure gauge
Note: Only use this system with water that is known to be safe. If the water quality is uncertain, ensure it is disinfected before or after filtration.
