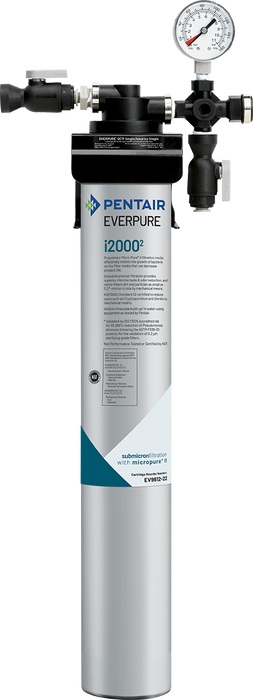

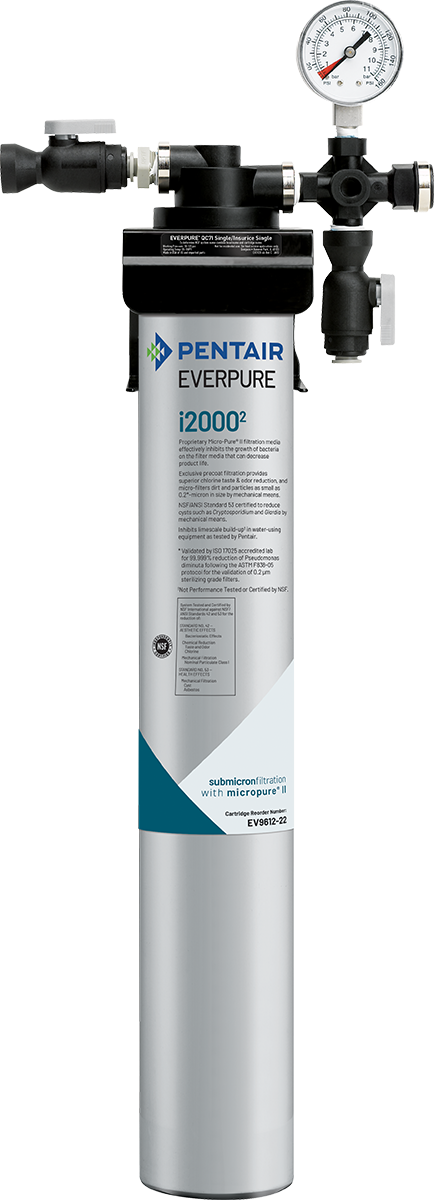

Everpure Insurice Single i20002 (EV932401) Ice Machine Water Filtration System
The Pentair Everpure Insurice Single i20002 (EV932401) is a professional-grade water filtration system designed specifically for ice machines, delivering consistently clean, fresh-tasting ice while reducing scale buildup and equipment downtime through advanced 0.2-micron mechanical filtration and proprietary Micro-Pure II media technology.
Performance & Specifications
| Feature | Specification |
|---|---|
| Model Number | Insurice Single i20002 (EV932401) |
| Filtration Capacity | 9,000 gallons (34,069 L) |
| Number of Filters | Single cartridge configuration |
| Flow Rate | Maximum 1.67 GPM (6.3 LPM) |
| Micron Rating | 0.2 microns |
| Contaminants Filtered | Particulates, chlorine taste & odor, chloramines, cysts (Cryptosporidium & Giardia), scale, bacteria |
Key Features
- ā Precoat Filtration Technology: Exclusive design reduces chlorine taste and odor while mechanically filtering particles as small as 0.2 microns for superior ice quality
- ā Scale Inhibition: Reduces scale buildup in distribution lines, evaporator plates, and pumps to minimize equipment downtime and maintenance costs
- ā Micro-Pure II Media: Proprietary Pentair filtration media effectively inhibits bacterial growth on filter media, extending product life and maintaining consistent performance
- ā NSF/ANSI Certified: Meets Standards 42 and 53 for aesthetic effects and health effects, including mechanical reduction of cysts like Cryptosporidium and Giardia
- ā Quick-Change Cartridge: Sanitary, tool-free cartridge replacement system (EV9612-22) enables fast maintenance with minimal downtime
- ā Commercial Capacity: Supports cubers up to 500 lbs/day and flakers up to 1,500 lbs/day with 9,000-gallon rated capacity
FAQ
Q: What size ice machines is the Insurice Single i20002 (EV932401) compatible with?
A: The Insurice Single i20002 is designed for ice cube machines producing up to 500 pounds per day and ice flaker machines producing up to 1,500 pounds per day, with a service flow rate of 1.67 GPM maximum.
Q: How often should the filter cartridge be replaced?
A: Pentair recommends changing the EV9612-22 replacement cartridge every six (6) months as part of a preventative maintenance program, or when the 9,000-gallon capacity is reached, or when flow rate becomes noticeably reduced.
Q: What are the installation requirements for this system?
A: Install vertically with cartridges hanging down using 3/8" water line and 3/8" FNPT connections. Allow 2.5" clearance below for cartridge changes. Never use saddle valves or connect to water-cooled condensers. Operating pressure should be 10-125 PSI with water temperature between 35-100Ā°F.
What's Included
- Insurice Single i20002 filter head assembly (EV9324-01)
- One (1) i20002 replacement cartridge (EV9612-22) pre-installed
- Mounting bracket and hardware
- Installation and operation instructions
Note: Only use this system with water that is known to be safe. If the water quality is uncertain, ensure it is disinfected before or after filtration.
