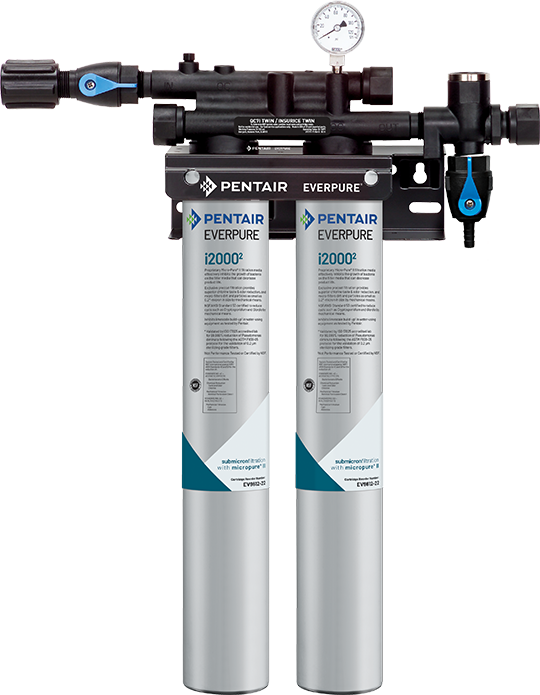

Everpure Insurice Twin-i20002 (EV932402) Water Filtration System
The Pentair Everpure Insurice Twin-i20002 System delivers high-capacity water filtration for commercial ice machines, featuring dual cartridge technology that reduces scale buildup, filters particles down to 0.2 microns, and provides up to 18,000 gallons of cleaner, fresher ice while minimizing equipment downtime.
Performance & Specifications
| Feature | Specification |
|---|---|
| Model Number | Insurice Twin-i20002 (EV932402) |
| Filtration Capacity | 18,000 gallons (68,137 L) |
| Number of Filters | 2 Cartridges (Twin Configuration) |
| Flow Rate | Maximum 3.34 gpm (12.6 Lpm) |
| Micron Rating | 0.2 microns |
| Contaminants Filtered | Chlorine taste & odor, cysts (Cryptosporidium & Giardia), particulates, turbidity, scale-causing minerals |
Key Features
- ā High-Capacity Ice Production: Supports cuber ice machines up to 1,450 lbs/day and flaker machines up to 2,200 lbs/day for demanding commercial environments
- ā Micro-Pure II Technology: Proprietary Pentair Everpure filtration media effectively inhibits bacteria growth on the filter, extending product life and performance
- ā Precoat Filtration: Exclusive technology provides superior chlorine taste and odor reduction while mechanically filtering particles as small as 0.2 microns
- ā Scale Reduction: Minimizes water-related ice machine problems caused by scale buildup from dirt and dissolved minerals, protecting equipment investment
- ā NSF Certified Protection: NSF/ANSI Standard 42 and 53 certified for aesthetic effects and health effects including mechanical cyst reduction
- ā Quick-Change Design: Easy, sanitary cartridge replacement with integrated manifold featuring water shutoff valve, flushing valve, and outlet pressure gauge
FAQ
Q: How often should I replace the cartridges in the Insurice Twin-i20002 System?
A: Replace cartridges on a regular six-month preventative maintenance schedule, or when the 18,000-gallon capacity is reached, or when outlet pressure falls below 10 psi (0.7 bar) as indicated on the integrated pressure gauge.
Q: What size ice machines is the EV932402 designed to support?
A: The Insurice Twin-i20002 System is designed for cuber ice machines producing up to 1,450 lbs per day and flaker ice machines producing up to 2,200 lbs per day, making it ideal for medium to high-volume commercial applications.
Q: What is the proper installation procedure for optimal performance?
A: Install the system vertically with cartridges hanging down, use 3/4" water line connections (never saddle valves), allow 2.5" clearance below for cartridge changes, and flush the system for five minutes at full flow after installation and each cartridge change.
What's Included
- Insurice Twin-i20002 Manifold System (EV9324-02)
- Two (2) i20002 Filter Cartridges Pre-Installed
- Integrated Outlet Pressure Gauge
- Water Shutoff and Flushing Valve
- Installation and Operation Manual
Note: Only use this system with water that is known to be safe. If the water quality is uncertain, ensure it is disinfected before or after filtration.
