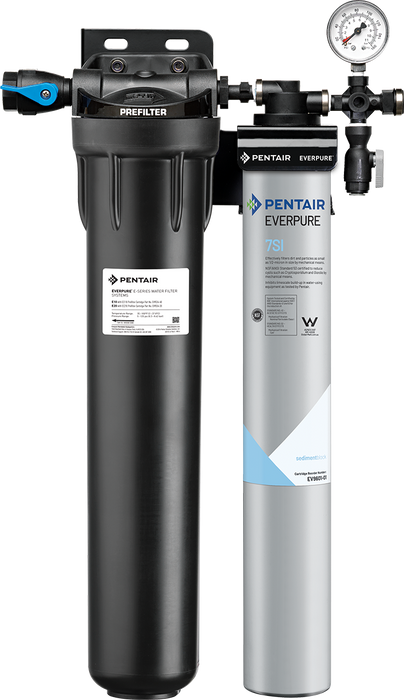

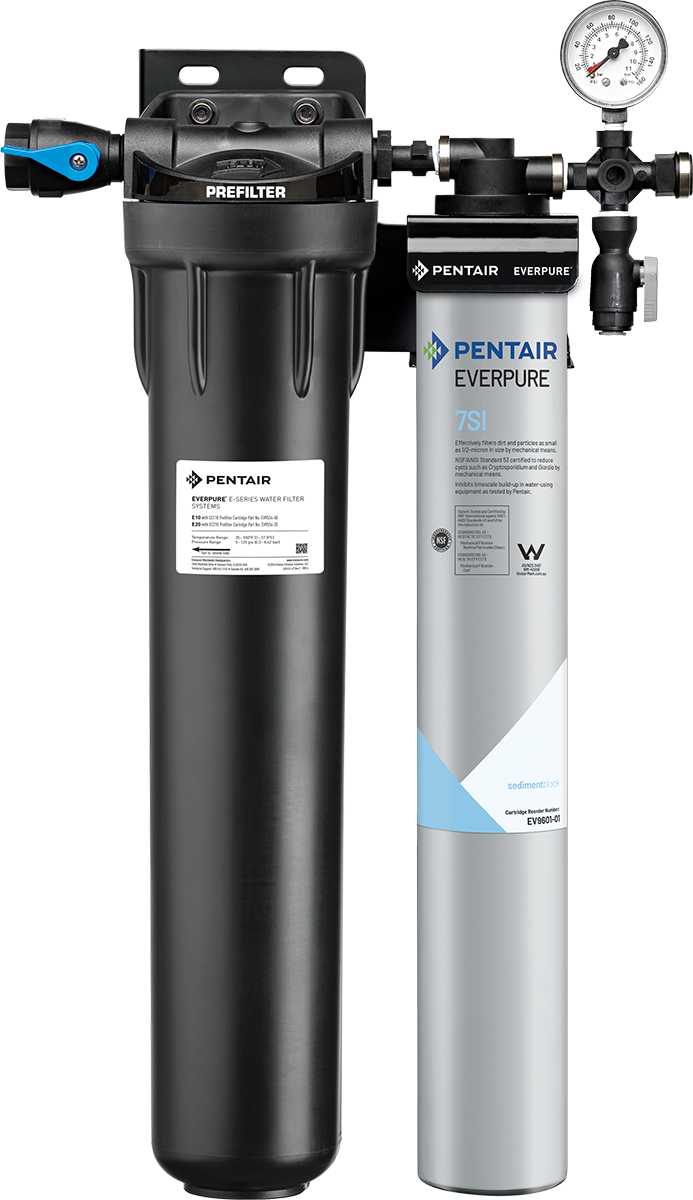

Everpure Insurice Single PF-7SI System (EV932471)
The Everpure Insurice Single PF-7SI System delivers premium quality water for ice applications by combining sediment filtration down to 0.5 microns with scale reduction capabilities, featuring a prefilter for extended cartridge life and reduced maintenance costs for commercial ice machines.
Performance & Specifications
| Feature | Specification |
|---|---|
| Model Number | EV932471 - Insurice Single PF-7SI |
| Filtration Capacity | 25,000 gallons |
| Number of Filters | 2 (7SI cartridge + EC210 prefilter) |
| Flow Rate | 3.5 GPM (13.25 LPM) |
| Contaminants Filtered | Sediment, dirt, particles, cysts (Cryptosporidium & Giardia), scale |
Key Features
- ā 0.5 Micron Mechanical Filtration: Effectively removes dirt and particles as small as half a micron to reduce ice machine maintenance and service costs
- ā Fibredyne Media Technology: Utilizes depth filtration with Fibredyne media for superior dirt-holding capability and extended cartridge life
- ā NSF/ANSI 53 Certified: Certified to reduce cysts such as Cryptosporidium and Giardia by mechanical means for health protection
- ā Prefilter Protection: EC210 prefilter cartridge captures larger sediment particles before reaching the main filter, extending system life
- ā Chlorine Retention Design: Leaves chlorine and chloramines in water to help reduce slime growth in ice machines and ice bins
- ā Sanitary Cartridge Replacement: Quick-change design ensures internal filter parts are never exposed to handling or contamination during replacement
FAQ
Q: How often should the cartridges be replaced in the Insurice Single PF-7SI System?
A: Cartridges should be changed on a regular six-month preventative maintenance schedule, or when the 25,000-gallon capacity is reached, or when water flow becomes noticeably slow. The EC210 prefilter should be inspected periodically and replaced when dirt has penetrated to the inner core.
Q: What size ice machines is the EV932471 model designed to support?
A: The Insurice Single PF-7SI System is designed for ice cubers producing up to 750 lbs/day and ice flakers producing up to 1,500 lbs/day, with a maximum service flow rate of 3.5 GPM.
Q: Can this system be used with water-cooled condensers?
A: No, the Insurice Single PF-7SI System should not be connected to water-cooled condensers. It is specifically designed for ice machine water supply applications and must be installed with a 3/4" water line.
What's Included
- Insurice Single PF-7SI System head
- 7SI replacement cartridge (EV9606-01)
- EC210 prefilter cartridge (EV9534-26)
- Mounting hardware
Note: Only use this system with water that is known to be safe. If the water quality is uncertain, ensure it is disinfected before or after filtration.
