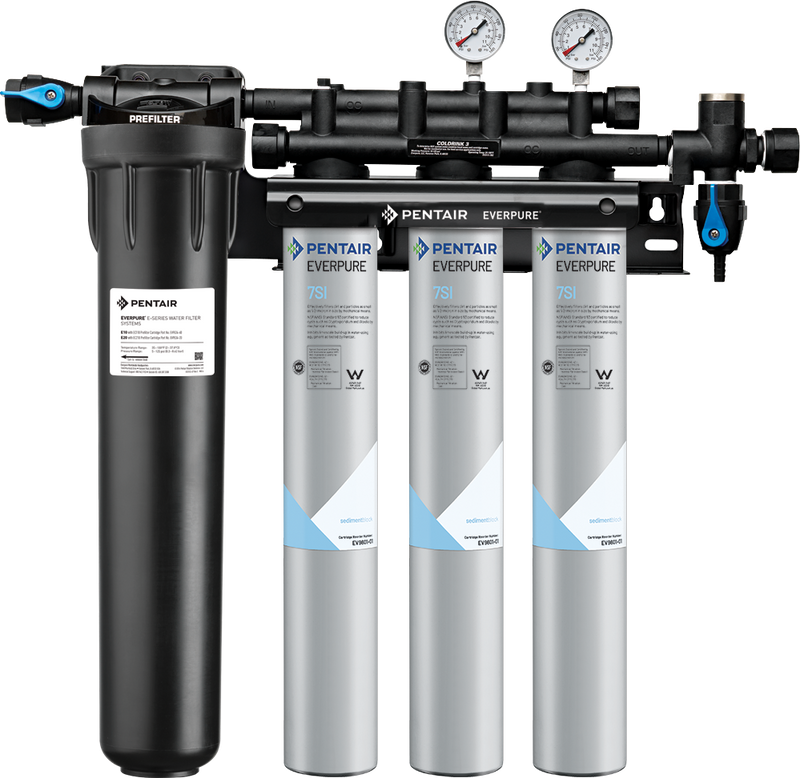

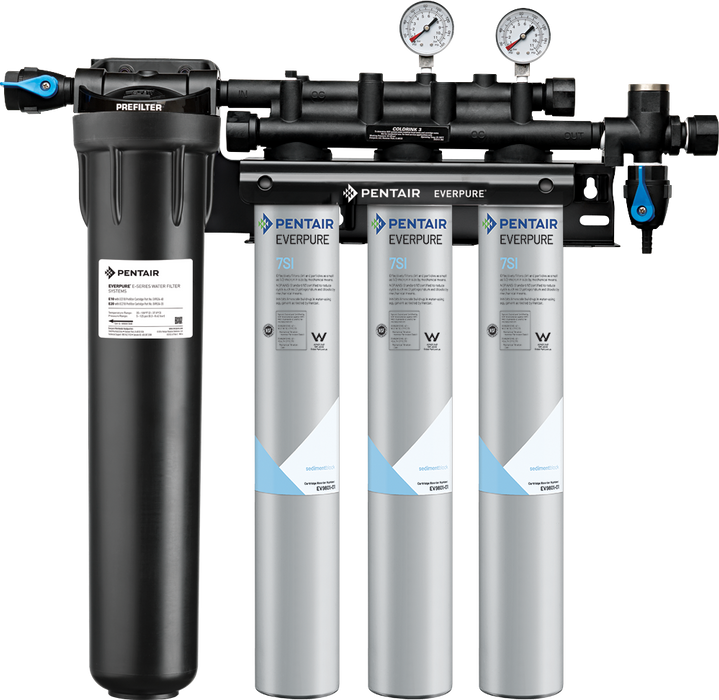

Everpure Insurice Triple PF-7SI (EV932475) Water Filtration System
The Everpure Insurice Triple PF-7SI is a high-capacity ice machine filtration system that combines 0.5-micron sediment filtration with Fibredyne media technology to deliver premium quality water while reducing scale buildup, slime growth, and equipment maintenance costs for commercial ice applications.
Performance & Specifications
| Feature | Specification |
|---|---|
| Model Number | Insurice Triple PF-7SI (EV932475) |
| Filtration Capacity | 75,000 gallons |
| Number of Filters | Triple cartridge system |
| Flow Rate | 10.5 GPM (39.8 Lpm) |
| Contaminants Filtered | Sediment, dirt, particles, cysts (Cryptosporidium & Giardia) |
Key Features
- ā 0.5 Micron Filtration: Effectively filters dirt and particles as small as 0.5 micron using mechanical means with superior depth filtration technology
- ā Fibredyne Media Technology: Advanced media provides exceptional dirt-holding capability while maintaining consistent flow and preventing premature clogging
- ā NSF/ANSI Certified: Certified under Standards 42 and 53 for aesthetic effects and health effects, including mechanical cyst reduction
- ā Scale & Maintenance Reduction: Reduces ice machine maintenance, service costs, and downtime by preventing scale buildup in distribution lines, probes, floats, and valves
- ā Slime Growth Prevention: Retains chlorine and chloramines in water supply to help reduce slime growth in ice machines and ice bins
- ā Sanitary Cartridge System: Quick-change cartridge design ensures simple, clean replacement without exposing internal filter parts to handling or contamination
FAQ
Q: How often should I replace the cartridges in the Insurice Triple PF-7SI system?
A: Cartridges should be changed on a regular six-month preventative maintenance program, when the rated capacity of 75,000 gallons is reached, or when flow becomes too slow. The EC210 prefilter cartridge should be inspected periodically and replaced when dirt has penetrated to the inner core.
Q: What size ice machines is this system designed to support?
A: The Insurice Triple PF-7SI is designed for high-capacity, high-volume ice applications supporting cuber machines up to 1,450 lbs/day and flaker machines up to 2,200 lbs/day with a maximum service flow rate of 10.5 GPM.
Q: Does this system meet healthcare water safety standards?
A: Yes, the 7SI cartridges used in this system meet ASHRAE Standard 188P, which is designed to prevent bacteria from entering and reproducing in hospital water systems, making it suitable for healthcare facilities.
What's Included
- Insurice Triple PF-7SI manifold system
- Three (3) 7SI filter cartridges (EV9606-01)
- EC210 prefilter cartridge (EV9534-26)
- Mounting hardware
- Installation and operation instructions
Note: Only use this system with water that is known to be safe. If the water quality is uncertain, ensure it is disinfected before or after filtration.
