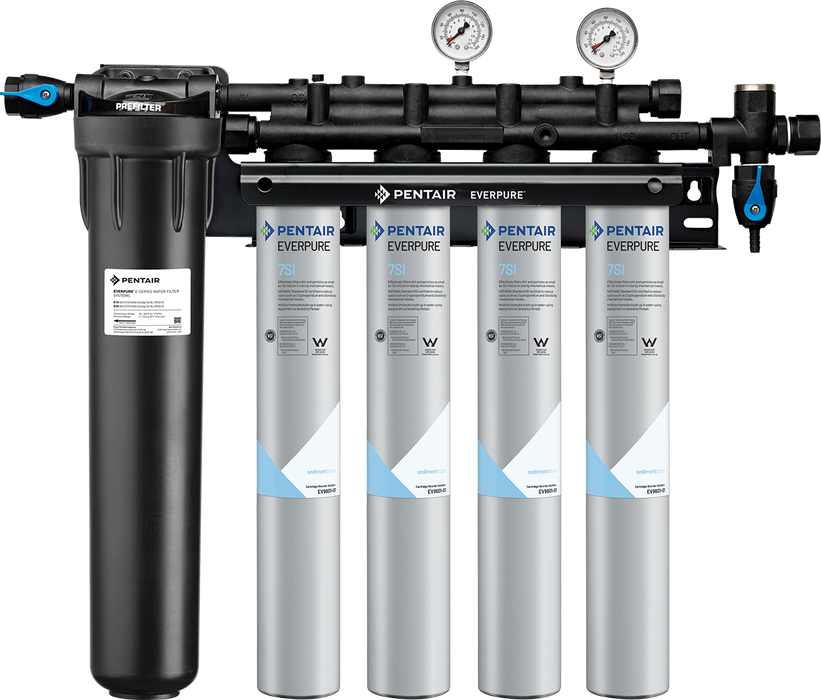

Everpure Insurice Quad PF-7SI (EV932477) Water Filtration System
The Everpure Insurice Quad PF-7SI (EV932477) is a high-capacity filtration system designed specifically for ice machine applications, featuring Fibredyne media technology that reduces sediment down to 0.5 microns while maintaining chlorine levels to prevent slime growth, delivering 100,000 gallons of filtered water at flow rates up to 14 GPM to minimize equipment downtime and ensure premium ice quality.
Performance & Specifications
| Feature | Specification |
|---|---|
| Model Number | Insurice Quad PF-7SI (EV932477) |
| Filtration Capacity | 100,000 gallons |
| Number of Filters | 4 cartridges (3x 7SI + 1x EC210 prefilter) |
| Flow Rate | Maximum 14 GPM (53 LPM) |
| Contaminants Filtered | Sediment (0.5 micron), Cryptosporidium, Giardia, particulates, scale |
Key Features
- ā 0.5 Micron Mechanical Filtration: Effectively captures dirt and particles as small as 0.5 micron using depth filtration and Fibredyne media for superior dirt-holding capability
- ā NSF Certified Cyst Reduction: Certified under NSF/ANSI Standards 42 and 53 to mechanically reduce Cryptosporidium and Giardia cysts for safer ice production
- ā Chlorine Retention Technology: Maintains chlorine and chloramines in supply water to help reduce slime growth in ice machines and bins
- ā Scale Reduction Protection: Reduces scale buildup that can clog distribution lines, malfunction probes, floats, pumps, solenoids and valves while increasing energy consumption
- ā High-Capacity Performance: Rated for cubers up to 1,450 lbs/day and flakers up to 2,200 lbs/day with service flow rates from 3.5 to 14 GPM
- ā Sanitary Cartridge Design: Quick-change cartridges ensure simple, clean replacement without exposing internal filter parts to handling or contamination
FAQ
Q: How often should the cartridges be replaced in the Insurice Quad PF-7SI system?
A: Cartridges should be changed on a regular six-month preventative maintenance program, when the rated capacity is reached, or when flow becomes too slow. The EC210 prefilter cartridge should be inspected periodically and replaced when dirt has penetrated through to the inner core.
Q: What size water line is required for installation of the EV932477?
A: The system requires a 3/4" water line with 3/4" FNPT inlet and outlet connections. Never use a saddle valve for connection, and ensure the system is installed vertically with cartridges hanging down and 2.5" clearance below for easy replacement.
Q: Does this system meet hospital standards for bacteria prevention?
A: Yes, the Everpure 7SI cartridges meet ASHRAE Standard 188P, which is specifically designed to prevent bacteria from entering and/or reproducing in a hospital water system.
What's Included
- Insurice Quad PF manifold system housing
- Three (3) 7SI replacement cartridges (EV9606-01)
- One (1) EC210 prefilter cartridge (EV9534-26)
- Mounting hardware
- Installation instructions
Note: Only use this system with water that is known to be safe. If the water quality is uncertain, ensure it is disinfected before or after filtration.
