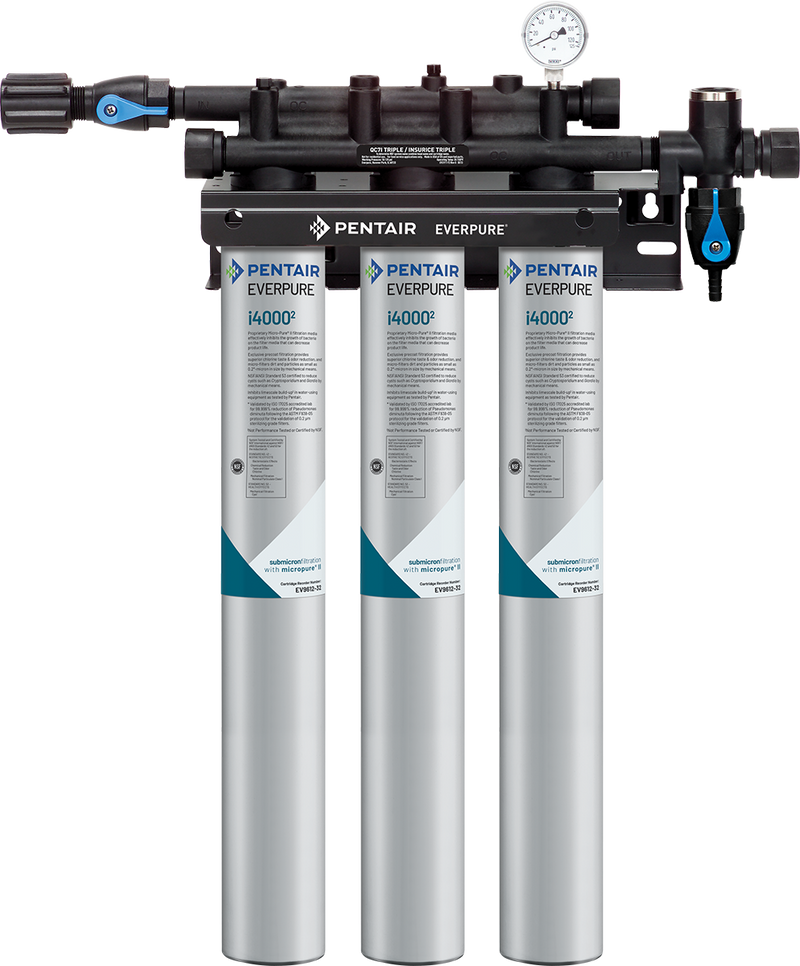

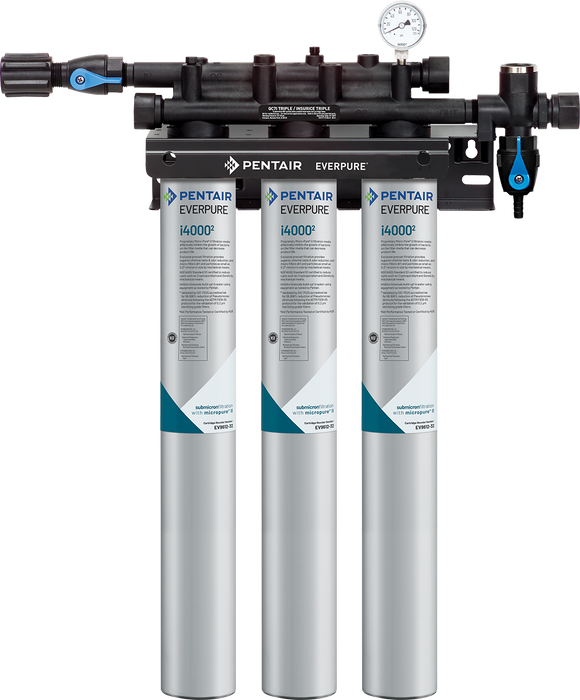

Everpure Insurice Triple-i40002 (EV932503) Ice Machine Water Filtration System
The Pentair Everpure Insurice Triple-i40002 (EV932503) is a high-performance ice machine filtration system designed to deliver consistently clean, fresh-tasting ice while reducing scale buildup and equipment maintenance, featuring triple-cartridge protection with proprietary Micro-Pure II media and 0.2-micron mechanical filtration for superior water quality in high-volume commercial applications.
Performance & Specifications
| Feature | Specification |
|---|---|
| Model Number | Insurice Triple-i40002 (EV932503) |
| Filtration Capacity | 36,000 gallons (136,247 L) |
| Number of Filters | 3 Cartridges (Triple System) |
| Flow Rate | Maximum 5 GPM (18.9 Lpm) |
| Micron Rating | 0.2 microns |
| Contaminants Filtered | Chlorine, chloramines, cysts (Cryptosporidium & Giardia), sediment, scale, particulates |
Key Features
- ✓ Micro-Pure II Filtration Technology: Proprietary media effectively inhibits bacterial growth on filter media, extending product life and maintaining consistent performance
- ✓ Scale Inhibition System: Self-contained scale inhibitor feed reduces mineral buildup in ice machines, distribution lines, and evaporator plates to minimize maintenance downtime
- ✓ Precoat Filtration: Exclusive technology provides superior chlorine taste and odor reduction while mechanically filtering particles as small as 0.2 microns
- ✓ NSF/ANSI Certified: Meets Standards 42 and 53 for aesthetic effects and health effects, including certified cyst reduction of Cryptosporidium and Giardia
- ✓ Quick-Change Design: Sanitary cartridge replacement system allows for easy maintenance without tools, reducing service time and labor costs
- ✓ Integrated Manifold System: Built-in water shutoff valve, flushing valve, and outlet pressure gauge for convenient monitoring and maintenance operations
FAQ
Q: How often should I replace the cartridges in the Insurice Triple-i40002 system?
A: Cartridges should be changed every six (6) months as part of a preventative maintenance program, or sooner if the 36,000-gallon capacity is reached or outlet pressure falls below 10 psi (0.7 bar).
Q: What size water line is required for proper installation of this system?
A: The Insurice Triple-i40002 requires a 3/4" water line with 3/4" MNPT inlet and 3/4" FNPT outlet connections. Never use a saddle valve for connection, and ensure the service flow rate does not exceed 5 GPM.
Q: Can this system be used with any type of ice machine?
A: This system is designed for higher volume, higher flow, higher capacity ice machines. It should be installed vertically with cartridges hanging down, and should not be connected to water-cooled condensers.
What's Included
- Insurice Triple-i40002 system with three (3) filter cartridges
- Integrated manifold with water shutoff valve, flushing valve, and pressure gauge
- Mounting bracket and hardware
Note: Only use this system with water that is known to be safe. If the water quality is uncertain, ensure it is disinfected before or after filtration.
