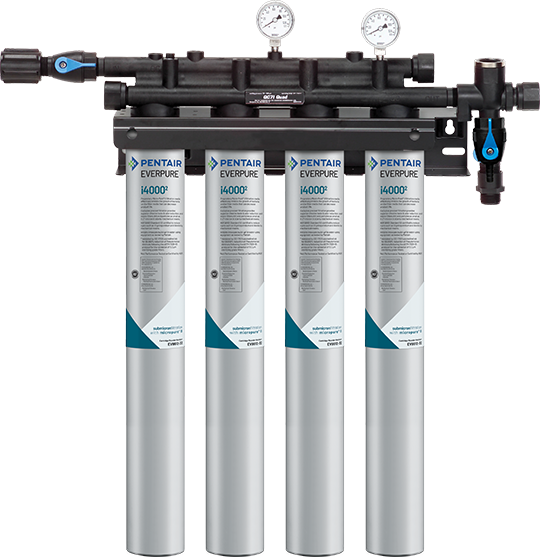

Everpure Insurice Quad-i40002 (EV932504) Water Filtration System
The Insurice Quad-i40002 (EV932504) is a high-capacity ice machine water filtration system featuring four cartridges that deliver 48,000 gallons of filtered water, reduce scale buildup, inhibit bacterial growth with Micro-Pure II media, and provide NSF/ANSI 42 and 53 certified protection against chlorine, cysts, and particles as small as 0.2 microns to ensure consistently clean, fresh-tasting ice.
Performance & Specifications
| Feature | Specification |
|---|---|
| Model Number | Insurice Quad-i40002 (EV932504) |
| Filtration Capacity | 48,000 gallons (181,699.8 L) |
| Number of Filters | 4 Cartridges (EV9612-32) |
| Flow Rate | 6.7 GPM (25.3 Lpm) Maximum |
| Contaminants Filtered | Chlorine, Cysts, Sediment, Particulates (0.2 microns) |
Key Features
- ā Micro-Pure II Media: Proprietary filtration media effectively inhibits bacterial growth on the filter media surface for enhanced water safety
- ā Scale Inhibitor Feed: Self-contained scale inhibitor keeps ice machines functioning at full capacity by reducing mineral buildup on equipment components
- ā Sub-Micron Filtration: Precoat filtration mechanically removes particles as small as 0.2 microns including dirt, sediment, and contaminants
- ā Quick-Change Design: Sanitary cartridge replacement system minimizes equipment downtime and simplifies maintenance procedures
- ā NSF/ANSI Certified: Standard 42 certified for chlorine taste and odor reduction; Standard 53 certified for cyst reduction including Cryptosporidium and Giardia
- ā Integrated Manifold: Features built-in water shutoff valve, flushing valve, and outlet pressure gauge for convenient operation and monitoring
FAQ
Q: How often should the Insurice Quad-i40002 cartridges be replaced?
A: Cartridges should be changed on a regular six-month preventative maintenance schedule or when the rated capacity of 48,000 gallons is reached, whichever comes first. Additionally, replace cartridges when outlet pressure falls below 10 psi.
Q: What size water line is required for proper installation of the EV932504 system?
A: The system requires a 3/4" water line for both inlet and outlet connections. Never use a saddle valve for connection, and ensure the system is installed vertically with cartridges hanging down and 2.5" clearance below for cartridge replacement.
Q: Can this filtration system be connected to a water-cooled condenser?
A: No, the Insurice Quad-i40002 should not be connected to water-cooled condensers. It is specifically designed for ice machine applications to reduce scale buildup, improve water quality, and extend equipment life.
What's Included
- Insurice Quad-i40002 System with integrated manifold (EV9325-04)
- Four (4) i40002 replacement cartridges pre-installed (EV9612-32)
- Manifold with water shutoff valve, flushing valve, and outlet pressure gauge
- Mounting hardware and installation instructions
Note: Only use this system with water that is known to be safe. If the water quality is uncertain, ensure it is disinfected before or after filtration.
