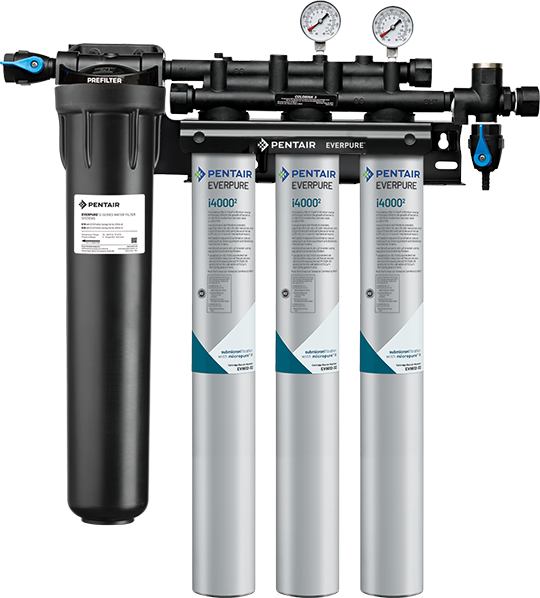

Everpure Insurice Triple PF-i40002 (EV932523) Water Filtration System
The Pentair Everpure Insurice Triple PF-i40002 (EV932523) delivers cleaner, fresher ice through advanced triple-stage filtration with an integrated 20" prefilter, effectively reducing scale buildup, chlorine taste and odor, and contaminants as small as 0.2 microns to extend ice machine equipment life and ensure consistently high-quality ice production.
Performance & Specifications
| Feature | Specification |
|---|---|
| Model Number | Insurice Triple PF-i40002 |
| Filtration Capacity | 36,000 gallons (136,274 L) |
| Number of Filters | 3 (Triple filtration with prefilter) |
| Flow Rate | Maximum 5.0 GPM (18.9 Lpm) |
| Micron Rating | 0.2 microns |
| Contaminants Filtered | Chlorine, Cysts (Cryptosporidium & Giardia), Sediment, Dirt, Particulates, Scale |
Key Features
- ā Advanced Triple Filtration: Three-stage system with integrated EC210 prefilter provides comprehensive protection for high-volume ice machines
- ā Micro-Pure II Media Technology: Proprietary filtration media effectively inhibits bacterial growth on filter media, extending product life and maintaining water quality
- ā Scale Reduction: Reduces scale buildup and clogging in distribution lines, evaporator plates, and pumps to minimize ice machine problems and maintenance
- ā NSF/ANSI Certified: Certified under Standards 42 and 53 for chlorine taste and odor reduction, and mechanical reduction of cysts including Cryptosporidium and Giardia
- ā Sanitary Quick-Change Design: Easy cartridge replacement system with manifold featuring water shutoff, flushing valve, and outlet pressure gauge for convenient maintenance
- ā 0.2 Micron Filtration: Precoat filtration mechanically filters dirt and particles as small as 0.2 microns, validated to 99.999% reduction of Pseudomonas diminuta
FAQ
Q: How often should I replace the filter cartridges in the Insurice Triple PF-i40002 system?
A: Replace cartridges on a regular six-month preventative maintenance program, or when the 36,000-gallon capacity is reached, or when outlet pressure falls below 10 psi. Always flush the system for five minutes at full flow after cartridge changes.
Q: What size water line is required for installation of this system?
A: The system requires a 3/4" water line with 3/4" FNPT inlet and outlet connections. Never use a saddle valve for connection, and ensure the service flow rate does not exceed 5 GPM (18.9 Lpm).
Q: Can this system be used with water-cooled condensers or any ice machine configuration?
A: Do not connect this system to water-cooled condensers. It is designed specifically for ice machine water supply applications and should be installed vertically with cartridges hanging down and 2.5" clearance below for easy cartridge replacement.
What's Included
- Insurice Triple PF-i40002 manifold system
- i40002 replacement cartridge (EV9612-32)
- EC210 20" prefilter cartridge (EV9534-26)
- Outlet pressure gauge
- Water shutoff and flushing valve
Note: Only use this system with water that is known to be safe. If the water quality is uncertain, ensure it is disinfected before or after filtration.
