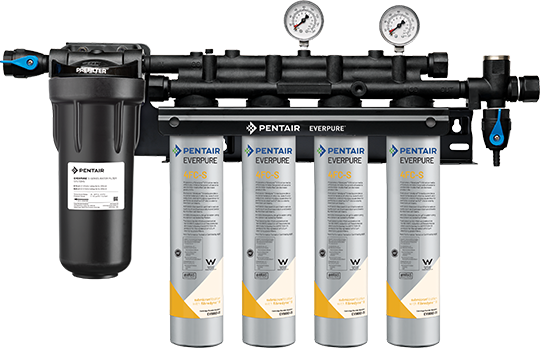

Everpure Insurice Quad PF-4FC-S (EV932744) Water Filtration System
The Everpure EV932744 Insurice Quad PF-4FC-S System is a high-capacity water filtration solution designed specifically for commercial ice machine applications, featuring quad-cartridge configuration with proprietary Fibredyne II media that delivers 60,000 gallons of quality filtered water while reducing scale buildup, chlorine taste and odor, and mechanical filtration down to 0.2 microns to minimize equipment maintenance and extend ice machine life.
Performance & Specifications
| Feature | Specification |
|---|---|
| Model Number | Insurice Quad PF-4FC-S (EV932744) |
| Filtration Capacity | 60,000 Gallons (227,124 Liters) |
| Number of Filters | 4 Cartridges (Quad Configuration with Prefilter) |
| Flow Rate | Maximum 10.0 GPM (37.85 LPM) |
| Micron Rating | 0.2 Microns |
| Contaminants Filtered | Chlorine, Cysts (Cryptosporidium & Giardia), Dirt, Particles, Scale, Sediment |
Key Features
- ✓ High-Capacity Filtration: 60,000-gallon capacity ideal for demanding commercial ice machine operations with maximum 10 GPM flow rate
- ✓ Fibredyne II Media Technology: Proprietary bacteriostatic media inhibits bacterial growth on filter surface while reducing chlorine taste and odor
- ✓ 0.2 Micron Filtration: NSF/ANSI Standard 53 certified to mechanically reduce cysts like Cryptosporidium and Giardia, plus micro-filters particles down to 0.2 microns
- ✓ Scale Inhibition System: Integrated scale inhibitor reduces mineral buildup and corrosion to minimize ice machine maintenance and extend equipment lifespan
- ✓ EC110 Prefilter Protection: 10-inch prefilter cartridge reduces dirt and sediment before reaching main cartridges, extending overall system life
- ✓ Convenient Manifold Design: Features integrated water shut-off valve, flushing valve, and outlet pressure gauge for easy monitoring and maintenance
FAQ
Q: How often should I replace the cartridges in the EV932744 system?
A: Replace the 4FC-S cartridges when the flow rate becomes inconveniently slow or before the 60,000-gallon rated capacity is reached. It is recommended to replace cartridges at least once per year, and the EC110 prefilter should be inspected periodically and replaced when dirt has penetrated through to the inner core.
Q: What size water line is required for proper installation of the Insurice Quad system?
A: The EV932744 requires a 3/4-inch water line for optimal performance. Never use a saddle valve for connection, and do not connect the system to a water-cooled condenser. The system should be installed vertically with cartridges hanging down and at least 2.5 inches of clearance below for easy replacement.
Q: What is the operating pressure range for this filtration system?
A: The Insurice Quad PF-4FC-S operates within a pressure range of 10-125 PSI (0.7-8.6 bar) non-shock, with a temperature range of 35-100°F (2-38°C). The system should be replaced when outlet pressure falls below 10 PSI to maintain proper filtration performance.
What's Included
- Insurice Quad PF-4FC-S complete manifold system with mounting bracket
- Four (4) 4FC-S replacement cartridges pre-installed
- One (1) EC110 prefilter cartridge
- Integrated water shut-off valve, flushing valve, and pressure gauge
- Installation and operation guide
Note: Only use this system with water that is known to be safe. If the water quality is uncertain, ensure it is disinfected before or after filtration.
