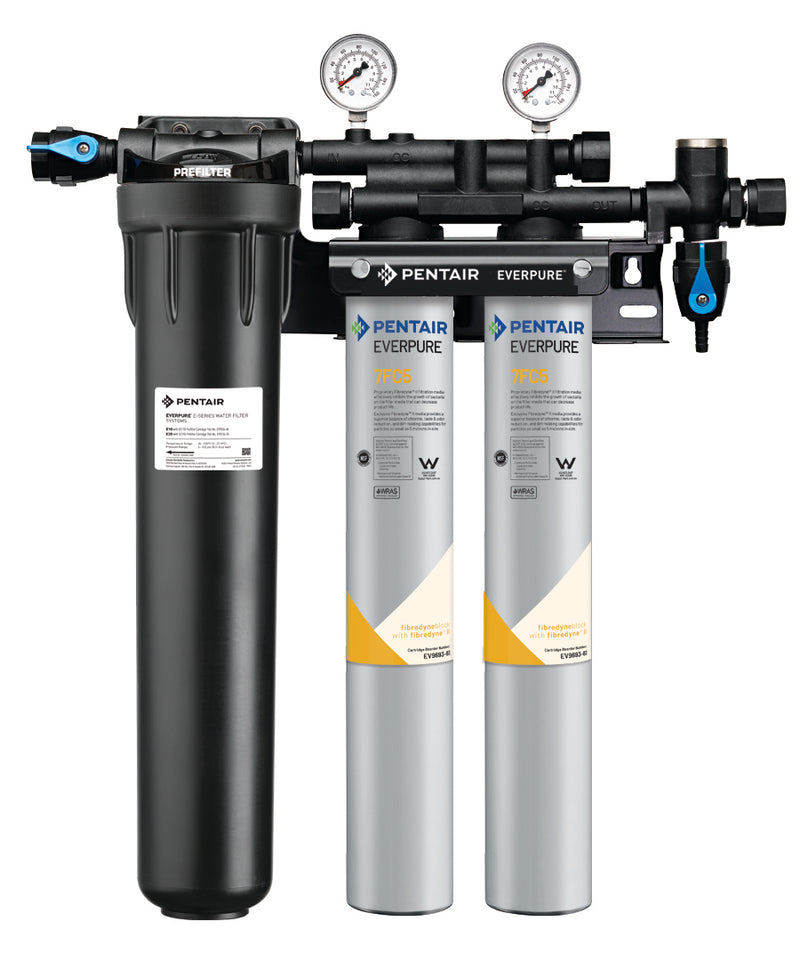

Everpure QC7I PF Twin 7FC5 (EV932782) Water Filtration System
The Everpure QC7I PF Twin 7FC5 is a high-performance water filtration system featuring Fibredyne™ II bacteriostatic media that delivers exceptional chlorine taste and odor reduction with 5-micron particulate filtration, providing 50,000 gallons of capacity at 5 gpm flow rate for fountain beverages and cold beverage applications while protecting equipment and ensuring consistently great-tasting results.
Performance & Specifications
| Feature | Specification |
|---|---|
| Model Number | QC7I PF Twin 7FC5 (EV932782) |
| Filtration Capacity | 50,000 gallons (189,271 liters) |
| Number of Filters | 2 Primary Filters + 1 Prefilter |
| Flow Rate | 5 gpm (18.93 lpm) |
| Contaminants Filtered | Chlorine taste & odor, particulates down to 5 microns, sediment |
Key Features
- ✓ Fibredyne™ II Bacteriostatic Media: Proprietary media inhibits bacterial growth within the filter to prevent fouling and maintain optimal performance throughout the cartridge life
- ✓ Integrated Prefilter Protection: Built-in prefilter inside sump provides additional defense against excessive dirt and sediment in high-turbidity water supplies
- ✓ Quick-Change Cartridge Design: Tool-free QC cartridges enable simple, sanitary replacements with minimal downtime and no mess during service
- ✓ Built-in Service Controls: Inlet shutoff valve, flush valve, and dual pressure gauges simplify maintenance and provide real-time monitoring of system performance
- ✓ NSF/ANSI Standard 42 Certified: Independently certified for bacteriostatic effects, chlorine taste and odor reduction, and Particulate Class III filtration
- ✓ High-Capacity Twin Configuration: Dual 7FC5 cartridges deliver 50,000 gallons of filtered water with balanced 5 micron filtration for equipment protection
FAQ
Q: How often should I replace the filter cartridges in the QC7I PF Twin 7FC5 system?
A: It is recommended to replace filter cartridges every six months on a regular scheduled program, or when the rated capacity of 50,000 gallons is reached, or if water pressure or flow to equipment becomes inadequate. Always replace cartridges at least once per year regardless of usage.
Q: What are the replacement cartridge part numbers for this system?
A: The QC7I PF Twin 7FC5 requires two (2) 7FC5 primary filters (part number EV9693-61) and one (1) EC210 prefilter (part number EV9534-26) for complete system replacement.
Q: What water pressure and temperature conditions are suitable for the EV932782 system?
A: The system operates within a pressure range of 10-125 psi (0.7-8.6 bar), though a pressure reducing valve is recommended when pressure exceeds 85 psi. Water temperature must be between 35-100°F (2-38°C), and the system should not be installed where it could be exposed to freezing temperatures.
What's Included
- QC7I PF Twin 7FC5 filtration system head with inlet shutoff valve, flush valve, and pressure gauges
- Two (2) 7FC5 primary filter cartridges pre-installed
- One (1) EC210 prefilter cartridge pre-installed in sump
- Installation, operation, and maintenance guide
- Mounting bracket and hardware
Note: Only use this system with water that is known to be safe. If the water quality is uncertain, ensure it is disinfected before or after filtration.
