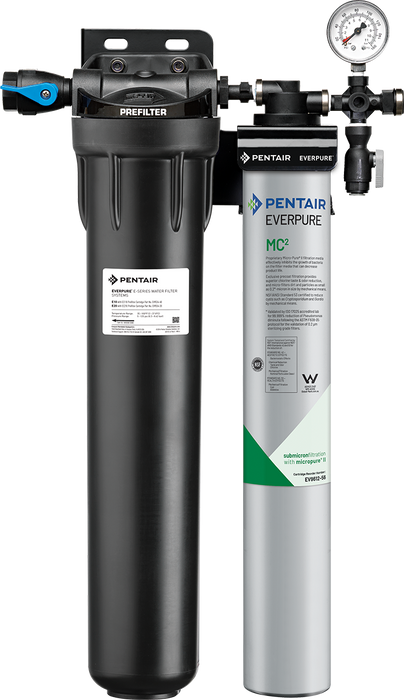

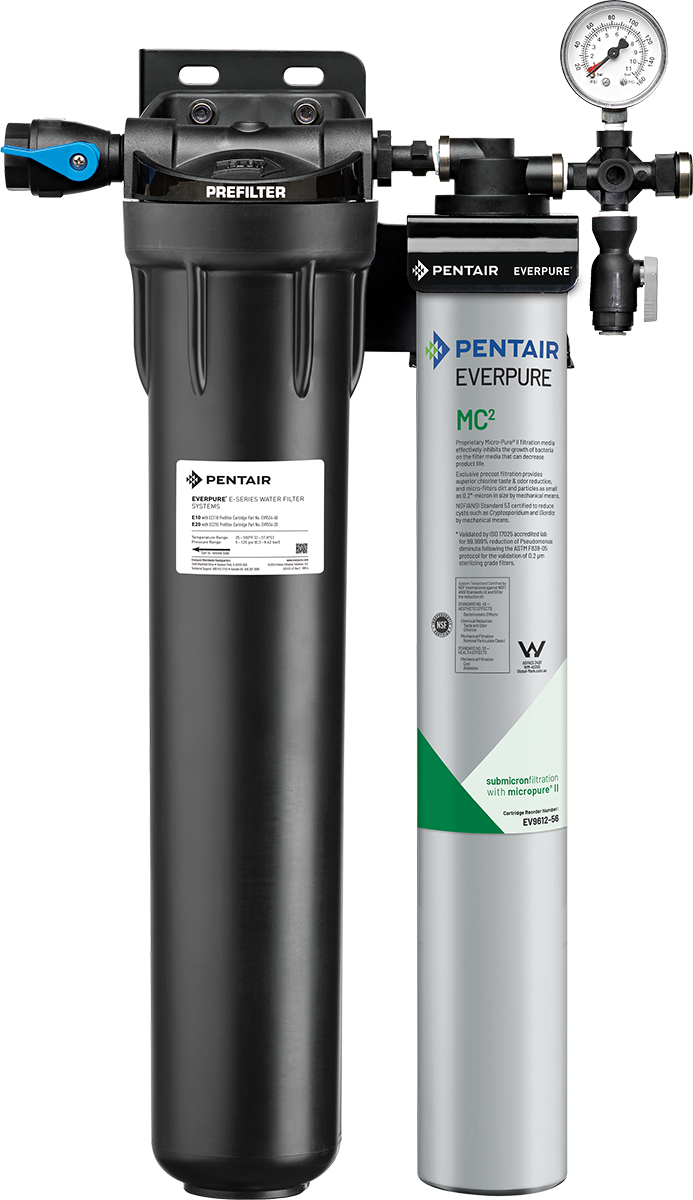

Everpure Coldrink 1-MC2 (EV932801) Water Filtration System
The Everpure Coldrink 1-MC2 delivers premium quality water for fountain beverage applications, featuring exclusive precoat filtration technology that reduces chlorine taste and odor while mechanically filtering particles as small as 0.2 microns to protect dispensing equipment and ensure consistently great-tasting beverages.
Performance & Specifications
| Feature | Specification |
|---|---|
| Model Number | Coldrink 1-MC2 (EV932801) |
| Filtration Capacity | 9,000 gallons (35,069 L) |
| Flow Rate | Maximum 1.67 gpm (6.3 Lpm) |
| Micron Rating | 0.2 microns |
| Contaminants Filtered | Chlorine taste & odor, particulates (Class I), Cryptosporidium, Giardia cysts |
Key Features
- ā Exclusive Precoat Filtration: Provides superior chlorine taste and odor reduction while mechanically filtering dirt and particles as small as 0.2 microns
- ā Micro-Pure II Media: Proprietary filtration media effectively inhibits bacterial growth on the filter, extending product life and maintaining water quality
- ā NSF/ANSI Certified: Tested and certified under Standards 42 and 53 for aesthetic and health effects, including cyst reduction
- ā Equipment Protection: 20" prefilter reduces dirt and particles, protecting seals, pumps, tubing, and small orifices from clogging and corrosion
- ā Sanitary Cartridge Replacement: Quick-change design ensures internal filter parts are never exposed to handling or contamination during replacement
- ā Fountain Beverage Optimization: Improves taste of fountain beverages and helps retain carbonation for dispensers using up to 25 tanks of syrup per month
FAQ
Q: How often should I replace the Coldrink 1-MC2 cartridge?
A: Change cartridges every six months as part of a preventative maintenance program, when the 9,000-gallon capacity is reached, or when water pressure falls below 10 psi. The EC210 prefilter should be inspected periodically and replaced when dirt has penetrated through to the inner core.
Q: What size water line is required for installation?
A: The Coldrink 1-MC2 requires a 3/4" water line with 3/4" inlet and outlet connections. Never use a saddle valve for connection. The system should be installed vertically with cartridges hanging down and at least 2.5" clearance below for easy cartridge replacement.
Q: Is this system suitable for all fountain beverage applications?
A: The Coldrink 1-MC2 is designed for fountain beverage dispensers using up to 25 tanks of syrup or bag-in-box per month and single-carbonator dispensers. It operates effectively at temperatures between 35-100Ā°F and pressures from 10-125 psi (non-shock).
What's Included
- Coldrink 1-MC2 system with plate-mounted bracket (EV9328-01)
- MC2 replacement cartridge (EV9612-56)
- EC210 prefilter cartridge (EV9534-26)
- Installation and operation instructions
Note: Only use this system with water that is known to be safe. If the water quality is uncertain, ensure it is disinfected before or after filtration.
