Everpure High Flow CSR Triple-MC2 System (EV932806)

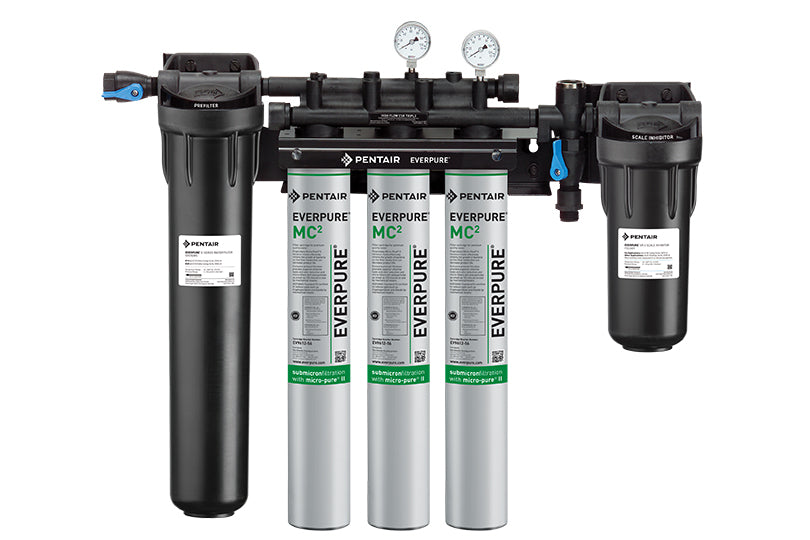

The Everpure High Flow CSR Triple-MC2 System is a premium commercial water filtration solution designed for high-demand foodservice applications, delivering consistent quality water for fountains, ice machines, coffee brewers, and espresso machines while featuring proprietary Micro-Pure II media that filters particles down to 0.2 microns and inhibits scale buildup to extend equipment life.
Performance & Specifications
| Feature | Specification |
|---|---|
| Model Number | EV932806 |
| Filtration Capacity | 27,000 gallons (102,206 L) |
| Number of Filters | Triple cartridge system |
| Flow Rate | Maximum 5 GPM (18.9 LPM) |
| Contaminants Filtered | Chlorine, cysts, particulates, scale, bacteria on media |
Key Features
- ✓ 0.2 Micron Filtration: Exclusive precoat filtration technology mechanically filters dirt and particles as small as 0.2 microns, validated by ISO 17025 accredited lab for 99.999% reduction of Pseudomonas diminuta
- ✓ NSF/ANSI Certified: Certified under Standards 42 and 53 for chlorine taste and odor reduction, particulate filtration, and cyst reduction (Cryptosporidium and Giardia)
- ✓ Scale Inhibition Technology: Integrated SR-X feeder with SS-IMF cartridge (EV9799-32) uses Hydroblend compound to minimize scale buildup in ice machines and coffee brewers
- ✓ Micro-Pure II Media: Proprietary Pentair Everpure filtration media effectively inhibits bacterial growth on filter media, extending product life and maintaining system performance
- ✓ Sanitary Cartridge Design: Quick-change cartridge system ensures simple, clean replacements without exposing internal filter parts to handling or contamination
- ✓ Multi-Application Versatility: One integrated system provides premium quality water to high-flow fountain dispensers, coffee makers, espresso machines, hot chocolate dispensers, and ice machines simultaneously
FAQ
Q: How often should the cartridges be replaced in the High Flow CSR Triple-MC2 System?
A: Cartridges should be changed on a regular six-month preventative maintenance program, when the 27,000-gallon capacity is reached, or when pressure falls below 10 psi. The SS-IMF cartridge should be replaced before the Hydroblend compound is completely used up, and the prefilter should be changed when excessively dirty.
Q: What type of equipment can be connected to this system?
A: The system is designed for combination applications including fountain dispensers (connected to the outlet before the SR-X system), coffee brewers, espresso machines, hot chocolate dispensers, and ice machines (connected after the SR-X feeder using a tee connection), making it ideal for busy commercial foodservice environments.
Q: What is the difference between this system and models with LPA designation?
A: The EV932806 is the standard High Flow CSR Triple-MC2 system, while the EV932805 includes LPA (Low Pressure Alarm) functionality. Both systems offer the same filtration capacity, flow rate, and performance specifications, with the LPA model providing additional pressure monitoring capabilities.
What's Included
- High Flow CSR Triple-MC2 system head and mounting bracket
- MC2 replacement cartridge (EV9612-56)
- EC210 prefilter cartridge (EV9534-26)
- SS-IMF scale inhibition cartridge (EV9799-32)
- SR-X feeder system integrated
- Installation and operation documentation
Note: Only use this system with water that is known to be safe. If the water quality is uncertain, ensure it is disinfected before or after filtration.
