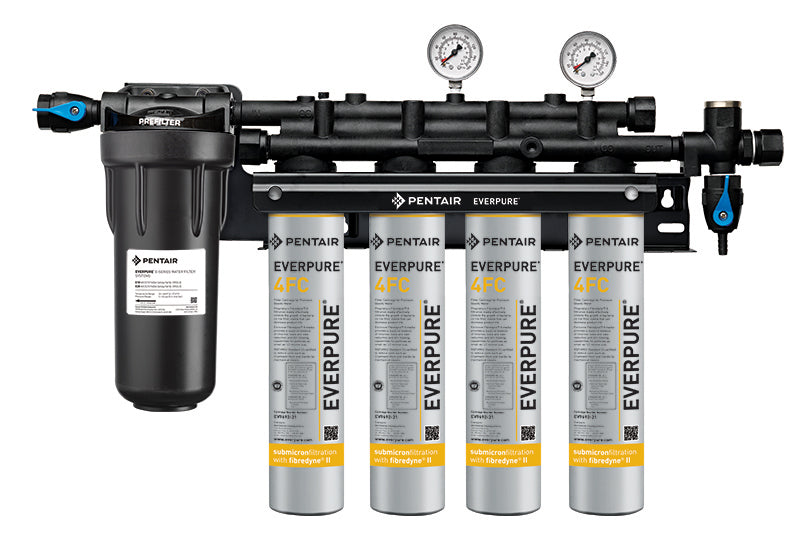

Everpure Coldrink 4-4FC (EV932844) Water Filtration System
The Everpure Coldrink 4-4FC (EV932844) is a high-capacity water filtration system designed for fountain beverage applications, delivering premium quality water with exceptional flow rates up to 10 GPM and featuring Fibredyne™ submicron filtration technology that ensures consistent beverage taste while protecting equipment from sediment and contaminants.
Performance & Specifications
| Feature | Specification |
|---|---|
| Model Number | Coldrink 4-4FC (EV932844) |
| Filtration Capacity | 60,000 Gallons (227,124 Liters) |
| Number of Filters | 4FC Main Cartridge + EC110 Prefilter |
| Flow Rate | Maximum 10.0 GPM (37.85 LPM) |
| Contaminants Filtered | Chlorine, Cysts (Cryptosporidium & Giardia), Particulates, Taste & Odor |
Key Features
- ✓ Fibredyne™ Submicron Technology: Advanced carbon block filtration provides superior chlorine taste and odor reduction while micro-filtering particles as small as 0.5 micron
- ✓ High Flow Capacity: Delivers up to 10 GPM service flow rate, making it ideal for high-volume fountain beverage operations
- ✓ NSF/ANSI Certified: Meets Standards 42 and 53 for aesthetic and health effects, including certified cyst reduction and turbidity removal
- ✓ Equipment Protection: Safeguards drink system seals, pumps, tubing and small orifices from clogging, corrosion and abrasive wear
- ✓ Bacteriostatic Media: Proprietary Fibredyne II filtration media effectively inhibits bacterial growth on filter media that can decrease product life
- ✓ Integrated Manifold System: Plate-mounted design features water shut-off valve, flushing valve, outlet pressure gauge, and 10" prefilter for complete filtration solution
FAQ
Q: How often should the Everpure EV932844 cartridges be replaced?
A: Replace cartridges when flow rate becomes inconveniently slow, when rated capacity of 60,000 gallons is reached, when pressure falls below 10 psi, or at least once per year—whichever comes first. The EC110 prefilter should be inspected periodically and replaced when dirt has penetrated to the inner core.
Q: What type of water line connection does the Coldrink 4-4FC system require?
A: The system requires 3/4" water line connections for both inlet and outlet. Never use a saddle valve for connection, and ensure pressure requirements of 10-125 psi are met. The system must be installed vertically with cartridges hanging down and at least 2.5" clearance below for cartridge replacement.
Q: What makes the EV932844 suitable for fountain beverage applications?
A: The Coldrink 4-4FC improves the taste of fountain beverages and helps retain carbonation by removing chlorine and particulates. Its balanced cartridge design optimizes performance across varying water qualities, while the high 10 GPM flow rate supports busy commercial fountain operations without compromising water quality.
What's Included
- Coldrink 4-4FC manifold system with mounting plate
- 4FC replacement cartridge (EV9692-21)
- EC110 prefilter cartridge
- Integrated pressure gauge and control valves
- Installation and operation documentation
Note: Only use this system with water that is known to be safe. If the water quality is uncertain, ensure it is disinfected before or after filtration.
