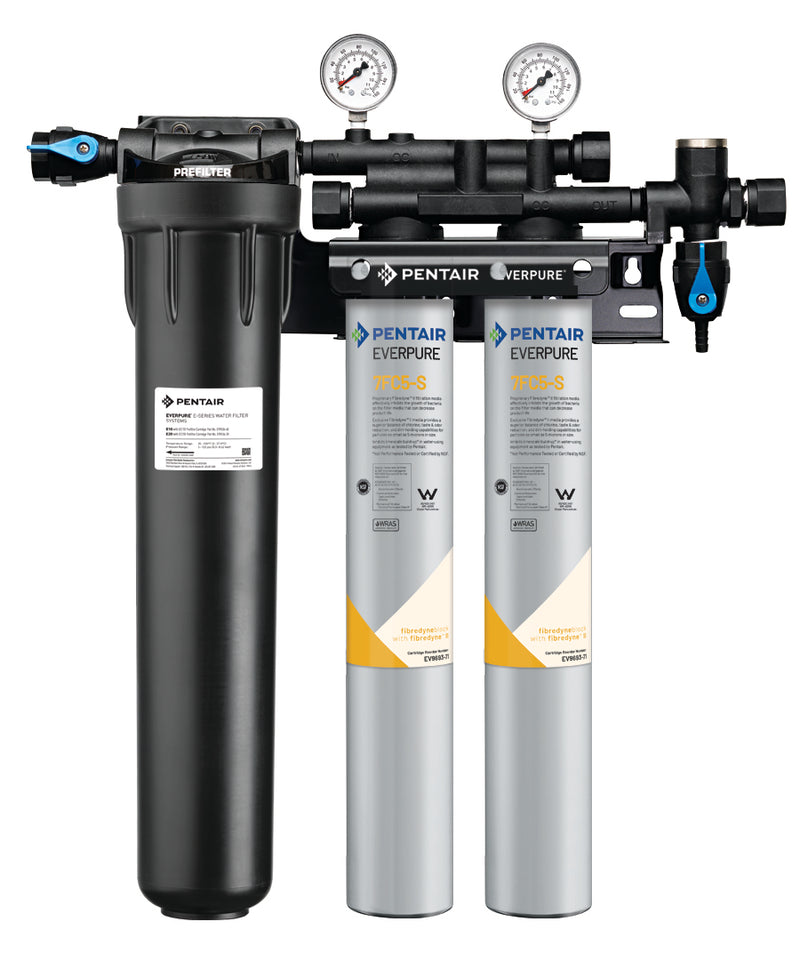

Everpure QC7I PF Twin 7FC5-S (EV932862) Water Filtration System
The Everpure QC7I PF Twin 7FC5-S is a high-capacity commercial water filtration system designed for coffee and ice applications, featuring exclusive Fibredyne II bacteriostatic media with integrated scale inhibitor that delivers 50,000 gallons of filtered water at 5 gpm while reducing chlorine taste and odor down to 5 microns, all certified under NSF/ANSI Standard 42.
Performance & Specifications
| Feature | Specification |
|---|---|
| Model Number | QC7I PF Twin 7FC5-S |
| Filtration Capacity | 50,000 gallons (189,271 liters) |
| Number of Filters | 2 Primary Filters + 1 Prefilter |
| Flow Rate | 5.0 gpm (18.93 lpm) |
| Contaminants Filtered | Chlorine taste & odor, particulates down to 5 microns, scale formation |
Key Features
- ✓ Fibredyne II Bacteriostatic Media: Inhibits bacterial growth within the filter to prevent media fouling and maintain optimal performance throughout the cartridge life
- ✓ Integrated Scale Inhibitor: Minimizes scale formation on equipment surfaces to ensure reliable, efficient operation and reduce maintenance requirements
- ✓ 5 Micron Filtration: Provides mechanical filtration down to 5 microns for lasting, balanced performance even with high turbidity water supplies
- ✓ Integrated Prefilter Protection: EC210 prefilter inside sump provides additional protection against excessive dirt and sediment before water reaches primary filters
- ✓ Quick-Change Cartridge Design: Tool-free cartridge replacement makes servicing simple, fast, and sanitary with minimal downtime
- ✓ NSF/ANSI Standard 42 Certified: Independently certified for bacteriostatic effects, chlorine taste and odor reduction, and particulate Class III filtration
FAQ
Q: How often should the filter cartridges be replaced on the QC7I PF Twin 7FC5-S system?
A: Filter cartridges should be replaced every six months on a regular scheduled program, when the 50,000-gallon capacity is reached, or if water pressure or flow becomes inadequate. Always replace cartridges at least once per year regardless of usage.
Q: What applications is the EV932862 system designed for?
A: The QC7I PF Twin 7FC5-S is specifically designed for commercial coffee and ice applications, including ice machines and coffee brewers, where high-quality water is essential for consistent beverage taste and equipment protection.
Q: What are the operating pressure and temperature requirements for this system?
A: The system operates at pressures between 10-125 psi (with a pressure reducing valve recommended above 85 psi) and water temperatures from 35-100°F (2-38°C). It should not be installed where freezing temperatures could occur.
What's Included
- QC7I PF Twin 7FC5-S filter head with inlet shutoff valve, flush valve, and pressure gauges
- 2 x 7FC5-S primary filter cartridges (EV9693-71)
- 1 x EC210 prefilter cartridge (EV9534-26)
- Installation, operation, and maintenance guide
Note: Only use this system with water that is known to be safe. If the water quality is uncertain, ensure it is disinfected before or after filtration.
