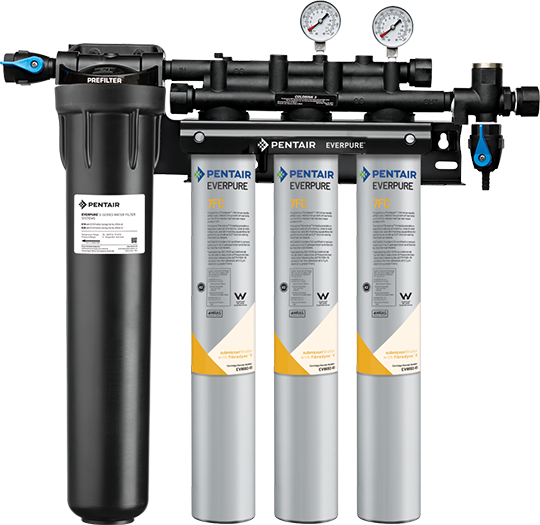

Everpure Coldrink 3-7FC (EV932873) High-Performance Water Filtration System
The Everpure Coldrink 3-7FC System (EV932873) delivers premium quality water for high-flow fountain beverage applications, featuring Fibredyne™ II submicron carbon block technology that provides superior chlorine taste and odor reduction while filtering particles as small as 0.2 microns, ensuring exceptional beverage quality and protecting equipment from clogging and corrosion.
Performance & Specifications
| Feature | Specification |
|---|---|
| Model Number | EV932873 - Coldrink 3-7FC |
| Filtration Capacity | 75,000 gallons (283,906 liters) |
| Flow Rate | Maximum 7.5 gpm (28.4 Lpm) |
| Micron Rating | 0.2 micron |
| Contaminants Filtered | Chlorine taste & odor, particulates, cysts (Cryptosporidium & Giardia), turbidity |
Key Features
- ✓ Fibredyne™ II Technology: Exclusive submicron carbon block media provides 99.999% reduction of Pseudomonas diminuta and effectively inhibits bacterial growth on filter media
- ✓ NSF/ANSI Certified: Certified to Standards 42 and 53 for aesthetic effects and health-related contaminant reduction including cyst reduction
- ✓ High-Flow Performance: Delivers up to 7.5 gpm service flow rate with 75,000-gallon capacity, ideal for busy fountain beverage operations
- ✓ Equipment Protection: Protects drink system seals, pumps, tubing and small orifices from clogging, corrosion and abrasive wear
- ✓ Sanitary Cartridge Design: Quick-change cartridge replacement is simple and clean; internal filter parts never exposed to handling or contamination
- ✓ Integrated Manifold System: Features water shut-off valve, flushing valve, outlet pressure gauge, and 20" EC210 prefilter for comprehensive filtration
FAQ
Q: How often should I replace the filter cartridges in the EV932873 system?
A: Replace the 7FC cartridge when flow rate becomes inconveniently slow, before rated capacity of 75,000 gallons is reached, or at least once per year. The EC210 prefilter should be inspected periodically and replaced when dirt has penetrated through to the inner core.
Q: What water pressure requirements does the Coldrink 3-7FC system need?
A: The system requires water pressure between 10-125 psi (0.7-8.6 bar), non-shock, and operates with water temperatures from 35-100°F (2-38°C). Change cartridges when pressure falls below 10 psi.
Q: What contaminants does the 0.2 micron filtration remove?
A: The system mechanically filters particles as small as 0.2 microns, reducing cysts such as Cryptosporidium and Giardia, chlorine taste and odor, turbidity, and dirt particles, while protecting beverage quality and equipment performance.
What's Included
- Coldrink 3-7FC System with plate-mounted manifold
- 7FC replacement cartridge (EV9692-61)
- EC210 prefilter cartridge (EV9534-26)
- Integrated shut-off valve, flushing valve, and outlet pressure gauge
- Installation and operation documentation
Note: Only use this system with water that is known to be safe. If the water quality is uncertain, ensure it is disinfected before or after filtration.
