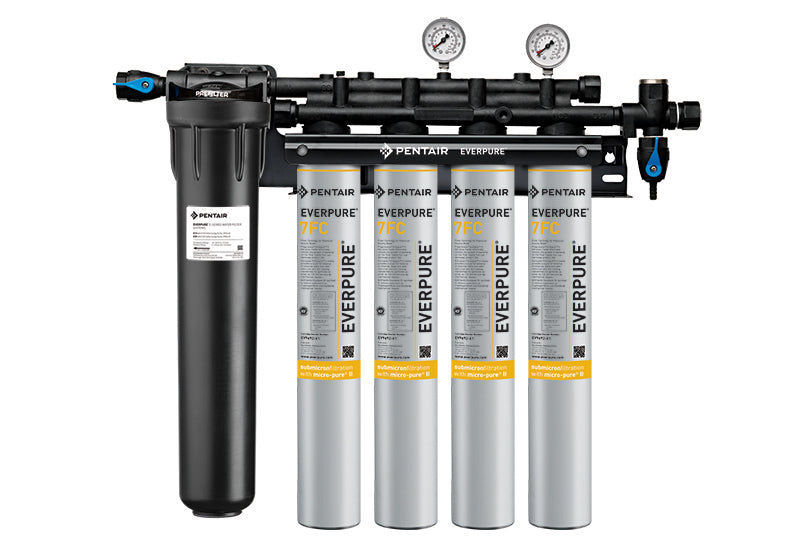

Everpure Coldrink 4-7FC (EV932874) High-Performance Fountain Beverage Water Filtration System
The Everpure Coldrink 4-7FC (EV932874) is a high-capacity water filtration system engineered for demanding fountain beverage applications, delivering 100,000 gallons of consistently pure water at flow rates up to 10 gpm while utilizing advanced Fibredyne™ II bacteriostatic media to reduce chlorine, cysts, and particles as small as 0.2 microns for exceptional beverage quality and equipment protection.
Performance & Specifications
| Feature | Specification |
|---|---|
| Model Number | EV932874 Coldrink 4-7FC |
| Filtration Capacity | 100,000 gallons (378,541 liters) |
| Number of Filters | 2 cartridges (7FC + EC210 prefilter) |
| Flow Rate | 10 gpm (37.85 lpm) maximum |
| Micron Rating | 0.2 micron (7FC), 20" prefilter (EC210) |
| Contaminants Filtered | Chlorine taste & odor, Cryptosporidium, Giardia cysts, dirt, particles, sediment |
Key Features
- ✓ Fibredyne™ II Bacteriostatic Media: Proprietary filtration media inhibits bacterial growth on filter surfaces while reducing chlorine taste and odor for superior beverage consistency
- ✓ High-Flow Performance: Delivers maximum flow rate of 10 gpm to support high-volume fountain beverage operations without pressure loss
- ✓ NSF/ANSI Certified: Meets NSF Standards 42 and 53 for mechanical filtration, cyst reduction (Cryptosporidium and Giardia), chlorine reduction, and taste/odor improvement
- ✓ Dual-Stage Filtration: 20-inch EC210 prefilter removes larger sediment and particles before water reaches the 7FC cartridge for extended filter life
- ✓ Plate-Mounted Design: Wall-mount system with integrated manifold featuring water shutoff valve, flushing valve, and outlet pressure gauge for easy installation and maintenance
- ✓ Quick-Change Cartridge System: Sanitary, tool-free cartridge replacement with vertical mounting design allows for simple filter changes without system shutdown
FAQ
Q: How often should I replace the cartridges in the Coldrink 4-7FC system?
A: Replace cartridges on a regular six-month preventative maintenance schedule or when the rated capacity of 100,000 gallons is reached. Also change cartridges when outlet pressure falls below 10 psi. The EC210 prefilter should be inspected periodically and replaced when dirt has penetrated through to the inner core.
Q: What size water line is required for proper installation of the EV932874?
A: The system requires a 3/4-inch water line for both inlet and outlet connections. Never use a saddle valve for connection, and ensure the installation location can support the full operating weight of 55 lbs (24.95 kg).
Q: Can this system filter out Cryptosporidium and Giardia cysts?
A: Yes, the Coldrink 4-7FC is NSF/ANSI Standard 53 certified to reduce cysts such as Cryptosporidium and Giardia by mechanical means. The system's 0.2 micron filtration has been validated by an ISO 17025 accredited lab for 99.999% reduction of Pseudomonas diminuta.
What's Included
- Coldrink 4-7FC complete system with plate-mounted manifold (EV9328-74)
- 7FC replacement cartridge (EV9692-61)
- EC210 prefilter cartridge (EV9534-26)
- Integrated water shutoff valve, flushing valve, and outlet pressure gauge
- Mounting hardware for vertical installation
Note: Only use this system with water that is known to be safe. If the water quality is uncertain, ensure it is disinfected before or after filtration.
