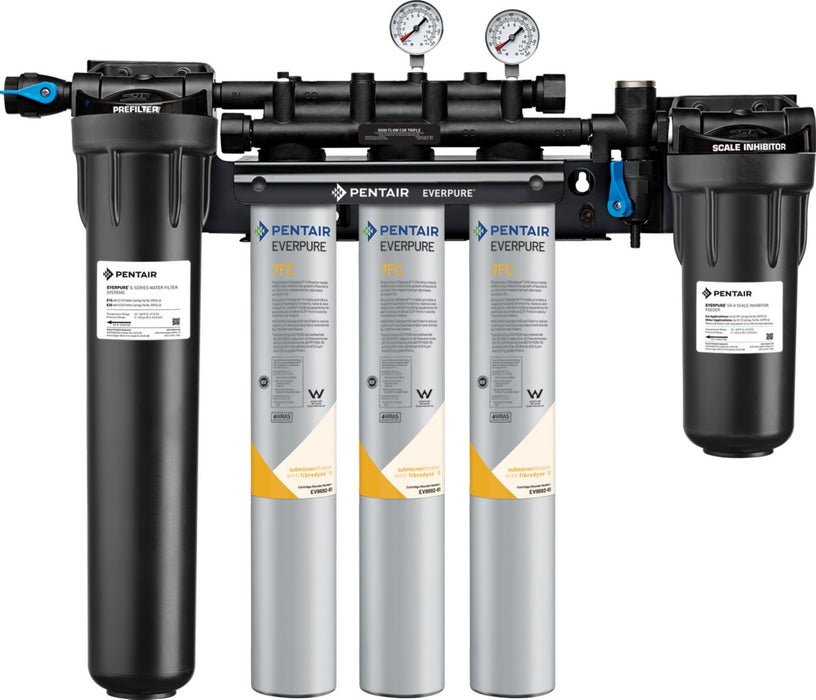

Everpure High Flow CSR Triple-7FC (EV932973) Water Filtration System
The Everpure High Flow CSR Triple-7FC (EV932973) is a premium water filtration system designed for high-volume commercial applications, delivering consistent quality water for fountain machines, coffee brewers, and ice machines with an impressive 75,000-gallon capacity and 7.5 gpm flow rate, featuring advanced Fibredyne II submicron technology and integrated scale inhibition.
Performance & Specifications
| Feature | Specification |
|---|---|
| Model Number | High Flow CSR Triple-7FC (EV932973) |
| Filtration Capacity | 75,000 gallons (283,906 liters) |
| Number of Filters | 3 cartridges (7FC, EC210, SS-XL ScaleStick) |
| Flow Rate | Maximum 7.5 gpm (28.4 lpm) |
| Micron Rating | 0.2 micron |
| Contaminants Filtered | Chlorine taste & odor, particulates, cysts (Cryptosporidium and Giardia), turbidity |
Key Features
- ✓ Fibredyne II Media Technology: Proprietary filtration media effectively inhibits bacterial growth on the filter while providing superior chlorine taste and odor reduction with 0.2 micron mechanical filtration
- ✓ NSF/ANSI Certified: Tested and certified against NSF/ANSI Standards 42 and 53 for aesthetic effects and health effects including cyst reduction (Cryptosporidium and Giardia)
- ✓ Integrated Scale Inhibition: SR-X Feeder with SS-XL ScaleStick cartridge prevents scale buildup in ice machines and coffee brewers, extending equipment lifespan
- ✓ High-Capacity Prefiltration: EC210 prefilter cartridge removes sediment and particulates for optimal performance and extended cartridge life
- ✓ Sanitary Cartridge Replacement: Quick-change design ensures internal filter parts are never exposed to handling or contamination during replacement
- ✓ Combination Application Design: Dedicated outlets for fountain equipment (before SR-X) and coffee/ice machines (after SR-X) for optimized water treatment per application
FAQ
Q: What is the difference between the fountain outlet and the coffee/ice machine outlet on this system?
A: The fountain outlet is located before the SR-X scale inhibitor system and provides filtered water without scale inhibition treatment. The coffee/ice machine outlet is positioned after the SR-X Feeder, providing both filtration and scale inhibition to protect equipment from mineral buildup.
Q: How often should the replacement cartridges be changed on the EV932973?
A: The 7FC cartridge should be replaced when flow becomes inconveniently slow, at rated capacity (75,000 gallons), or at least once per year. The EC210 prefilter should be changed when excessively dirty, and the SS-XL ScaleStick cartridge should be replaced before the Hydroblend compound is completely used up.
Q: What water pressure is required for optimal operation of the High Flow CSR Triple-7FC system?
A: The system requires water pressure between 10-125 psi (0.7-8.6 bar), non-shock, and operates with water temperatures ranging from 35-100°F (2-38°C). Minimum pressure of 10 psi is needed to maintain proper flow rate.
What's Included
- High Flow CSR Triple-7FC System mounting head
- 7FC filter cartridge (EV9692-61)
- EC210 prefilter cartridge (EV9534-26)
- SS-XL ScaleStick cartridge (EV9799-42)
- Installation and operation instructions
Note: Only use this system with water that is known to be safe. If the water quality is uncertain, ensure it is disinfected before or after filtration.
