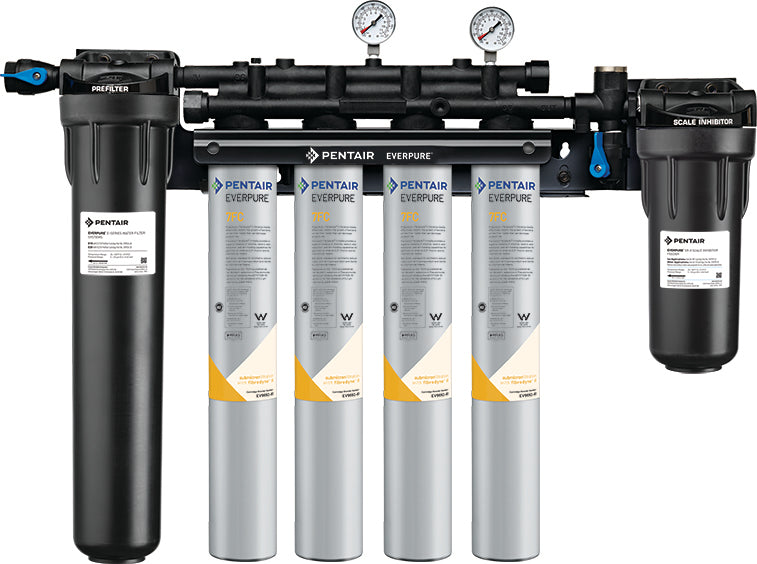

Everpure High Flow CSR Quad-7FC System (EV932974)
The Everpure High Flow CSR Quad-7FC System is a premium water filtration solution designed for high-volume commercial foodservice applications, delivering 100,000 gallons of filtered water at 10 gpm through advanced Fibredyne II submicron technology that removes contaminants, reduces scale buildup, and ensures consistent beverage quality across multiple equipment installations including fountain machines, coffee brewers, and ice makers.
Performance & Specifications
| Feature | Specification |
|---|---|
| Model Number | High Flow CSR Quad-7FC (EV932974) |
| Filtration Capacity | 100,000 gallons (378,541 liters) |
| Number of Filters | Quad configuration with 7FC cartridges |
| Flow Rate | Maximum 10.0 gpm (37.8 lpm) |
| Micron Rating | 0.2 micron |
| Contaminants Filtered | Chlorine taste & odor, sediment, cysts (Cryptosporidium & Giardia), particulates |
Key Features
- ✓ Fibredyne II Technology: Proprietary submicron filtration media that inhibits bacterial growth and provides superior chlorine taste and odor reduction while mechanically filtering particles as small as 0.2 microns
- ✓ Integrated Scale Inhibition: SR-X Feeder with SS-XL ScaleStick cartridge prevents scale buildup in ice machines and coffee brewers, extending equipment life and maintaining optimal performance
- ✓ NSF/ANSI Certified: Tested and certified against Standards 42 and 53 for aesthetic effects and health effects, including mechanical reduction of cysts, turbidity, and particulates
- ✓ Sanitary Cartridge Replacement: Quick-change design ensures internal filter parts are never exposed to handling or contamination during replacement, maintaining hygienic operation
- ✓ EC210 Prefiltration: Integrated prefilter removes excessive dirt and sediment before main filtration, optimizing flow rate and extending the life of primary filter cartridges
- ✓ High-Volume Performance: Extended-life 7FC cartridges with balanced chemical and mechanical reduction deliver consistent water quality across varying water conditions for up to 100,000 gallons
FAQ
Q: How often should the filter cartridges be replaced on the EV932974 system?
A: Replace the 7FC cartridge when flow rate becomes inconveniently slow, when rated capacity of 100,000 gallons is reached, or at least once per year. The EC210 prefilter should be changed when excessively dirty, and the SS-XL ScaleStick cartridge should be replaced before the Hydroblend compound is completely used up.
Q: What applications is the High Flow CSR Quad-7FC system designed for?
A: The EV932974 is specifically designed for high-volume, multiple-equipment installations including combination applications with fountain beverage dispensers, cold beverage equipment, coffee brewers, and ice machines. The system allows fountain equipment to connect before the SR-X feeder while coffee and ice machines connect after it using a tee configuration.
Q: What are the installation and pressure requirements for this system?
A: The system requires 3/4" water line connections, operates at 10-125 psi (non-shock) with water temperatures between 35-100°F (2-38°C), and needs no electrical connection. Install vertically with cartridges hanging down and allow 2½" clearance below for easy cartridge replacement. Overall dimensions are 25.59" H x 34" W x 6.75" D.
What's Included
- High Flow CSR Quad-7FC System manifold and mounting bracket
- Four (4) 7FC extended-life filter cartridges (EV9692-61)
- EC210 prefilter cartridge (EV9534-26)
- SR-X Feeder with SS-XL ScaleStick cartridge (EV9799-42)
- 3/4" inlet and outlet connections
Note: Only use this system with water that is known to be safe. If the water quality is uncertain, ensure it is disinfected before or after filtration.
