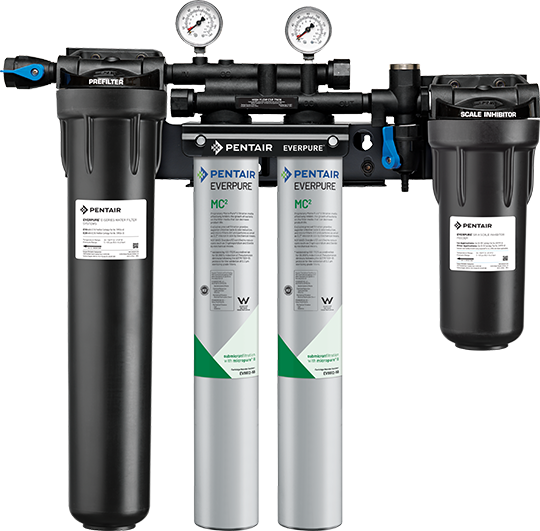

Everpure High Flow CSR Twin-MC2 (EV933042) Water Filtration System
The Everpure High Flow CSR Twin-MC2 delivers premium quality water for combination applications including coffee brewers, espresso machines, fountain beverages, and ice machines, featuring exclusive precoat filtration technology that reduces contaminants down to 0.2 microns while inhibiting scale buildup and extending equipment life.
Performance & Specifications
| Feature | Specification |
|---|---|
| Model Number | EV933042 |
| Filtration Capacity | 18,000 gallons (68,137 L) |
| Number of Filters | Twin Configuration (2 cartridges) |
| Flow Rate | Maximum 3.34 GPM (12.6 LPM) |
| Contaminants Filtered | Chlorine, Chloramines, Cysts, Particulates, Sediment |
Key Features
- ✓ 0.2 Micron Filtration: Exclusive precoat filtration technology removes particles as small as 0.2 microns by mechanical means for superior water quality
- ✓ NSF Certified Performance: NSF/ANSI Standards 42 and 53 certified for reduction of chlorine taste & odor, cysts (Cryptosporidium and Giardia), and particulates
- ✓ Scale Inhibition Technology: Integrated SR-X feeder with SS-IMF cartridge prevents scale buildup in ice machines and coffee brewers, protecting valuable equipment
- ✓ MicroPure II Media: Proprietary Pentair Everpure filtration media effectively inhibits bacterial growth on filter media, maximizing product life
- ✓ Sanitary Quick-Change Design: Simple cartridge replacement without exposure to internal filter parts, ensuring clean and contamination-free maintenance
- ✓ Multi-Application Capability: One system serves multiple equipment types with separate fountain outlet and ice machine/coffee brewer connections
FAQ
Q: How often should the cartridges be replaced on the High Flow CSR Twin-MC2?
A: Cartridges should be changed on a regular six-month preventative maintenance program, when the 18,000-gallon capacity is reached, or when pressure falls below 10 psi (0.7 bar), whichever comes first.
Q: What replacement cartridges are needed for the EV933042 system?
A: The system uses MC2 Replacement Cartridge (EV9612-56), EC210 Prefilter Cartridge (EV9534-26), and SS-IMF Cartridge (EV9799-32) for complete filtration and scale inhibition.
Q: Can this system handle multiple pieces of foodservice equipment simultaneously?
A: Yes, the High Flow CSR Twin-MC2 is specifically designed for combination applications, with dedicated outlets for fountain equipment and separate connections for ice machines and coffee brewers using a tee configuration.
What's Included
- High Flow CSR Twin-MC2 System Head
- MC2 Filter Cartridge
- EC210 Prefilter Cartridge
- SS-IMF Scale Inhibitor Cartridge
- Mounting Hardware
Note: Only use this system with water that is known to be safe. If the water quality is uncertain, ensure it is disinfected before or after filtration.
