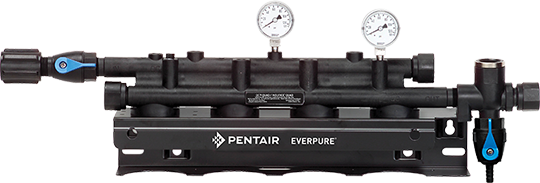

Everpure QC7I Quad Parallel Filter Head (EV933611)
The Everpure QC7I Quad Parallel Filter Head (EV933611) is a commercial-grade filtration system designed for high-volume foodservice applications, featuring built-in pressure gauges, shut-off valves, and a modular design that allows four filter cartridges to operate in parallel for maximum flow capacity and operational efficiency.
Performance & Specifications
| Feature | Specification |
|---|---|
| Model Number | QC7I Quad Parallel Head |
| Number of Filters | 4 Filter Positions |
| Filtration Capacity | Varies by cartridge used |
| Inlet Connection | 3/4" MNPT |
| Outlet Connection | 3/4" FNPT |
Key Features
- ✓ Built-In Pressure Gauges: Monitor inlet and outlet water pressure to ensure proper flow and system performance
- ✓ Integrated Shut-Off & Flushing Valves: Makes cartridge change-outs quick, easy, and mess-free without system shutdown
- ✓ Parallel Plumbing Design: Four cartridges operate simultaneously for increased flow capacity and extended service life
- ✓ Modular Box Bracket System: Allows future retrofitting of add-on components without complete system disassembly
- ✓ Commercial-Grade Construction: Engineered with corrosion-resistant hardware for durability, strength, and longevity in demanding environments
- ✓ NSF Certified Components: All wetted parts have passed NSF extraction tests for safety and quality assurance
FAQ
Q: What types of Everpure cartridges are compatible with the QC7I Quad Parallel Head?
A: The EV933611 is designed exclusively for Pentair Everpure replacement cartridges. It accommodates any standard Everpure filter cartridge with the secure nesting feature for a durable fit.
Q: How often should I change the filter cartridges in this system?
A: Cartridges should be changed on a regular six-month preventative maintenance schedule, when rated capacity is reached, or when flow becomes too slow. Always flush cartridges at installation and change-out.
Q: What clearance is required for installation and cartridge replacement?
A: Install the unit vertically with cartridges hanging down, and allow at least 2.5 inches (6.35 cm) of clearance below the cartridges for easy replacement without removing the entire head assembly.
What's Included
- QC7I Quad Parallel Filter Head (EV933611)
- Mounting box bracket and installation screws
- Built-in pressure gauges (inlet and outlet)
- Integrated shut-off and flushing valves
Note: Only use this system with water that is known to be safe. If the water quality is uncertain, ensure it is disinfected before or after filtration.
